CDA FW223 - Fitting Decor Door Brackets; Fitting Decor Door Base Fixings

10
fig. 12
Installation

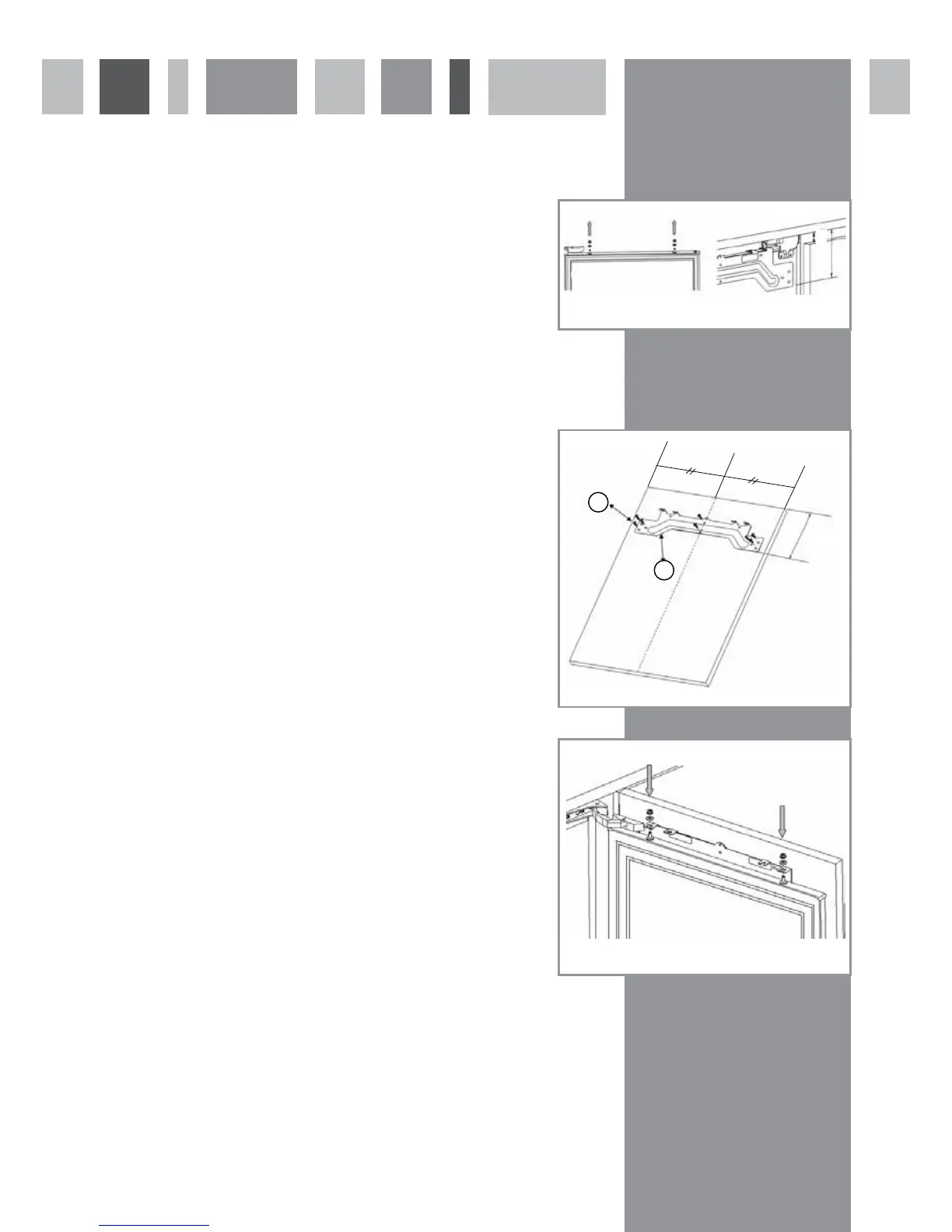

Fig. 10 - Fitting the decor door bracket
Unscrew and remove the nuts and washers from the appliance door. Place
fixing bracket on the appliance door by inserting the holes to adjustment
bolts.
Dimension B= Measure from the underside surface of kitchen unit to the
bottom of fixing bracket.
Dimension C= Measure from the underside surface of kitchen unit to the
top of next unit door.
Fig. 11 - Fitting the decor door bracket
Substract C from B and put the fixing bracket (2) in place using this
measurement for vertical position and place to the centre for horizontal
position. Secure the fixing bracket (2) using screws(1).
Fig. 12 - Fitting the decor door
Place the decor door onto the appliance door by inserting adjustment bolts
into the slots on the fixing bracket. Locate the washers and screw the nuts
onto the adjustment bolts.
fig. 10
fig. 11
2
1
B-C
C
B
