Mounting the Fascia
Door
• Position the appliance within the unit.
Ensure that there is a gap of 3 to 4mm
between the non-hinged side and the
cabinet wall.
• Locate the slider in the bracket and
fix the slider to the fascia door 20 to
22mm from the edge of the fascia
as shown in figure 8, ensuring that
the slider is positioned centrally
and horizontally within the bracket.
Tighten securely by hand.
• Fill the gap on the non-hinged side
with the seal strip provided, as shown
in figure 9.
20 mm
door gasket
x4

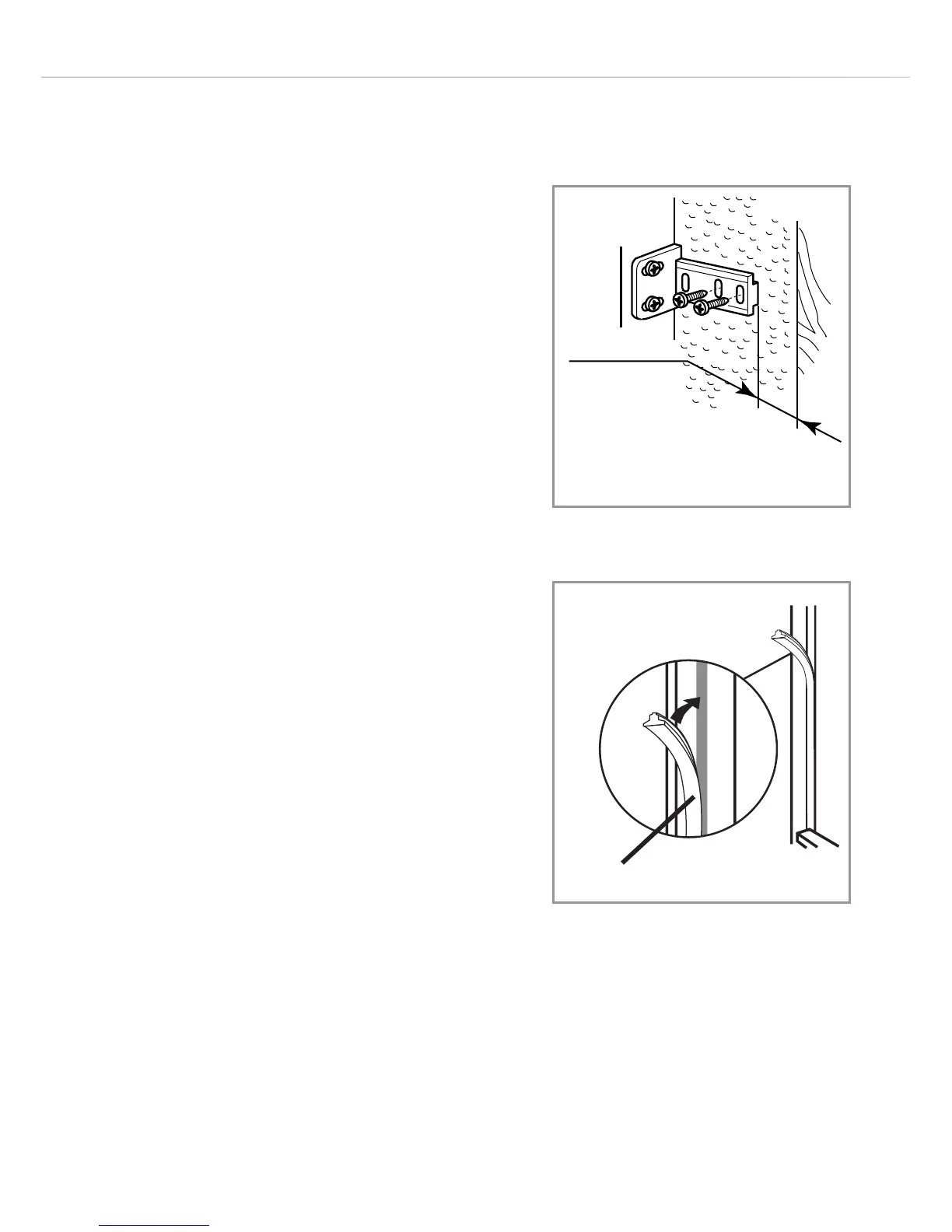

Fig. 8
Fig. 9
