Control Panel
A: Dispenser selection key H: Filter change light
B: Ice maker on/o key I: Ice maker on light
C: Freezer temperatrure key J: Super cool light
D: Fridge temperatrure key K: Super freeze light
E: Function selector key L: Holiday mode light
F: OK key M: Key lock light
G: Dispenser lights
NOTE:
The display dims automatically 30 seconds after the last key was
touched. It is necessary to touch any key briefly to re-activate the
display before attempting any adjustments.

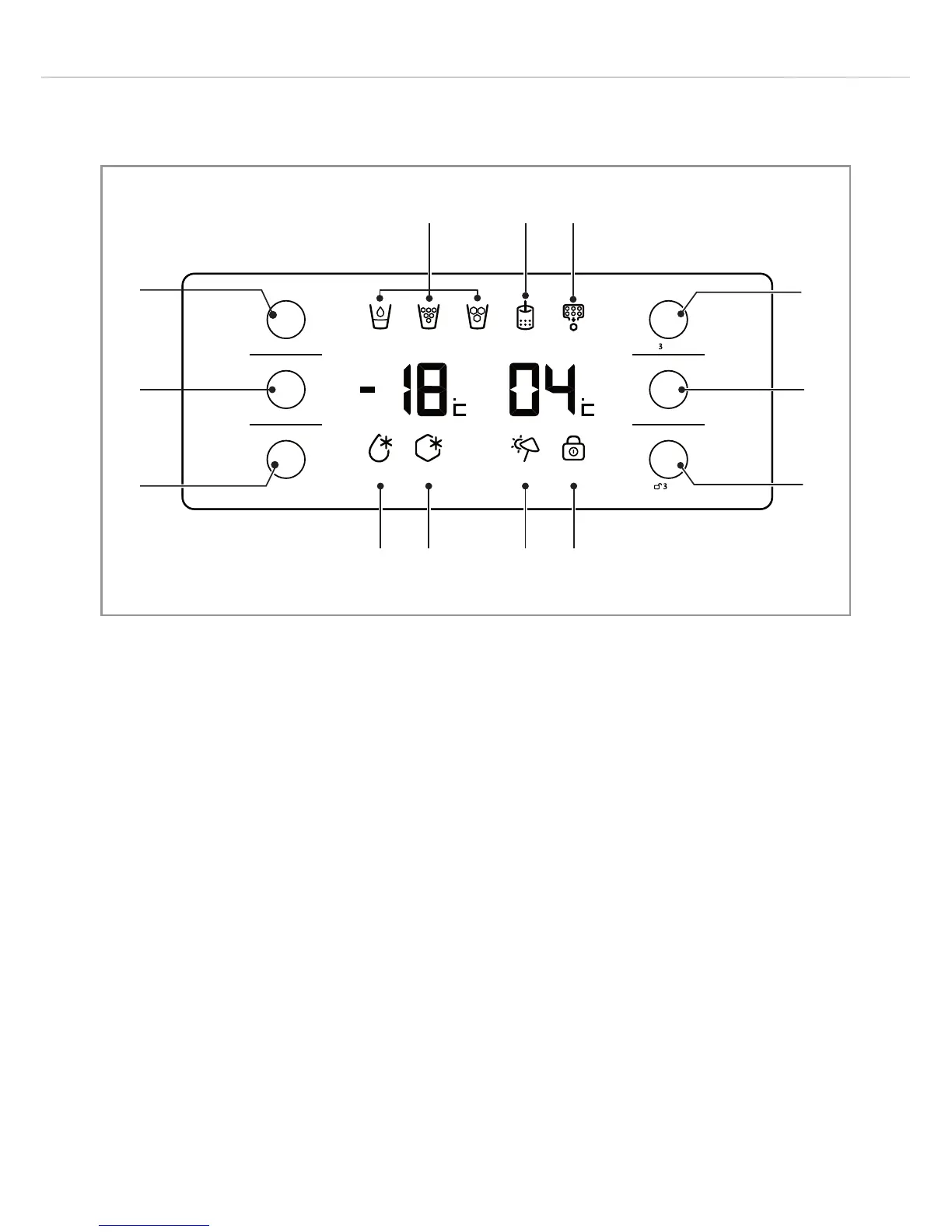

Fig. 2
21
AB
CD
E
F
Frz.
Temp
Sec.
Sec.
Func.
Set
Ref.
Temp
OK
Disp
-enser
Ice
On/Off
S-Cool S-Frz. Holiday Lock
Water Ice onCubedCrushed Filter
G HI
J K LM
