7
Using Your Grill Drawer
Use
• Select the required cooking time.
• Select the required temperature.
• Close the drawer gently.
Ensure that you turn both controls to the o position when cooking is
complete.
Setting the Temperature
• Turn the temperature control to the required position.
• Do not force the temperature control past the maximum position, to
prevent damage to the thermostat.
• The symbols do not indicate absolute temperature values, but
recommendations for control positions are shown in figure 1.
When the drawer is closed, the power indicator is
visible on the front of the drawer to indicate the
drawer is switched on.

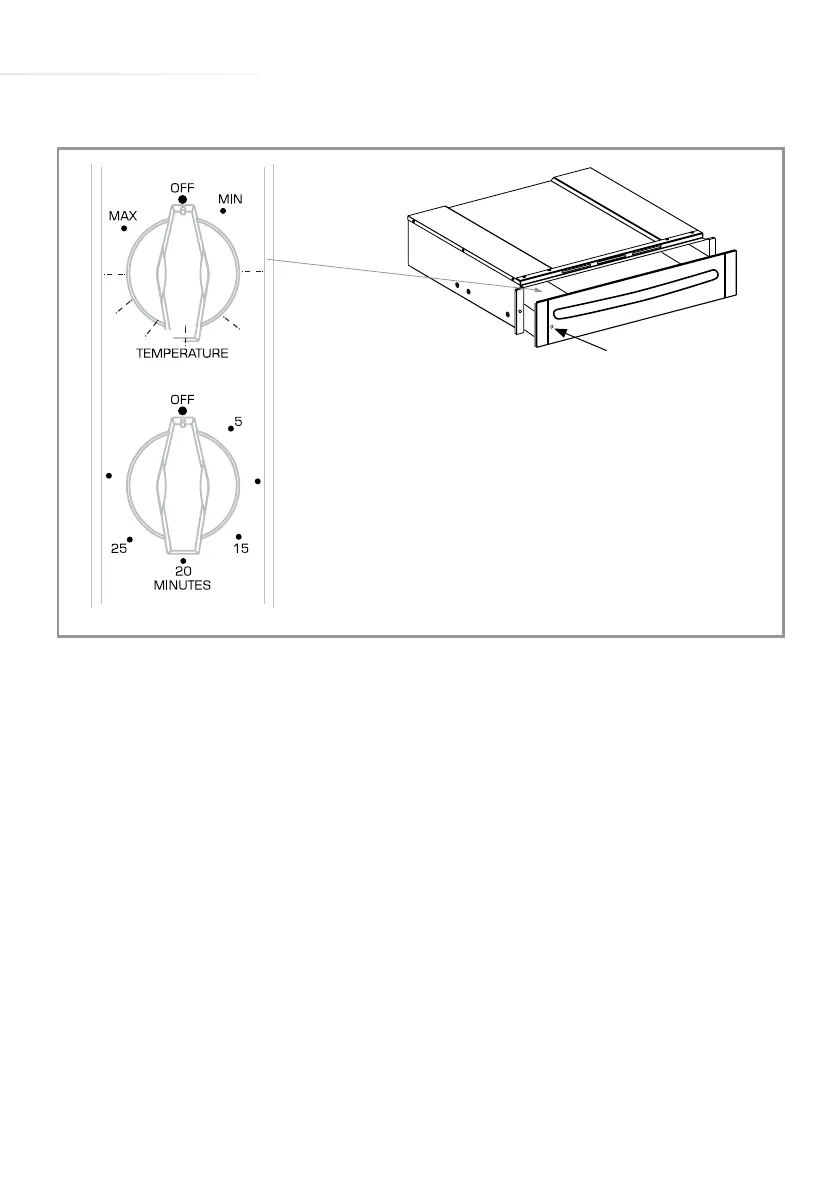

fig. 1
Medium
Temperature control
Timer control
Power indicator
A
B
G
F
E
D
C
A Plate warming
B Keeping food warm
C Low
D Medium
E Medium high
F High
G Full Power
