FUNCTIONAL DESCRIPTION AND SPECIFICATIONS CHAPTER 2
SURETEST BASE UNIT
Front Panel

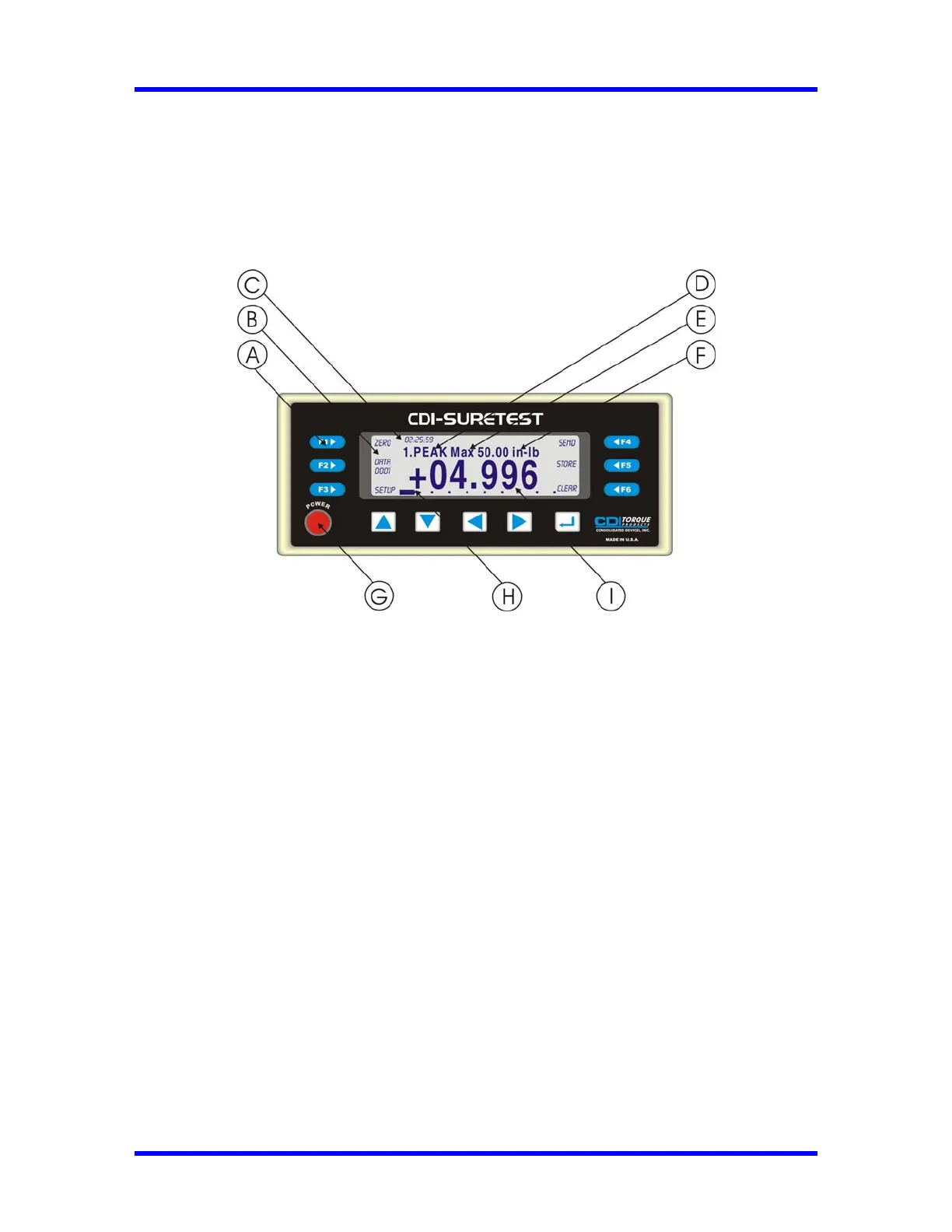

Figure 2-2 SURETEST Front Panel
A- Membrane Function ( F1, F2, F3, F4, F5, F6 ), soft keys,
and Cursor/Selection (Up (↑), Down (↓),Left (←), Right (→) and Enter (↵) Keys.
B- Soft Key Menu: Zero, # Data Stored, Setup, Send, Store, Clear, Escape, Format.
C- Real Time Clock. HH:MM:SS
D- Modes: Track, Peak Hold, First Peak and Power tools.
E- Maximum Range of Transducer.
F- Engineering Units : Nm, dNm, Ncm, mkg, cmkg, ft. lb., in. lb., in.oz
G- Power: On/Off
H- Bar Graph: Each dot represents 10% of transducer full scale.
I- Torque Reading: Full 5-digit reading Plus Sign (for direction)
