CDI 400 Series - Page 4

4. To enable RGB on the BT9106/7/8 you must connect pin 14 of the chip through a 1k ohm
resistor. This is provided for you on the RGB board. Before connecting this wire, you will need
to remove the current resistor to ground. This resistor is found on the bottom of the main board.

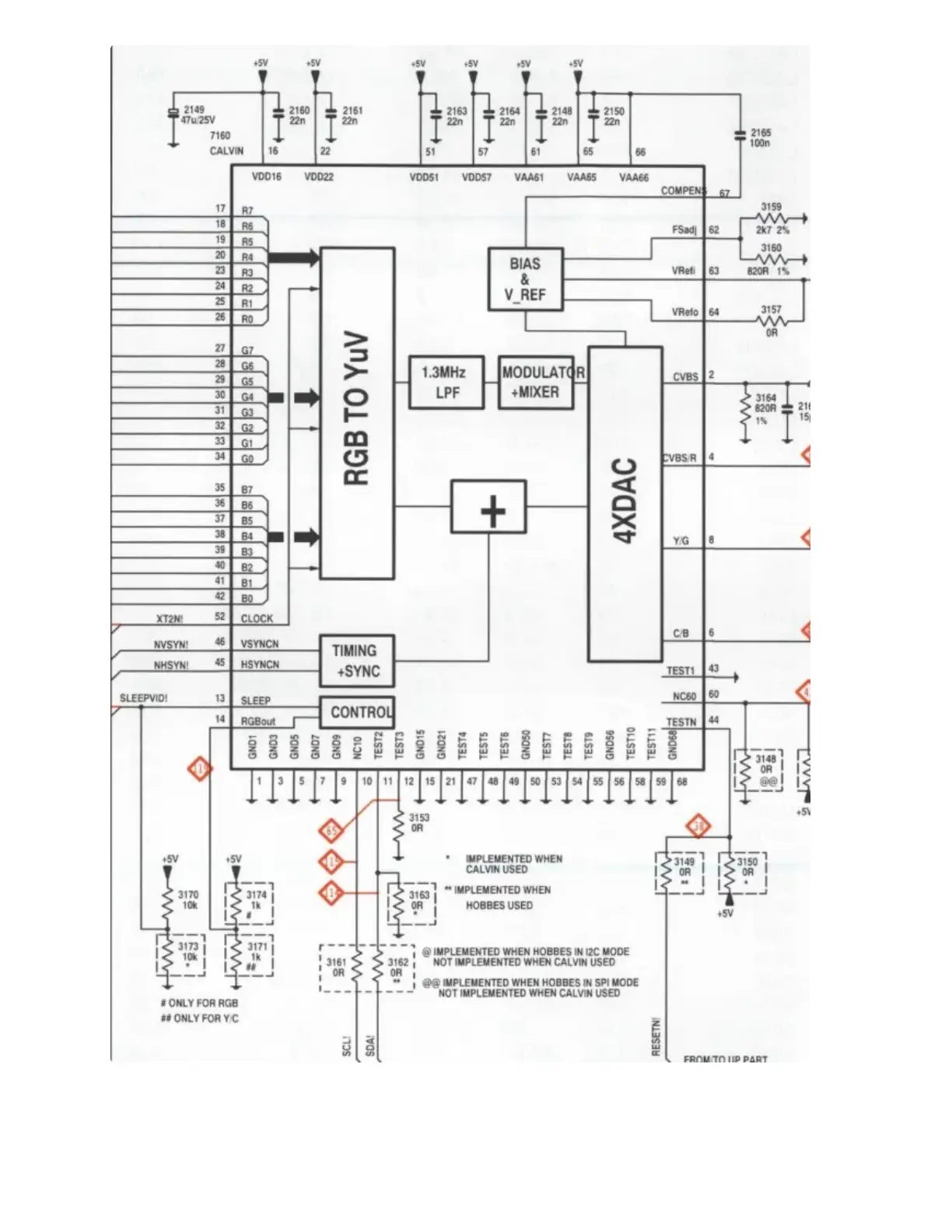

Flip over the main board and locate resistor 3171 in the ANALOG VIDEO section. Seen below
in the Red box.
