NANOPW - NANOPB
Wiegand 125 Khz proximity reader
INSTALLATION MANUAL
1

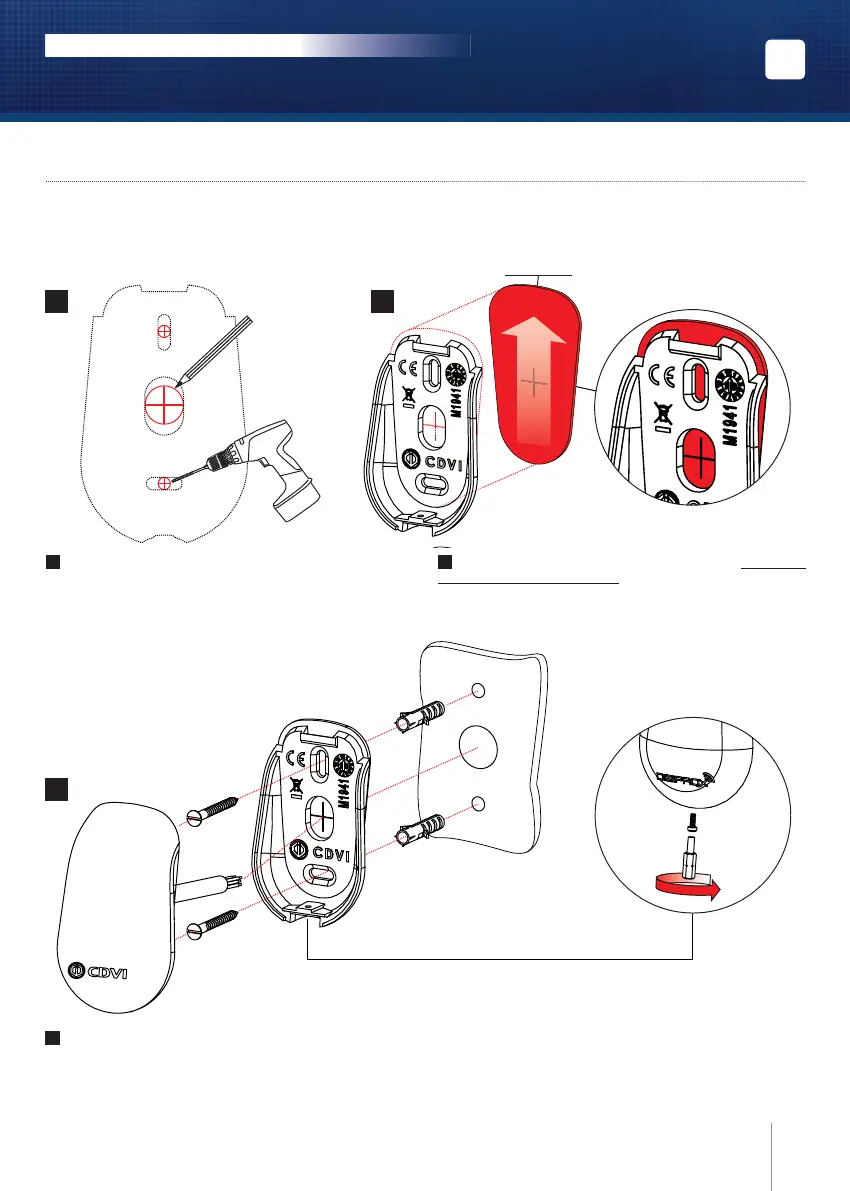

Measure and mark the center lines to determine the
reader position. Drill the fi xing screw holes (Diameter:
5mm). Drill the wiring access area (Diameter: 15mm).
2
Place the joint at the back of the reader. Take care
to begin from the bottom. (Sch. a). The joint must
be visible (about 2mm) on the top-back of the reader
(Sch. b).
4] MOUNTING
Make sure that there are no pieces missing from the mounting kit. Use the correct tools according to the installa-
tion (drill, screwdrivers, tape measure,...) and follow the mounting instructions of the reader.
1
3
2
Sch. a
Sch. b
Sch. c
3
Insert the plastic plugs in the mounting holes, connect the cable (refer to wiring diagram on page 7), then fasten
the reader with the TORX
®
screw using the TORX
®
bit (Sch. c). Make sure that the varistor is connected across the
lock (refer to page 5 “Reminders and recommendations”).
Foam seal
