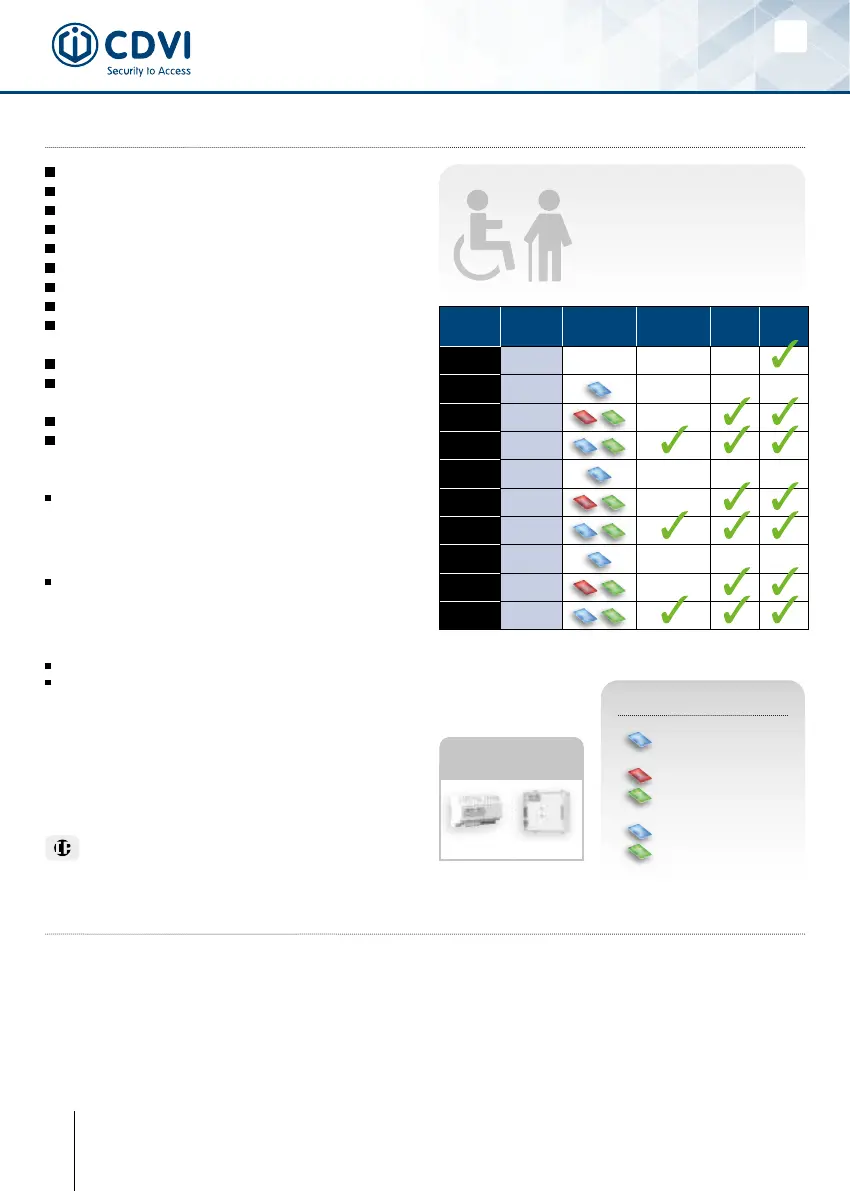

1] GENERAL INFORMATION
The V3S, V4S and V5S series
with signalling are suitable for
the new regulations covering
assistance to persons with
reduced mobility.
NFS 61-937.
Surface mounting.
High corrosion resistance.
Security rope.
Delivered with armature plate.
No mechanical wear.
Ease of installation.
Recommended for indoor use.
Positive safety (frees access immediately
in the event of a power cut).
Holding force: 180 - 500kg.
Visual and audible signalling
(see table)*.
No residual magnetism.
Built-in electronic protection
to eliminate back EMF.
Electromagnetic lock dimensions (L x W x D):
- V1SR = 166 x 34 x 21mm
- V3S series = 254 x 45 x 26mm
- V4S series = 254 x 50 x 30mm
- V5S series = 272 x 66 x 40mm
Armature dimensions (L x W x D):
- 180kg = 130 x 32 x 9mm
- 300kg = 185 x 38 x 11mm
- 400kg= 185 x 45 x 12mm
- 500kg = 185 x 60 x 12mm
Power supply: 12/24V dc.
Power absorption:
- 12 V DC = 500mA,
- 24 V DC = 250mA.
Refs
Holding
force
Visual
feedback
Audible
feedback
Relay
Moni-
tored
V1SR 180kg
- - -
V3S 300kg
- - -
V3SR 300kg
-
V3SRB 300kg
V4S 400kg - - -
V4SR 400kg
-
V4SRB 400kg
V5S 500kg - - -
V5SR 500kg
-
V5SRB 500kg
IP42
COLOUR CODES
BLUE ACTIVE VOLTAGE
RED LOCKED
GREEN OPEN
BLUE LOCKED
GREEN OPEN + BUZZER
ARD212 BS60
Recommended
power supplies
* Depending on the version.
2] REMINDERS AND RECOMMENDATIONS2] REMINDERS AND RECOMMENDATIONS
The function of an electromagnetic lock is to ensure the locking of an access point. This document is a guide
of installation which will allow you to secure the installation according to the characteristics of the product,
the site and the environmental requirements.
