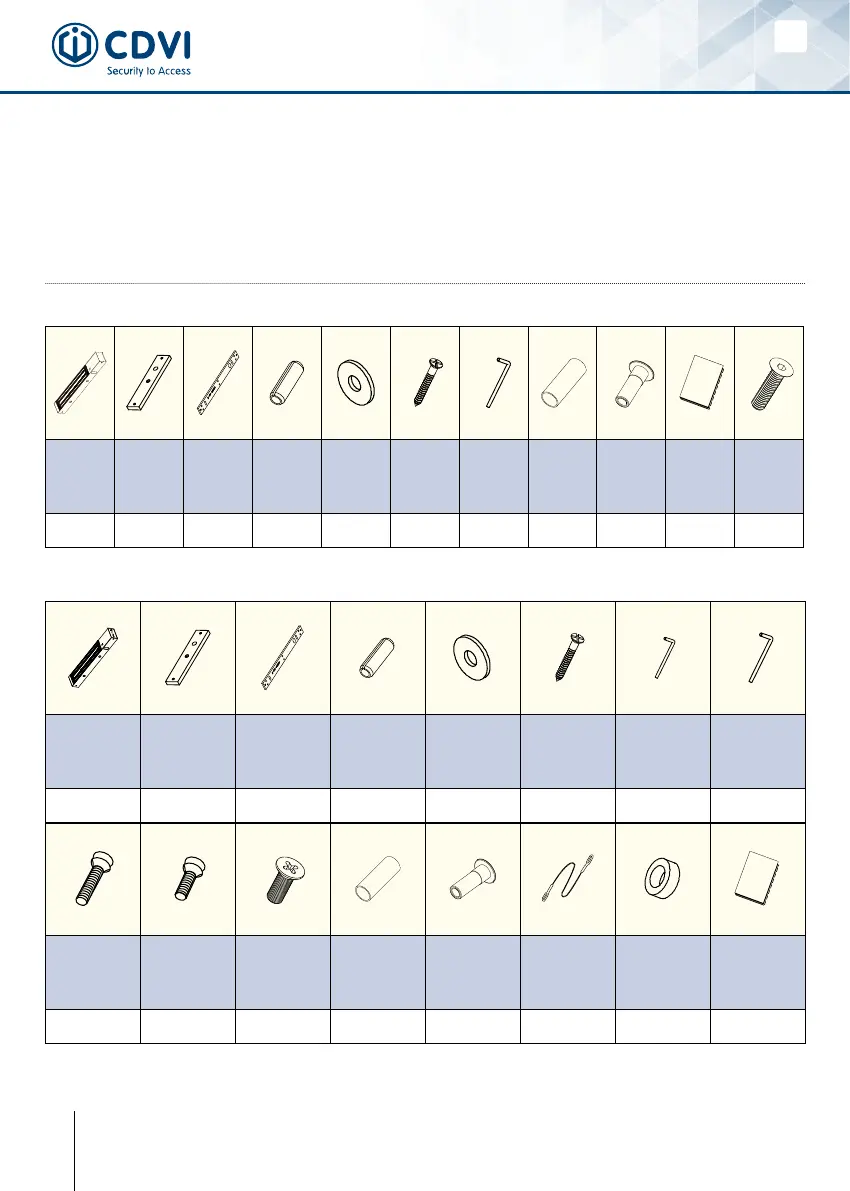

3] PACKAGE CONTENTS
Surface
mount
magnetic
lock
Armature
plate
Fixing
plate
Roll pin
5x16
Steel
washer
4x25
wood
screw
Key
3mm
Key
5mm
1 1 1 2 2 7 1 1
M8x35
screw
M8x25
screw
3x8
self-tapping
screw
Guide
piece
Cap
nut
Safety
rope
Rubber
washer
Installation
manual
1 11 1 1 1 2 1 1
Surface
mount
magnetic
lock
Armature
plate
Fixing
plate
Roll pin
5x16
Steel
washer
3x25
wood
screw
Key
3mm
Guide
piece
Cap
nut
Installation
manual
M5x20
screw
1 1 1 2 2 5 1 1 1 1 1
ELECTROMAGNETIC LOCK V1SR
ELECTROMAGNETIC LOCK V3S, V4S AND V5S - SERIES
MAINTENANCE
The Electro magnet and armature plate have a specic treatment which strengthens the protection against wear
and corrosion. These products do not require high maintenance. Nevertheless to ensure optimum performance,
it is recommended to clean regularly the surfaces in contact of the electro magnet and armature plate with a cloth
and non abrasive products. If traces of corrosion appear, it is recommended to clean and oil the contact surfaces.
Check and tighten regularly all the xings of the Electro magnet and ensure that while the armature is able to pivot
on its mounting, the xing bolt is not liable to loosen (we recommend thread-lock for all xing bolts).
