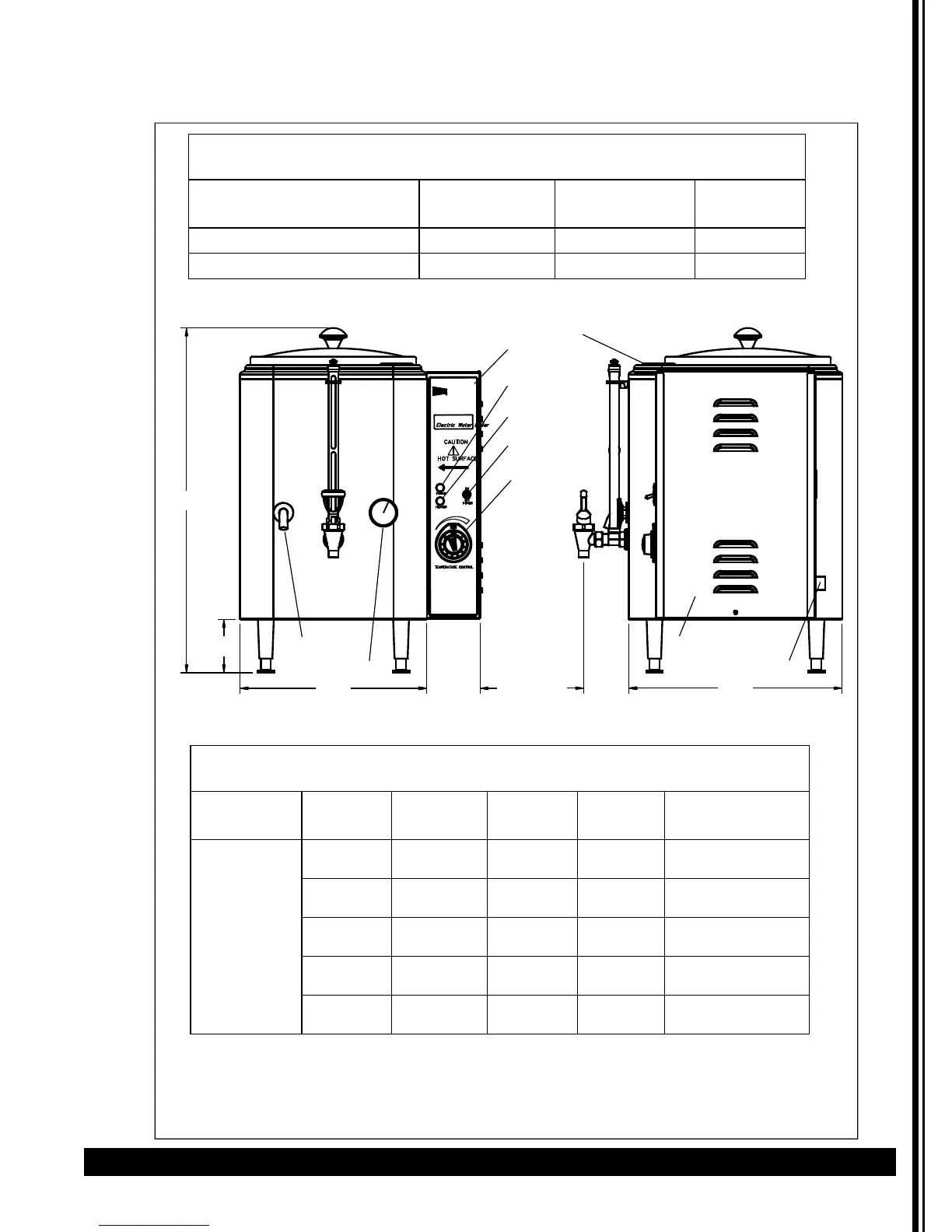

Rough-In Drawing
WATER INLET
OVERFLOW
POWER
SUPPLY BOX
TEMPERATURE
CONTROL
VENT OPENING
THERMOMETER
ELECTRICAL SPECIFICATIONS
MODEL NO VOLTS WATTS AMPS PHASE
FIELD WIRING
SIZE
ME10E-N
CME10E-N
ME15E-N
CME15E-N
120 1,800 15 1
14 AWG
240 7,000 29.2 1
10 AWG
208 5,300 25.5 1
10 AWG
240 10,500 25 3
10 AWG
208 7,900 22 3
10 AWG
NOTE:
1. FIELD WIRING MUST BE SUITABLE FOR 75 DEGREES CELSIUS.
2. USE COPPER WIRE ONLY FOR POWER SUPPLY CONNECTION.
3. 120 VOLT UNITS SUPPLIED WITH A GROUNDED 120V-15A LINE CORD AND PLUG.
GENERAL SPECIFICATIONS
MODEL NO
WATER CAP.
(GAL)
DIMENSION "A"
(INCHES)
SHIPPING
WT. (LB)
ME10E-N CME10E-N
10.0 26.0 45
ME15E-N CME15E-N
15.0 30.5 50
4.0
"A"
14.0 4.0
16.03.4
POWER
SWITCH
POWER ON
LIGHT
HEATER ON
LIGHT
SIDE ACCESS DOOR
(SLIDES UP)
ME10E-N
