4. PRODUCT ASSEMBLY

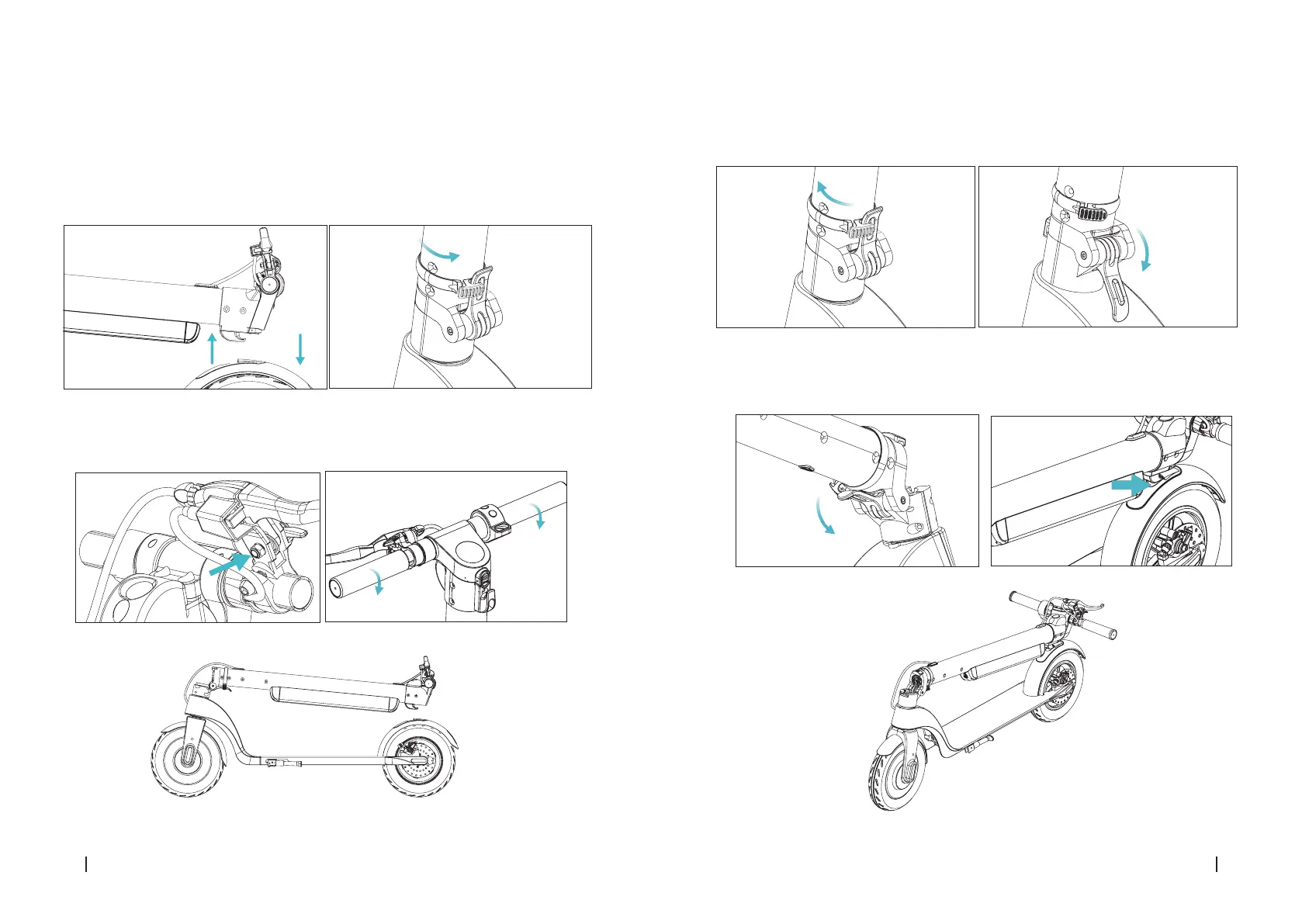

Unfold
1. Pull up the stem while pressing down the rear fender.
2. Raise the stem, place the folding tab in a close position and turn the fixing ring to hold
the tab.
3. Fix the brake with an M6 hex wrench.
4. Paying attention to the rotation direction, tighten the handlebar.
Fold
1. Turn the fixing ring to loosen it.
2. Open the folding tab.
3. Lower the folding tab and then the stem.
4. Align the closing hook with the gap on the rear fender and press it down to ensure it is
locked.
