Ember Material
Burner

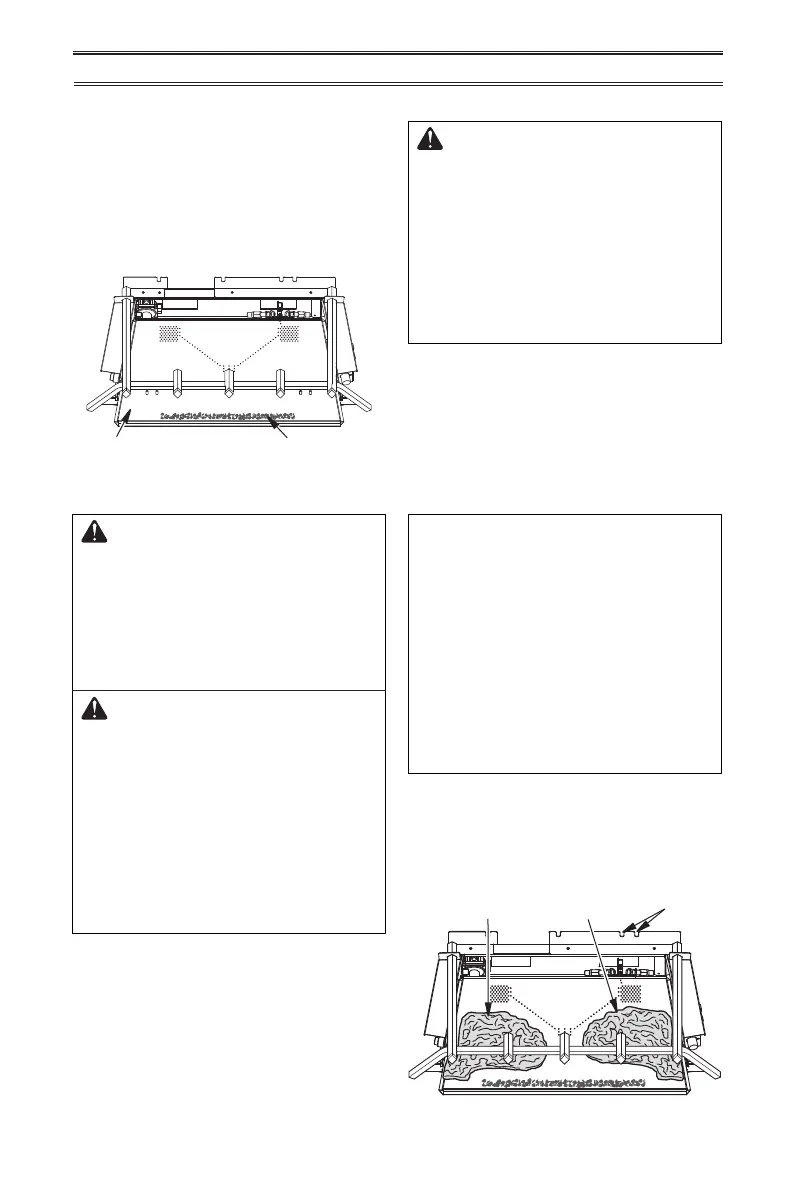

Figure 19 - Placing Ember Material
INSTALLATION
PLACING EMBER MATERIAL
Separate the ember material into light pieces
smaller than the size of a dime. Place the
pieces around the round gas ports starting in
the front of the burner and working your way
toward the back of the burner. Do not place
ember material on the slotted burner ports or
the carry over ports leading to the left and right
rear burner slots.
WARNING: Use only ember
material provided with log set.
Do not add additional ember
material.
Place ember material on front
burner port only. DO NOT PLACE
EMBER MATERIAL ON PORTING
BEYOND THE GRATE, OVER THE
MIDDLE OR BACK BURNERS.
WARNING: Failure to posi-
tion the parts in accordance
with these diagrams or failure
to use only parts specically
approved with this heater may
result in property damage or
personal injury.
CAUTION: After installation,
and periodically thereafter,
check to ensure that no ame
comes in contact with any log.
With the heater set to high, check
to see if ames contact any log. If
so, reposition logs according to
the log installation instructions
in this manual. Flames contact-
ing logs will create soot.
INSTALLING LOGS
It is very important to install the
logs exactly as instructed. Do
not modify logs. Use only logs
supplied with heater. Each log
is marked with a number. This
number will help you to identify
the logs when installing. After
installing logs, add decorative
cinders around the grate base,
do not place any decorative
cinders on logs or burner.
1. Place log #1 onto pins on the left of the
burner. Place log #2 onto pins on the right
of the burner (see Figure 20).
2. Insert pins on the back of log #3 into slots
in rear log bracket on grate base (see
Figures 20 and 21, page 20).
Log #1
Log #2
Slots for
Log #3
Figure 20 - Installing Logs #1 and #2
