Cedar Summit F25630 - Page 110

Step 35: Attach Steel Hand Grips to Fort
Hardware
Pre-drill all holes using a 1/8” drill bit before installing the Wafer Lags
A: Measure6”fromthetopof(025)TopLadderoneach(030)NarrowWindowPanelandattach1Steel
HandGripperpanelwith2(WH2)#12x1”WaferScrew(withatwasher)perSteelHandGrip.(g.35.1)
030
4 x #12 x 1” Wafer Head Screw
(3/16” at washer)
WH2

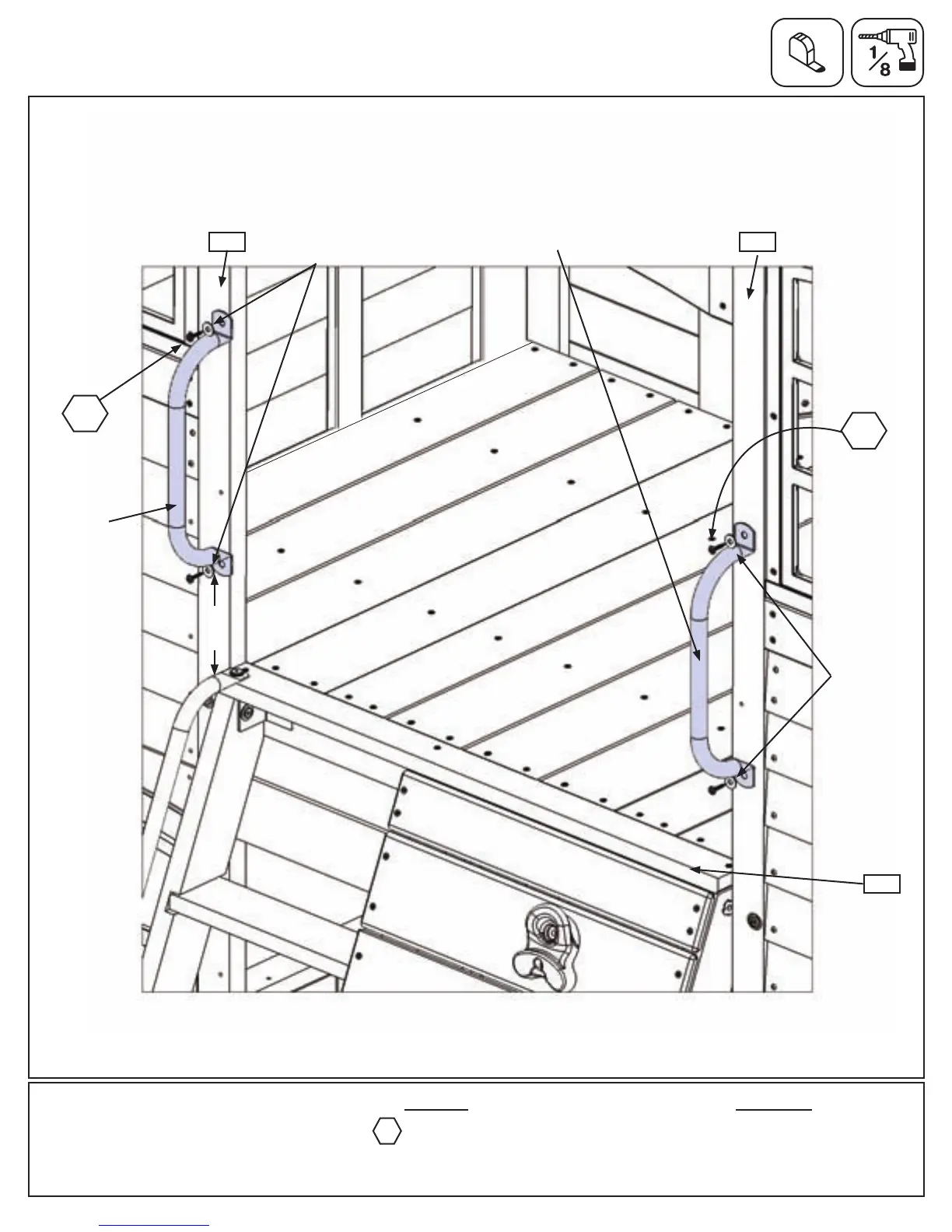

Fig. 35.1
3/16”Flat
Washer
025
3/16”Flat
Washer
WH2
Steel
Hand
Grip
x2
WH2
x2
030
SteelHandGrip
6”
Other Parts
2 x Steel Hand Grip
