Cedar Summit F25630 - Page 49

8 x #12 x 3/4” Pan Screw
Hardware
030
2 x Flat Panel Brackets
Other Parts
S8

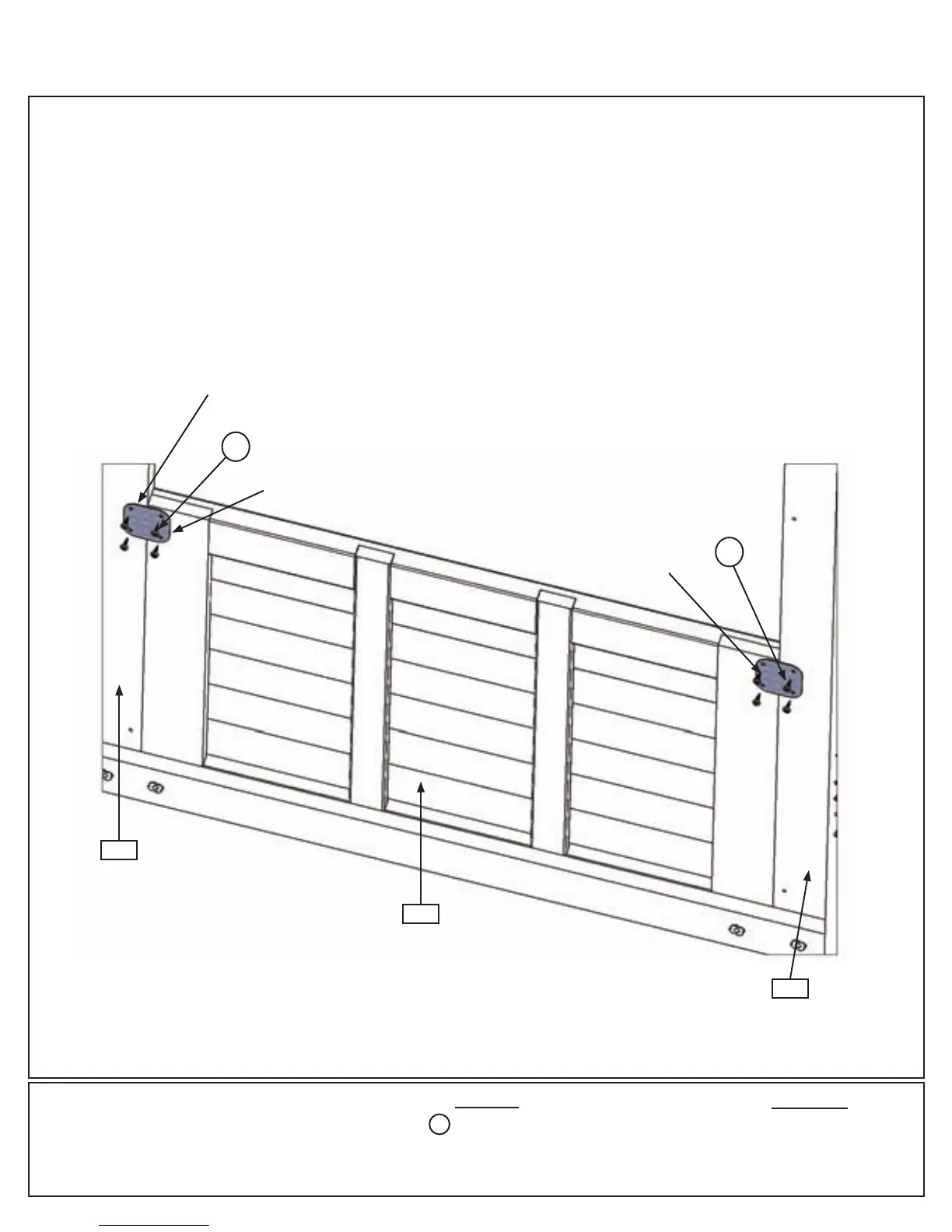

Fig. 7.7
Step 7: Back Wall Assembly
Part 4
E:Ontheinsideoftheassemblyattach(060)HalfPaneltoeach(030)NarrowWindowPanelusing2FlatPanel
Bracketswith4(S8)#12x3/4”PanScrewsperbracket.(g.7.7)
030
060
S8
S8
Bracketcannotberaisedabove
thetopoftheHalfPanel.
FlatPanelBracket
FlatPanelBracket
x4
x4
Inside View
