Cedar Summit F25630 - Page 79

1 x Crowsnest Floor FSC 1 x 5 x 34-1/4”
1 x Crowsnest Floor FSC 1 x 5 x 38-1/2”
3 x Slidenest Floor FSC 1 x 6 x 45”
2 x Slidenest Floor FSC 1 x 5 x 45”
4 x Floor FSC 1 x 6 x 38-1/2”
Wood Parts
174
171
D:Ontheinsideofeach(170)AngleFloorplace1(172)SlidenestFloorandthenevenlyspace3(173)
SlidenestFloorsinbetweenthe2(172)SlidenestFloors.(g.17.3)
E:OntheSwingSideWallplaceandevenlyspace2(171)Floorsnexttothealreadyplaced(171)Floor.(g.
17.3)
F: OntheDoorWallSideplace(174)CrowsnestFloortighttoeach(081)CrowsnestPost.Thenevenlyspace
(175)CrowsnestFloorandthe2remaining(171)Floors.(g.17.3)
Note: Someboardsmaybetighttoeachotherandsomemayhaveasmallspacebetweenthem.

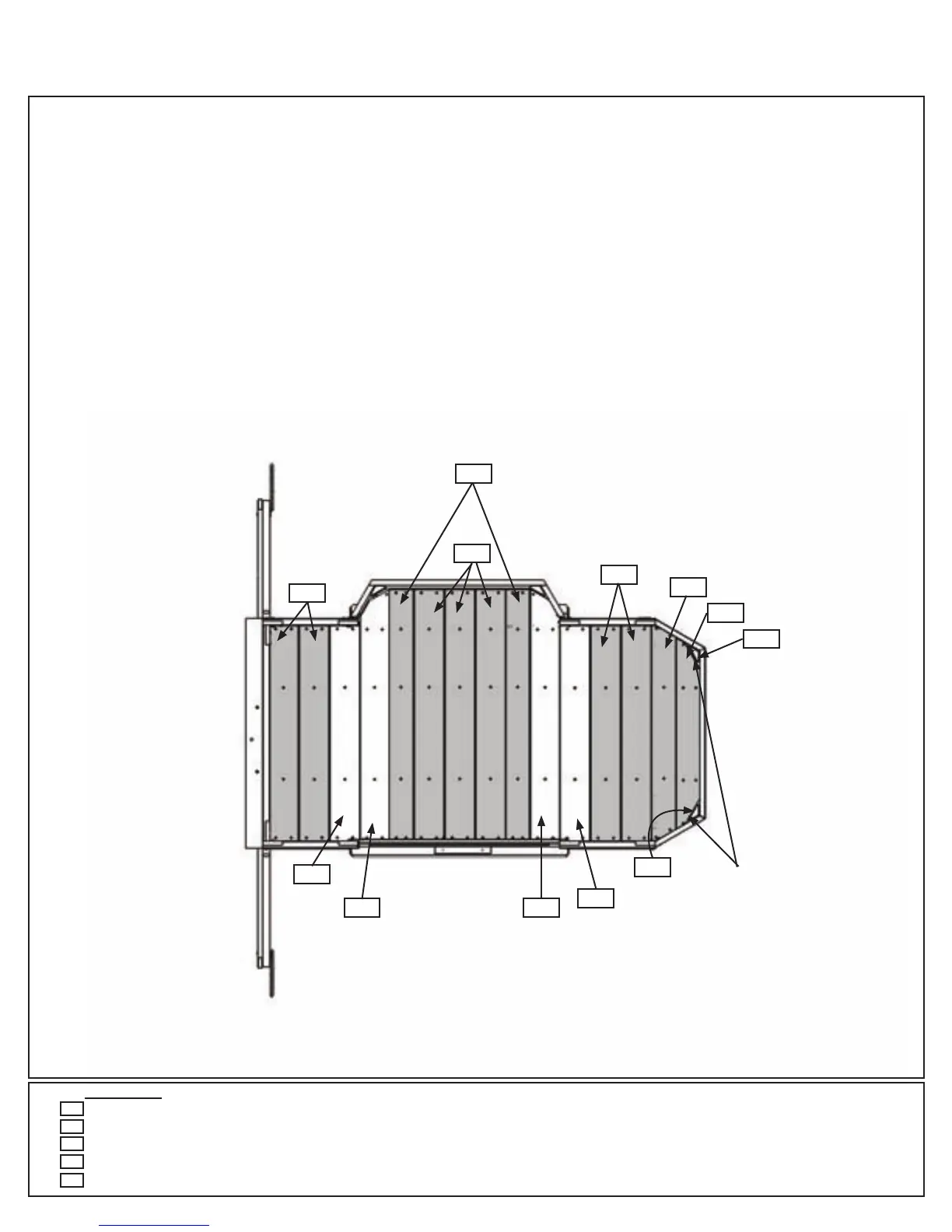

Step 17: Floor Board Assembly
Part 2
081
Fig. 17.3
172
173
171
175
174
081
171
170
171
Swing Side Wall
170
Tighttoposts.
172
173
175
171
Top View
