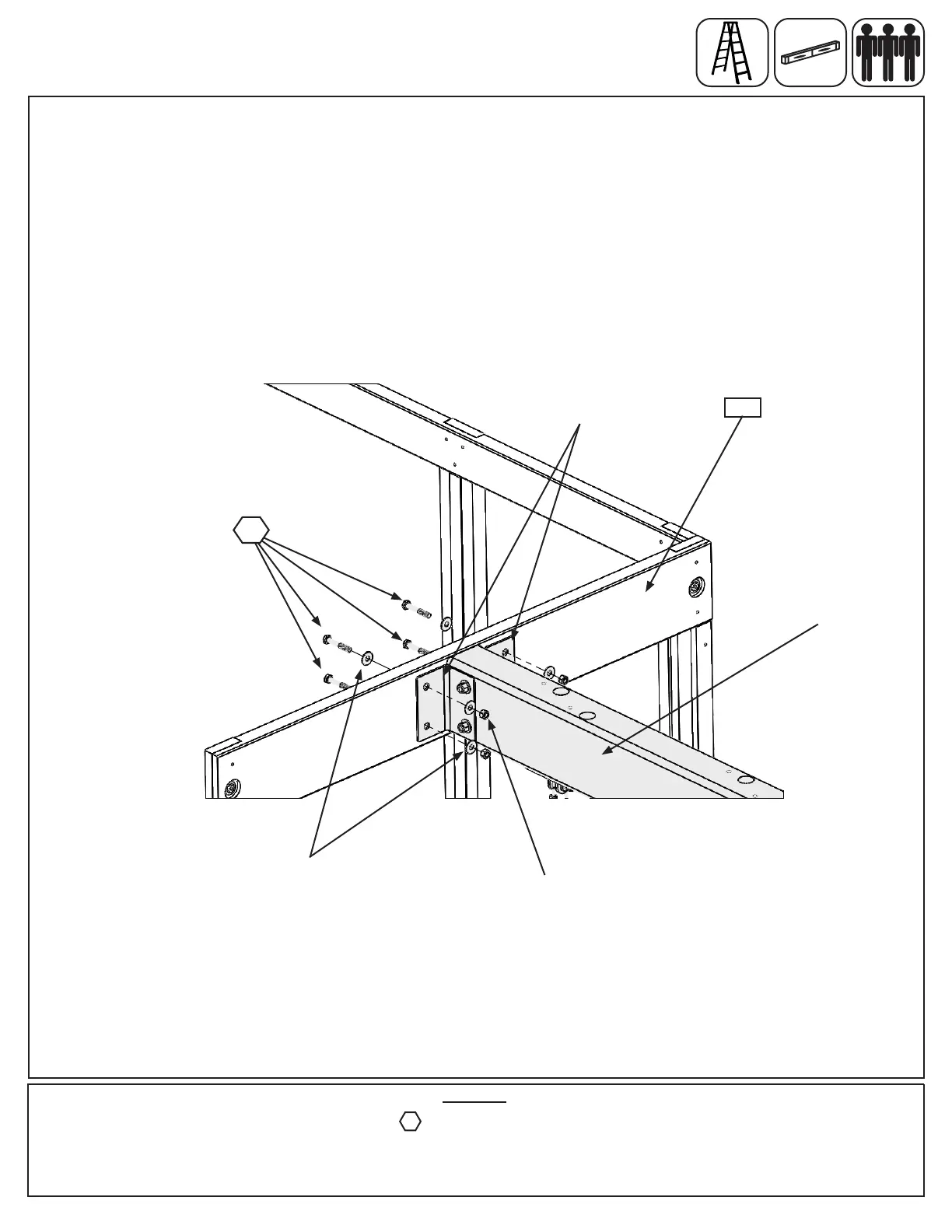

Step 8: Attach Swing Assembly To Fort
A: Place Swing Assembly against top of (2627) SW Wall Panel, make sure assembly is level then attach
from inside the fort assembly into each L-Beam Bracket with 4 (G8) 5/16 x 2” Hex Bolts (with 2 at washers
and 1 lock nut). (g. 8.1)
5/16” Flat
Washer
4 x 5/16 x 2” Hex Bolt
(5/16” at washer x 2, 5/16” lock nut)
5/16”
Lock Nut
G8
Hardware
L-Beam
Bracket
Swing
Assembly
Fig. 8.1
2627
G8
To Next Page
