Cedar Summit McKinley - Attach Slide to Fort

49 support@cedarsummitplay.com
SHEET 1 OF 1
REV.
DWG. NO.
Details
SCALE:1:50 WEIGHT:
SIZE
SHEET 1 OF 1
REV.
DWG. NO.
Details
SCALE:1:50 WEIGHT:
SIZE

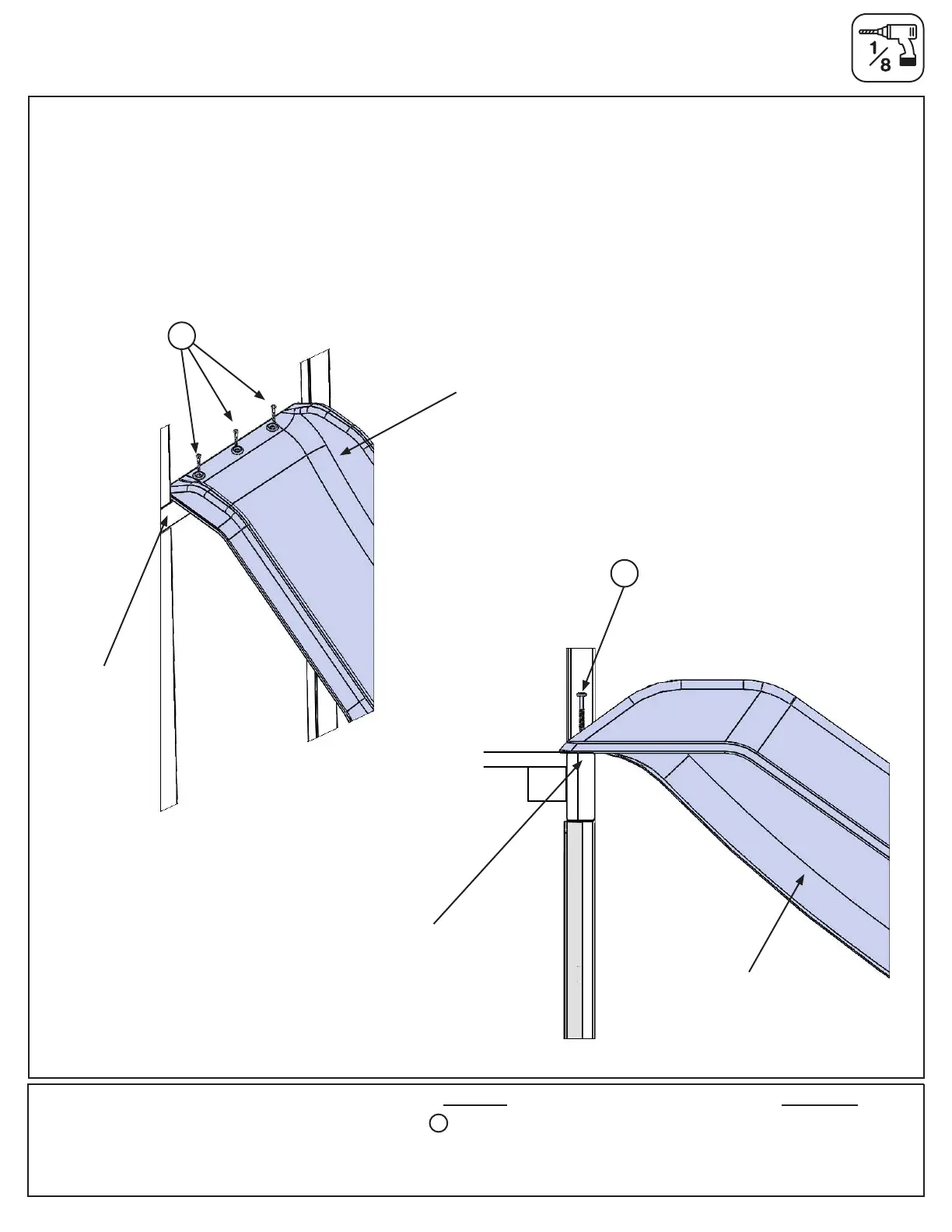

Fig. 22.1
Step 22: Attach Slide to Fort
Please note this slide is not used on the Creston Lodge Fort, please skip this step and refer to the
instructions in the TNRIII Tube Slide box for assembly and installation.
A: Place Slide in the centre of the opening as shown in the Fort Guide, pre-drill with a 1/8” drill bit then attach
slide to fort through the panel using 3 (S7) #12 x 2” Pan Screws. (g. 22.1 and 22.2)
Hardware Other Parts
Fig. 22.2
Slide
3 x #12 x 2” Pan Screw
S7
1 x Slide
(for in-store purchases slide
sold separately - A24948)
S7
S7
Slide
Panel
Panel
