Cedar Summit McKinley - Attach Roof Assembly to Fort

57 support@cedarsummitplay.com
WEIGHT:
DWGTF. NO.
SIZE
ATF Lewiston
SHEET 3
V.
A
SCALE:1:50
4 x #8 x 2-1/2” Wood Screw
S3
Fig. 28.1
2647
2617
2617
Fig. 28.2

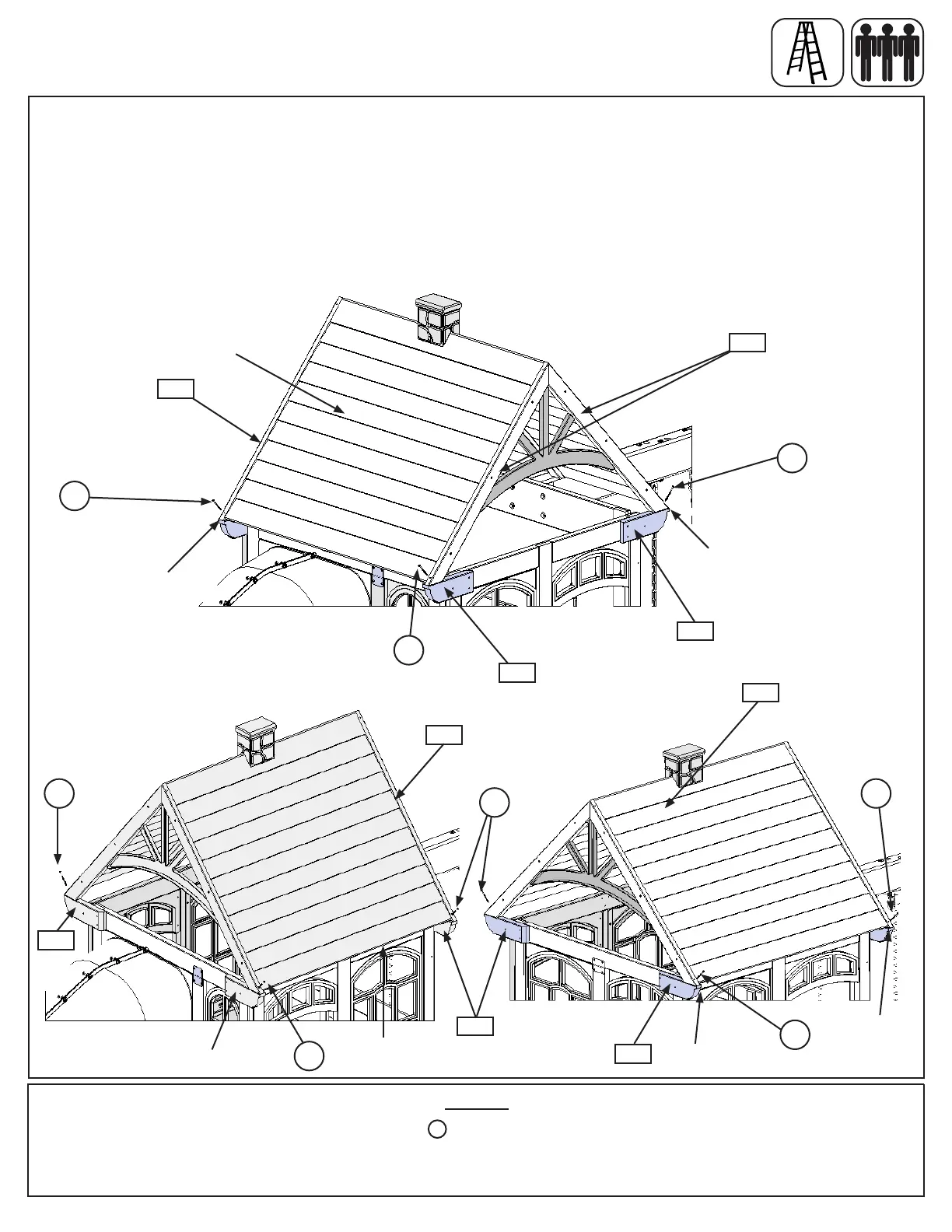

A: With 2 people on the ground and at least 1 person in the fort, lift the Roof Assembly up and over the Back
side of the fort. Guide the Roof Assembly onto the fort so all four (2617) Roof Supports sit ush to the front and
outside edges of (2646) Roof End and (2647) Roof End Left. (g. 28.1, 28.2 and 28.3)
B: Attach (2617) Roof Supports to (2646) Roof End and (2647) Roof End Left with 1 (S3) #8 x 2-1/2” Wood
Screw per support. (g. 28.1, 28.2 and 28.3)
Step 28: Attach Roof Assembly to Fort
Roof
Assembly
Hardware
S3
Flush
Flush
2646
Flush
Flush
2646
2647
2617
S3
S3
S3
2647
2617
Fig. 28.3
S3
S3
S3
S3
