Cedar Summit Paramount F25040 - Step 43: Large Roof Assembly; Part 1

110 support@cedarsummitplay.com
Complete Step 43, A-D, twice so there are 2 Large Roof Assemblies

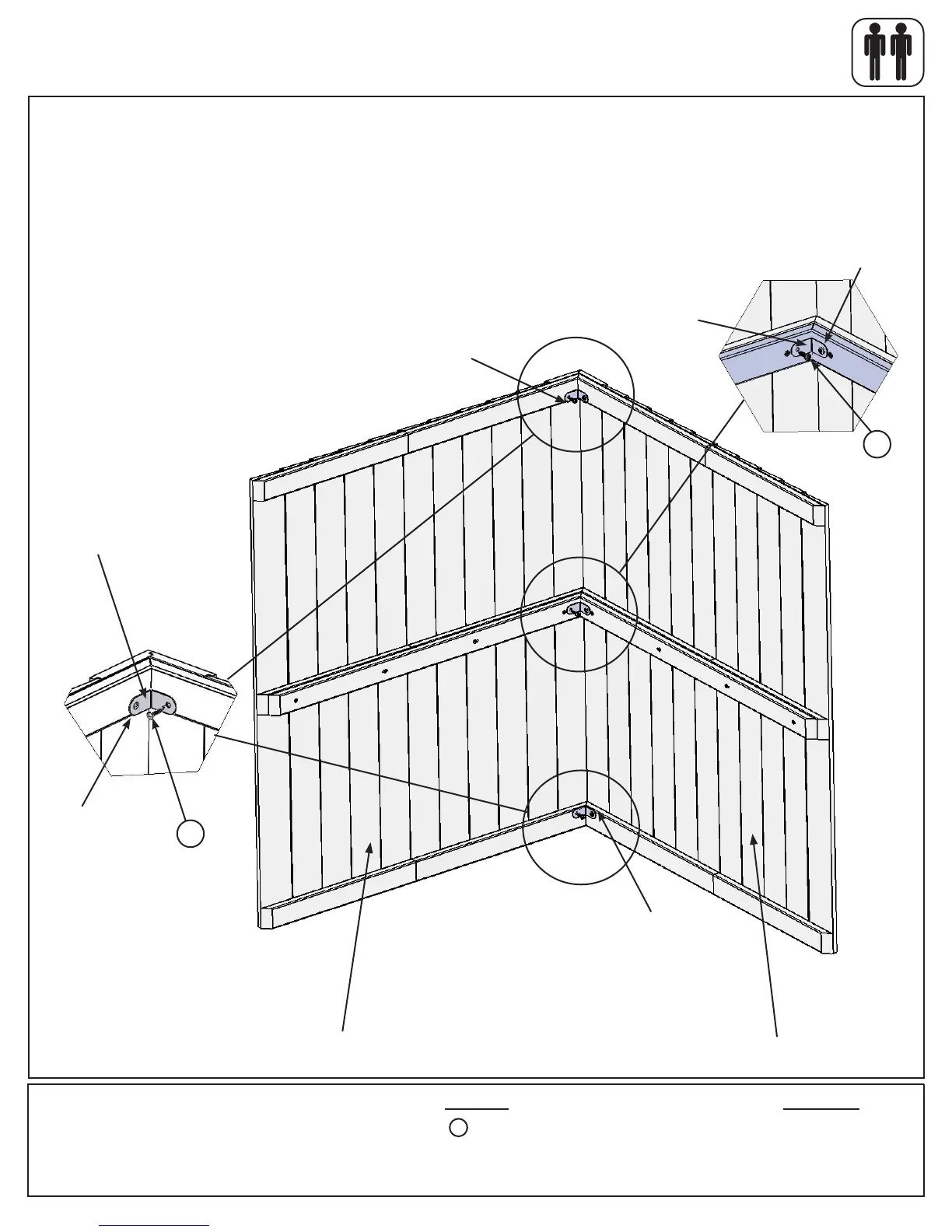

A: Place Front Roof Panel against Back Roof Panel so the tops form a peak then tight to the inside edge of the
outside slats attach 1 Narrow Angle Bracket per slat with 2 (S0) #8 x 7/8” Truss Screws per bracket. (g. 43.1
and 43.2)
B: Attach the third Narrow Angle Bracket centred on the middle slat with 2 (S0) #8 x 7/8” Truss Screws. (g.
43.1 and 43.3)
Fig. 43.1
Fig. 43.2
Fig. 43.3
Hardware
Step 43: Large Roof Assembly
Part 1
Other Parts
6 x Narrow Angle Bracket
12 x #8 x 7/8” Truss Screw
x 2
x 2 per
bracket
Narrow Angle
Bracket
Flush
Flush
Flush
Centred
Narrow Angle
Bracket
S0
S0
S0
Back Roof
Panel
Front Roof
Panel
