Step 4: Large Fort Frame Assembly
Part 1
It is important to assemble the frame on a at, smooth surface.
A: Place End Wall from Step 2 between 2 (2677) Narrow Panels, noticing the wall orientations. The tops and
bottoms of the walls should be ush. Make sure the walls are square then using the pilot holes as a guide pre-
drill with a 3/16” drill bit and fasten the back (2677) Narrow Panel to the End Wall and the End Wall to the front
(2677) Narrow Panel with 4 (WL5) 1/4 x 2-1/2” Wafer Lags per side. (g. 4.1)
Note: The (2607) Diagonal is on the front of the assembly.

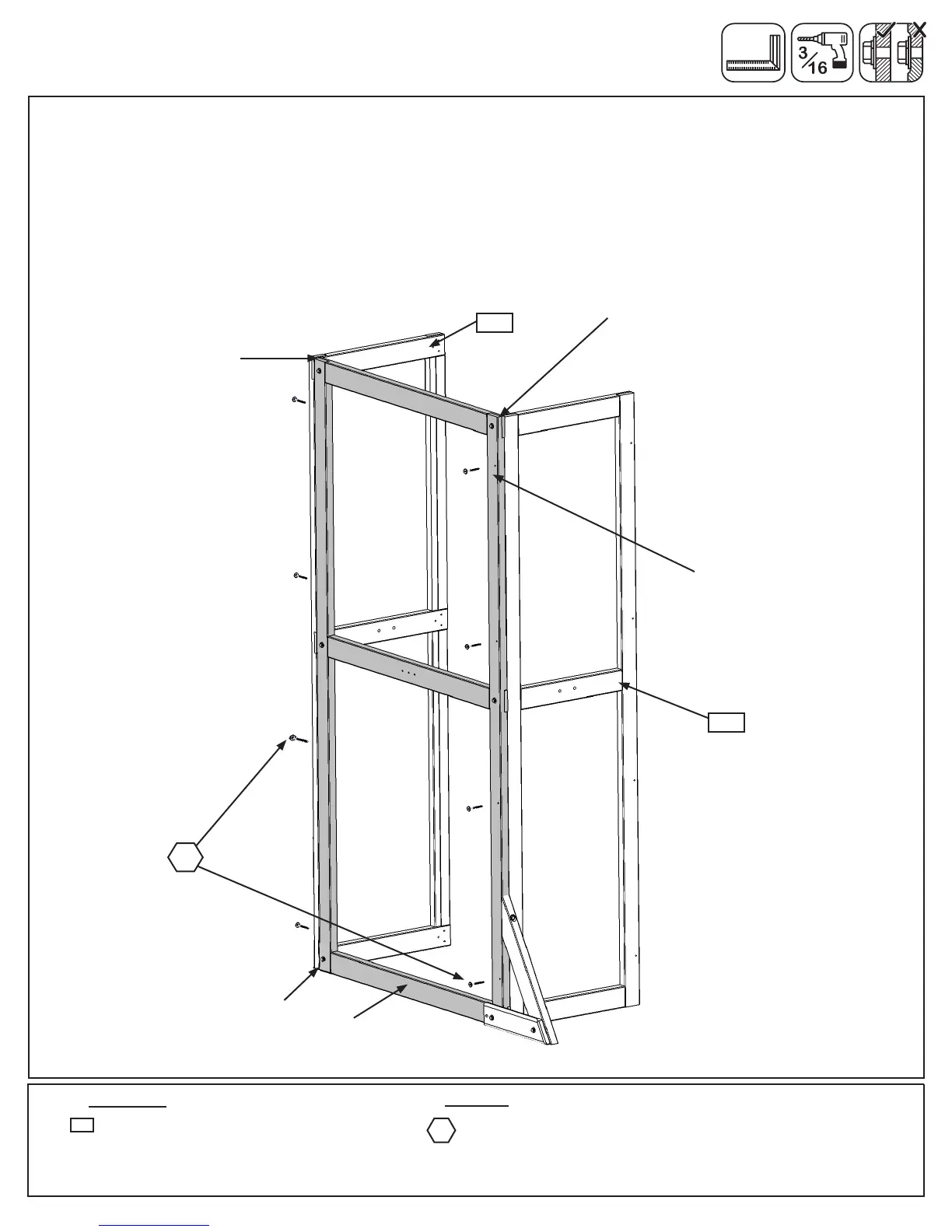

Fig. 4.1
Hardware
8 x 1/4 x 2-1/2” Wafer Lag
WL5
Front
Back
Notice Back
(2677) Narrow
Panel overlaps
End Wall
Notice End Wall
overlaps front (2677)
Narrow Panel
End Wall
WL5
x 4 per
side
Flush
Flush
2677
2677
2 x Narrow Panel 1-1/4 x 22 x 87”
2677
Wood Parts
