D: Place 1 (9084) Lower Tunnel Insert in each of the openings facing each other, tight to the oor boards and
attach with 4 (S0) #8 x 7/8” Truss Screws per insert. (g. 9.3 and 9.4)
E: In the opening of the Small Fort place 1 (9089) Upper Tunnel Insert tight to (2769) Panel BT Frame and
attach with 4 (S0) #8 x 7/8” Truss Screws. (g. 9.3 and 9.4)

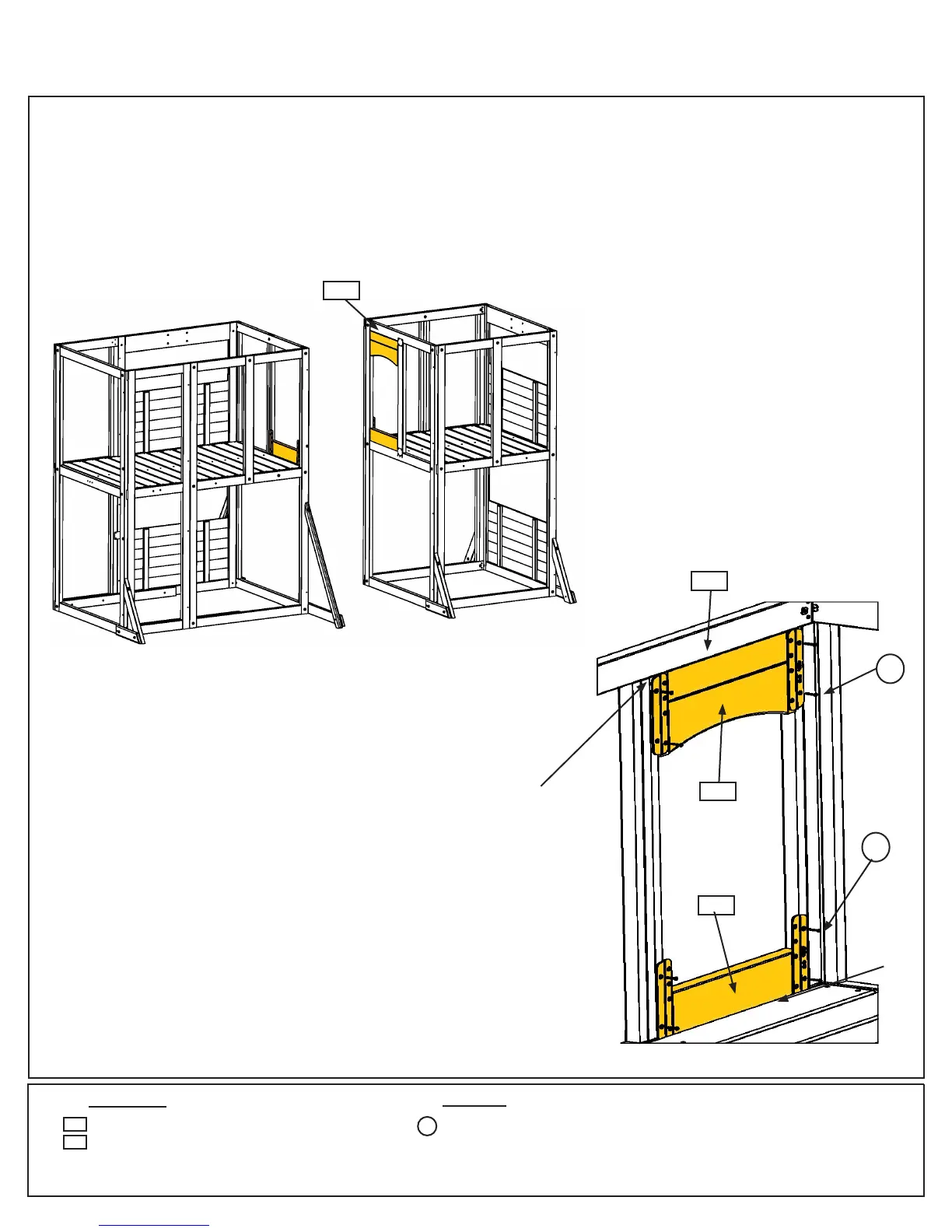

Step 9: Attach Tunnel Inserts
Part 2
Fig. 9.3
Fig. 9.4
Tight
9084
S0
12 x #8 x 7/8” Truss Screw
2 x Lower Tunnel Insert 1.27 x 8 x 18.8”
1 x Upper Tunnel Insert 1.27 x 8.25 x 18.8”
Wood Parts
Hardware
S0
9084
9089
x 4
9089
S0
x 4
Tight
2769
2769
Small Fort
Large Fort
