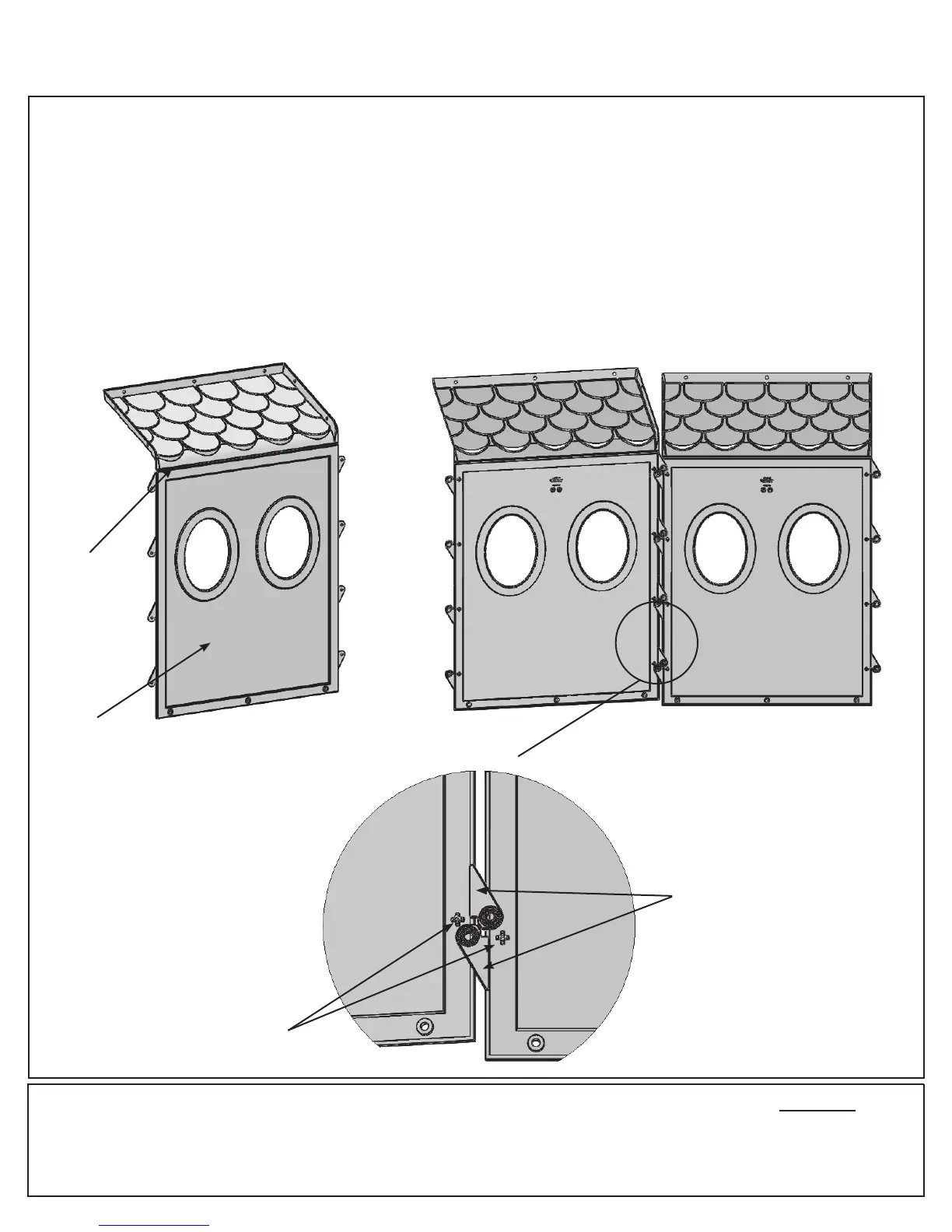

A: Bend all 4 MOD Tunnel Panels as shown in g. 12.1.
B: Match 2 MOD Tunnel Panels together by making a slight “V” with the pieces so the peak of the “V” faces
away from you. Make sure connector tabs are coupled then straighten the 2 panels. Push down on one panel
and up on the other until you hear the connector tabs click together and the bottom edges are ush. You may
have to knock panels on a hard surface to align properly. (g. 12.2 and 12.3)
C: Press nodules through the connector tab holes to hold Tunnel panels in place. (g. 12.3)
D: Repeat Steps B-C to create a second Tunnel Side.
Step 12: Tunnel Assembly
Part 1
Other Parts
4 x MOD Tunnel Panels
Bend Here
Fig. 12.1
Fig. 12.2
Fig. 12.3
MOD
Tunnel
Panel
Nodule
Connector
Tabs
Outside
View
Inside View
To Next Page
