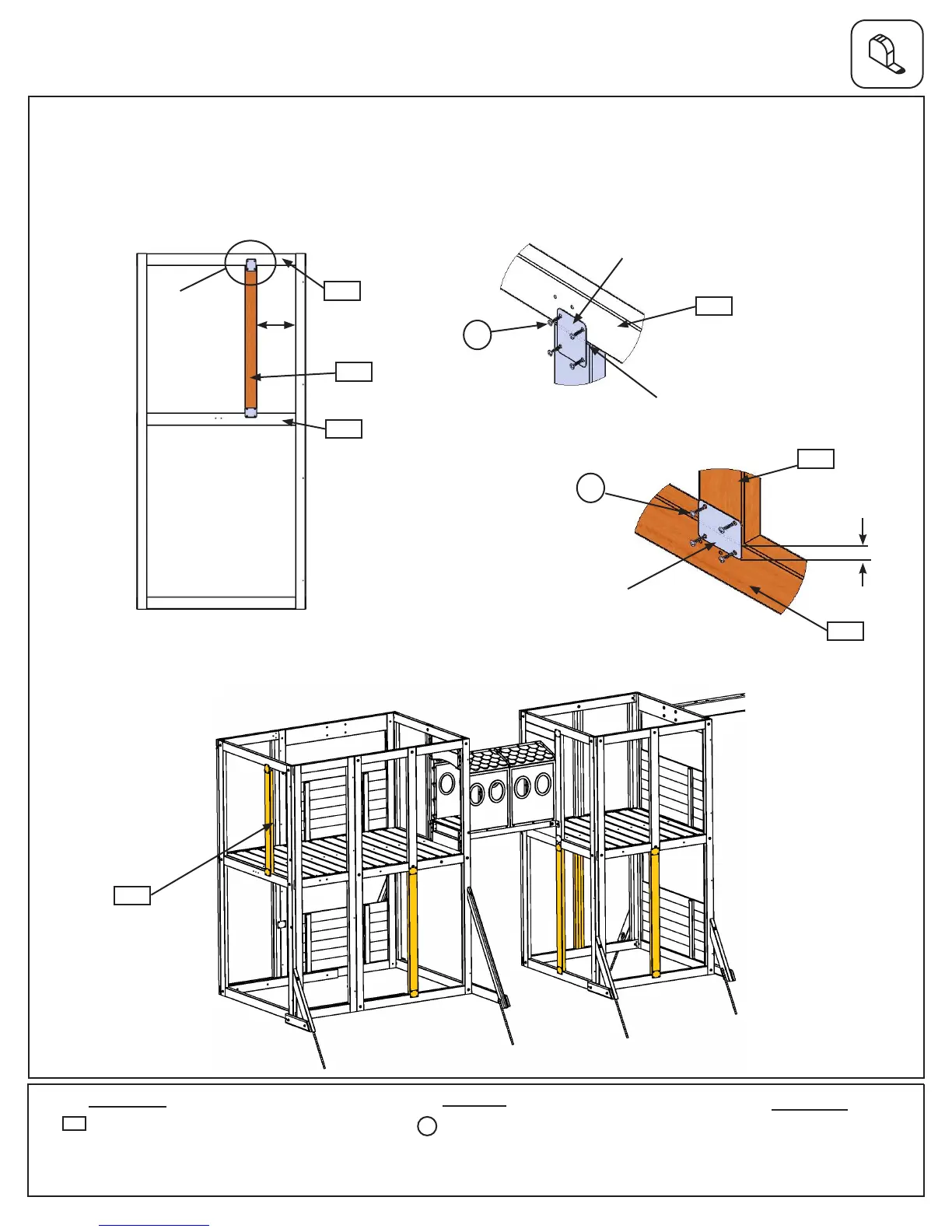

B: On the End Wall in the Large Fort place 1 (2602) Upper Jamb in the upper opening so it measures 9-5/8” to the
inside of the right post then attach with 2 Jamb Mounts to (2769) Panel BT Frame and (2768) Panel Floor using 4
(S0) #8 x 7/8” Truss Screws per mount. (g. 19.6, 19.7, 19.8 and 19.9)
8 x #8 x 7/8” Truss Screw
Step 19: Install Upper and Lower Jambs
Part 2
1 x Upper Jamb 1-1/4 x 3 x 35-15/16”
2602
Wood Parts
Hardware
S0
2 x Jamb Mount
Other Parts
Outside View
Fig. 19.6
Fig. 19.9
2768
9-5/8”
Notice
orientation
of this
bracket.
Used in this
variation
only.
2769
2602
Large Fort
End Wall
2602
Jamb
Mount
S0
x 4 per Jamb
Mount
Centred
Grooves
to the
inside
2769
2768
S0
Jamb
Mount
x 4
2602
No more than 1”
Fig. 19.8
Fig. 19.7
