15
V8.18
3000Sh / 4000Sh / 6000S / 8000S

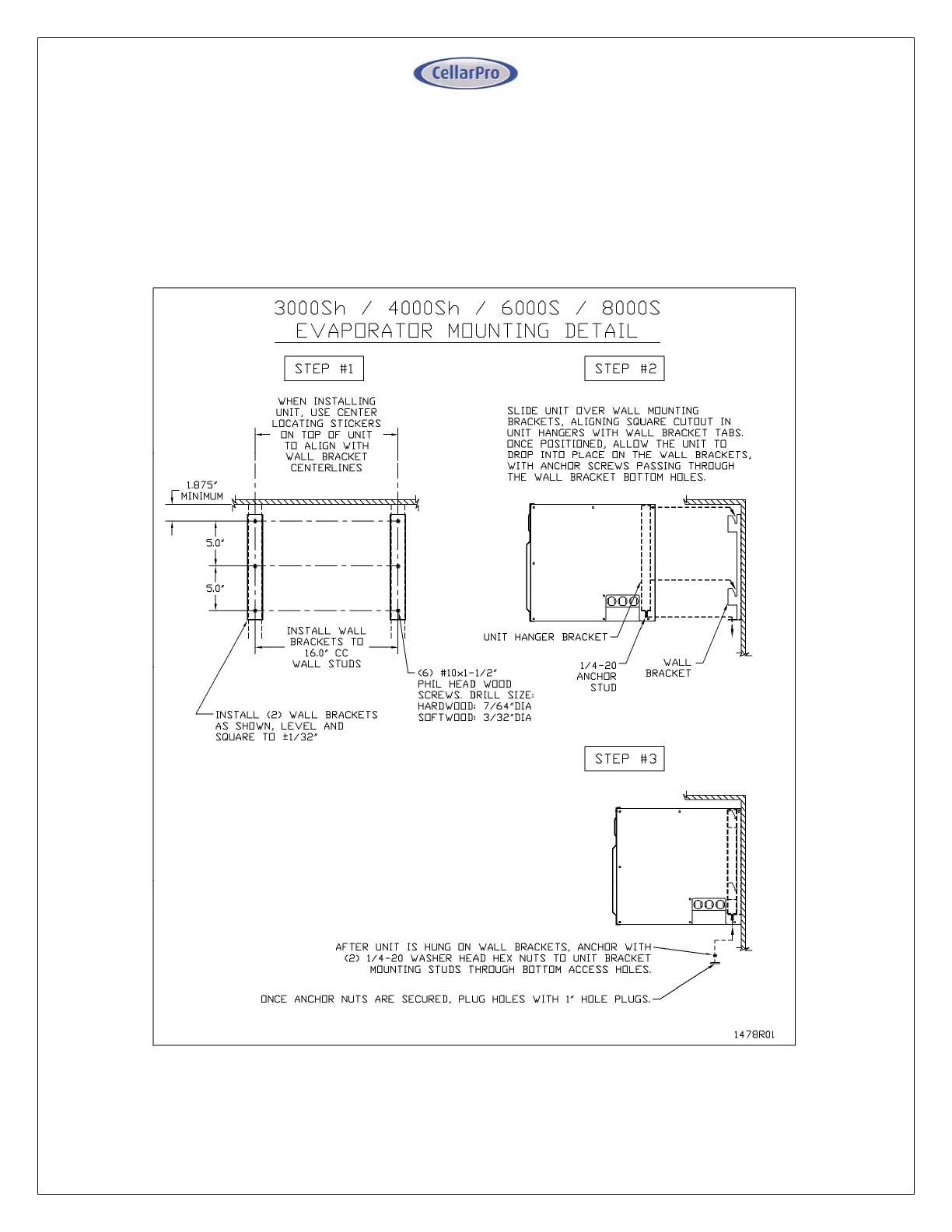

Wall hangers are used to mount these split systems. First, wall brackets are
attached to the wall, and then the evaporator slides onto the brackets. After the
evaporator is installed, two bottom nuts must be installed on the recessed anchor
studs.
