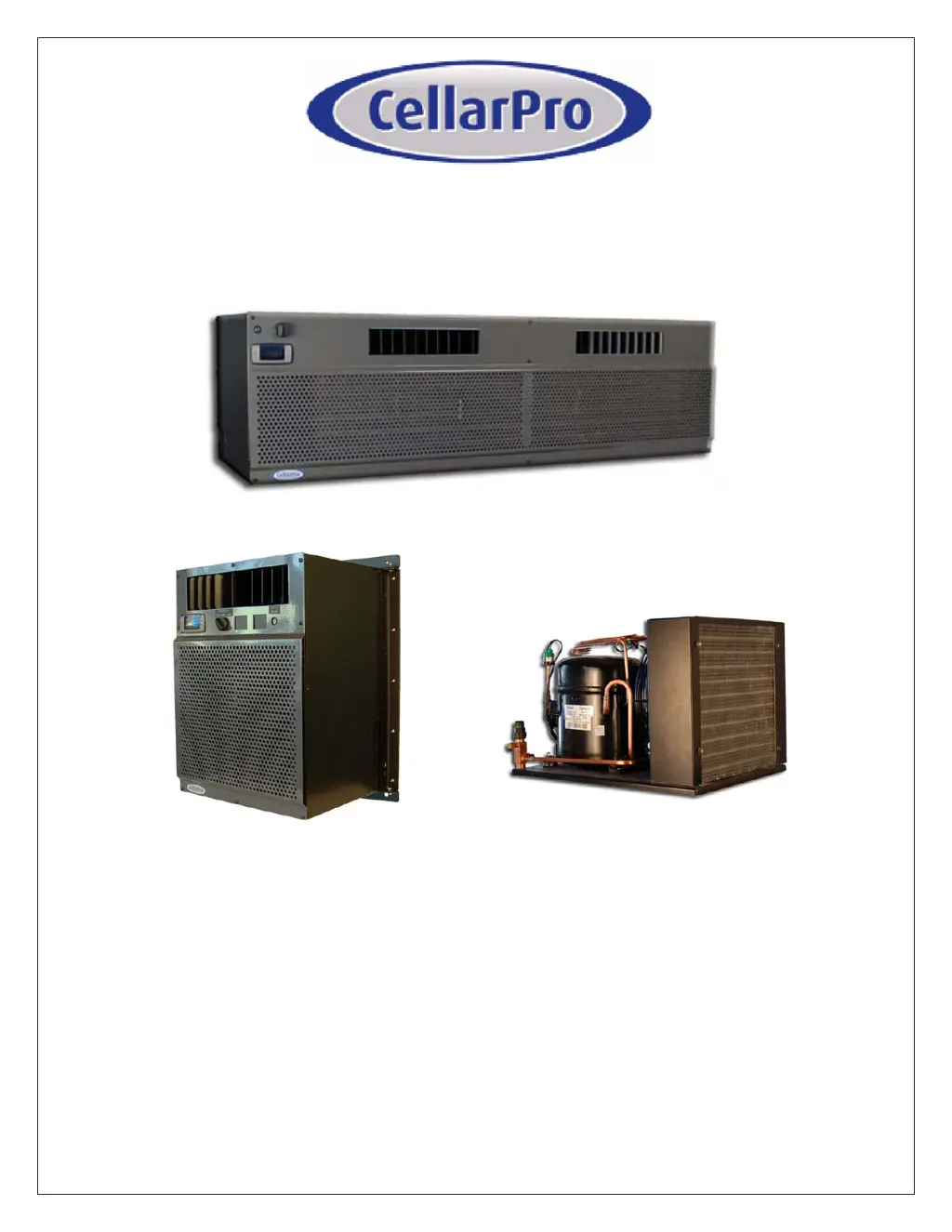

CellarPro 4000S - User Manual

Questions and Answers

C
Carl BowenAug 14, 2025
Why is my CellarPro Air Conditioner running constantly?
- D
  David ShepherdAug 15, 2025
  If your CellarPro Air Conditioner is running constantly, it may be due to hot weather, poor ventilation, or dirty condenser filters. Try the following: * Remove any obstructions blocking airflow to or from the unit. * Check and clean the condenser filter. * Improve cool air supply to the condenser coils using a fan, ducting, or exhaust system. * Raise the Minimum Set Point on the cooling unit.
S
sreedAug 17, 2025
What to do if my CellarPro Air Conditioner is dripping?
- T
  tyler32Aug 18, 2025
  Excessive dripping from your CellarPro Air Conditioner can occur due to constant operation, a low Minimum Set Point, or a poor cellar seal. Here's what to check: 1. Ensure the condensate overflow drain line isn't blocked and is properly trapped and filled with water. 2. Make sure the drain line has a downward slope from the unit to the final drain. A trap vent might be needed. 3. Verify that the cellar is airtight, checking the door(s), light fixtures, walls, ceiling, and floor. 4. Consider raising the Minimum Set Point of the cooling unit.
J
Jorge NicholsAug 21, 2025
How to fix a CellarPro Air Conditioner that won't turn on?
- W
  William ChavezAug 21, 2025
  If your CellarPro Air Conditioner won't turn on: * Restore power to the Evaporator if it's interrupted. * For valve control systems, check for loose wires on the solenoid coil and reconnect. * Listen for a "click" when the Evaporator is powered on/off. If no click, the solenoid coil may need replacement. * Restore power to the Condensing Unit if interrupted. * Check for and reconnect any loose wires. * For valve control systems, if the low-pressure switch is open, ensure the solenoid is energized. Jumper the switch to check for a faulty switch and replace if needed. * If the high-pressure switch is open, refer to the "High Pressure Safety Shutdown" section.
G
George TorresAug 25, 2025
What causes high pressure shutdown in CellarPro Air Conditioner?
- C
  Cathy CochranAug 25, 2025
  If your CellarPro Air Conditioner experiences a high-pressure safety shutdown or high discharge pressure, locate and correct the source of the high condensing head pressure by checking for: * Refrigeration line blockage * Condenser fan not operating above 90°F. Ensure power to the Condensing Unit and check fan cycling control settings. Replace the condenser fan and fan cycling control if needed. * Insufficient ventilation. Ensure adequate air ventilation to and from the Condensing Unit, referencing the installation guidelines. * Improper refrigerant charge. Inspect for an overcharged system or non-condensables in the system.
J
Joseph KeithAug 27, 2025
How to troubleshoot no cooling in CellarPro Air Conditioner with no refrigerant flow?
- J
  jmurrayAug 28, 2025
  If your CellarPro Air Conditioner has no cooling due to no refrigerant flow, check the following: * Inspect for a plugged filter drier and replace it if necessary. * Examine the pipe routing to ensure proper piping practices and correct any issues. * Determine if the liquid line is absorbing too much ambient heat; if so, consider insulation.
S
Scott WilliamsAug 31, 2025
Why does my CellarPro Wine Cooler run constantly?
- M
  Michael CooleyAug 31, 2025
  Your CellarPro Wine Cooler might run constantly due to hot weather, insufficient ventilation, or dirty condenser filters. To resolve this, remove any obstructions to airflow, ensure the condenser filter is clean, and improve cool air supply using a fan, ducting, or exhaust system. You can also try raising the Minimum Set Point on the cooling unit.
N
nicole98Sep 3, 2025
What to do if my CellarPro Wine Cooler is dripping?
- S
  shannon68Sep 3, 2025
  If your CellarPro Wine Cooler is dripping, it could be due to excess moisture from the cooling unit running constantly, a low Minimum Set Point, or a poor seal. First, make sure the condensate overflow drain line isn't blocked, is properly trapped, and the trap is filled with water. Also, check for airtight seals on the cellar door, light fixtures, walls, ceiling, and floor. If the dripping continues, consider raising the Minimum Set Point of the cooling unit.

Summary

Package Contents

Specifications, Cut Sheets, and Cellar Construction

Evaporator Specifications and Cut Sheets

Provides dimensions, weights, and detailed diagrams for evaporator units.

Condensing Unit Specifications and Cut Sheets

Details dimensions, weights, and diagrams for indoor and outdoor condensing units.

Cellar Insulation Requirements

Specifies required insulation ratings (R-values) for walls, floors, ceilings, and doors.

Cellar Ventilation and Airflow

Details on airflow requirements for both indoor and outdoor unit components for proper cooling.

Installation Instructions

Condensing Unit Installation

Guidelines for installing the condensing unit indoors and outdoors, considering ventilation and clearance.

Evaporator Unit Mounting

Procedures for mounting both 3000S/4000S and 3000Sh/4000Sh/6000S/8000S evaporator units.

Refrigeration Lines Installation

Details on installing refrigeration lines, including piping schematics, sizing, and vertical guidelines.

Drainage System Setup

Instructions for connecting the condensate drain line, including trap requirements and overflow prevention.

System Evacuation and Charging

Steps for evacuating the system, detecting leaks, and charging with refrigerant safely.

Installation Best Practices

Key tips and guidelines for ensuring a proper and reliable installation.

Power Supply Requirements

Dual Power; Valve Control Options

Details power supply and wiring for dual power configurations using valve control.

Single Power; Electronic Control Options

Details power supply and wiring for single power configurations using electronic control.

System Wiring Configurations

Explains field power wiring for both dual and single power system configurations.

Important Wiring Notes

Critical considerations regarding wiring, circuit breakers, and compressor heater connections.

Operating Instructions

Operating Overview

General information on optimal conditions for wine storage and unit break-in period.

Temperature Control and Basic Operation

How the unit regulates temperature, set points, and the 3-minute startup delay.

Control Panel Switch Functions

Explains the layout and function of control panel switches and connectors for basic operation.

Control Panel Operation

Details on the digital display, power buttons, and operational indicators of the control panel.

Temperature Adjustment Controls

Explains how to view and adjust set points and temperature differentials using buttons.

Special Operating Modes

Instructions for using Energy Saver and Quick Chill modes for efficient operation.

Remote Control Display Features

Explains digital display, Quick Chill, Auto Defrost, Manual Defrost, Light, and Energy Saver functions.

Networkable Thermostat Integration

Guides for connecting and configuring CellarPro units with networkable thermostats.

Recommended Thermostat Settings

Guidelines for optimizing thermostat settings for wine cellar applications.

Cooling Unit Display Information

Explains the cooling unit's temperature display and alarm indicators.

Advanced Operation Settings

Details on adjusting advanced parameters like humidity, alarms, and differentials.

Troubleshooting

Common Installation Issues

Discusses common causes for continuous running, dripping, and unit not turning on.

Other Troubleshooting Issues

Addresses problems like no cooling, fan issues, iced coils, and pressure errors.

Maintenance and Alarms

Covers routine maintenance for condenser coils and interpretation of unit alarms (P1, HA, LA).

Limited Warranty

Warranty Activation Checklist

Form to be completed by installers to activate the product warranty.

Wiring Diagrams

Appendix A: Model 3000 S;3000 Sh;4000 S;4000 Sh Dual Power Valve Control Wiring

Wiring diagram for dual power/valve control with standard/remote controller.

Appendix B: Model 6000 S Dual Power Valve Control Wiring

Wiring diagram for 6000S dual power/valve control with standard/remote controller.

Appendix C: Model 8000 S Dual Power Valve Control Wiring

Wiring diagram for 8000S dual power/valve control with standard/remote controller.

Appendix D: Model 3000 S;3000 Sh;4000 S;4000 Sh Single Power Electronic Control Wiring

Wiring diagram for single power/electronic control with standard/remote controller.

Appendix E: Model 6000 S Single Power Electronic Control Wiring

Wiring diagram for 6000S single power/electronic control with standard/remote controller.

Appendix F: Model 8000 S Single Power Electronic Control Networkable Thermostat Wiring

Wiring diagram for 8000S single power/electronic control with networkable thermostat.

Appendix G: Models 3000 S;3000 Sh;4000 S;4000 Sh Dual Power Valve Control Networkable Thermostat Wiring

Wiring diagram for dual power/valve control with networkable thermostat.

Appendix H: Model 6000 S Dual Power Valve Control Networkable Thermostat Wiring

Wiring diagram for 6000S dual power/valve control with networkable thermostat.

Appendix I: Model 8000 S Dual Power Valve Control Networkable Thermostat Wiring

Wiring diagram for 8000S dual power/valve control with networkable thermostat.

Appendix J: Models 3000 S;3000 Sh;4000 S;4000 Sh Single Power Electronic Control Networkable Thermostat Wiring

Wiring diagram for single power/electronic control with networkable thermostat.

Appendix K: Model 6000 S Single Power Electronic Control Networkable Thermostat Wiring

Wiring diagram for 6000S single power/electronic control with networkable thermostat.

Appendix L: Model 8000 S Single Power Electronic Control Networkable Thermostat Wiring

Wiring diagram for 8000S single power/electronic control with networkable thermostat.

CellarPro 4000S Specifications

General

Finish	Stainless Steel
Voltage	115V
Phase	1
Hertz	60 Hz
Humidity Control	Yes
UV Protection	Yes
Cooling System Zones	Single Zone
Type	Wine Cooler
Temperature Range	40°F - 65°F
Capacity	40 Bottles
Amps	2.5
Shelving	Wood
Energy Efficiency	Energy Star Rated

Related product manuals

CellarPro 3000S

58 pages
