BIO X6 User Manual v. 1.0 58
4.4.5 Printer settings
In the Printer step you can adjust the printbed temperature, the photocrosslinking settings,
the lights and fan of the chamber. Use temperature control to keep the printbed at a certain
temperature, or turn temperature control off to print at room temperature.
You can check the current temperature of the print chamber at the user interface.
Note: the settings selected in this step will only be applied once the bioprinting process has
started.

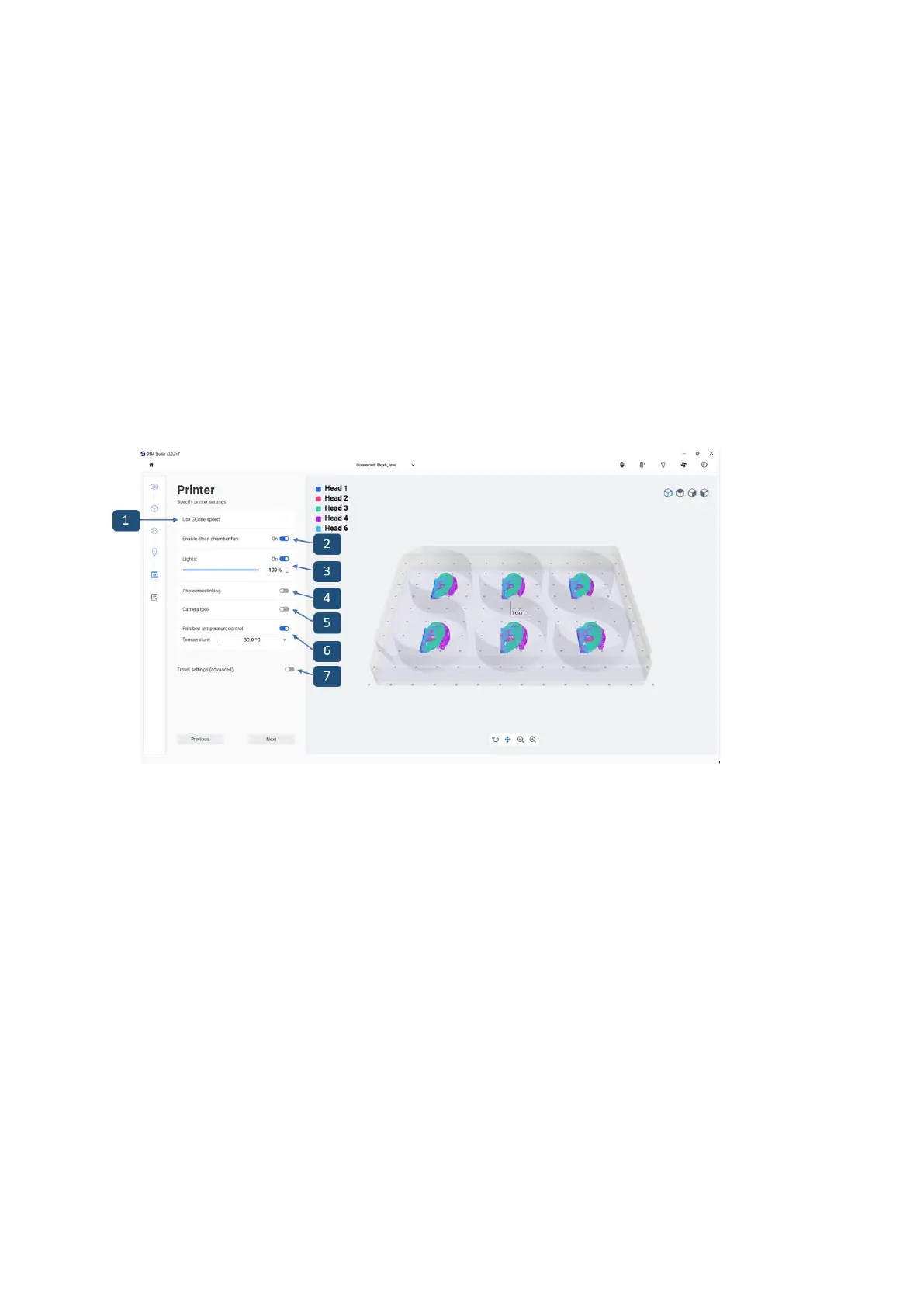

Figure 31 Overview of the Printer step
1. Use Gcode speed: When user use this option, it will overwrite the speed, which user
select from UI during setup, the printer uses the print speed which is written already in
Gcode.
2. Enable Clean Chamber fan: Tap to enable or disable the clean chamber fan. (The
fan will be on right after you are done with the print setup and have clicked on Go to
print. The fan will then be kept on or turned off, depending on your choice).
3. Lights: Tap to enable or disable the interior lights of the BIO X6. If enabled, you can
drag to select the light intensity.
4. Photocrosslinking: Tap to enable or disable a Photocrosslinking scheme. If enabled,
you can indicate the light source (one of the UV curing LEDs or the Photocrosslinking
tool) and the light exposure parameters, such as height above the surface and time.
