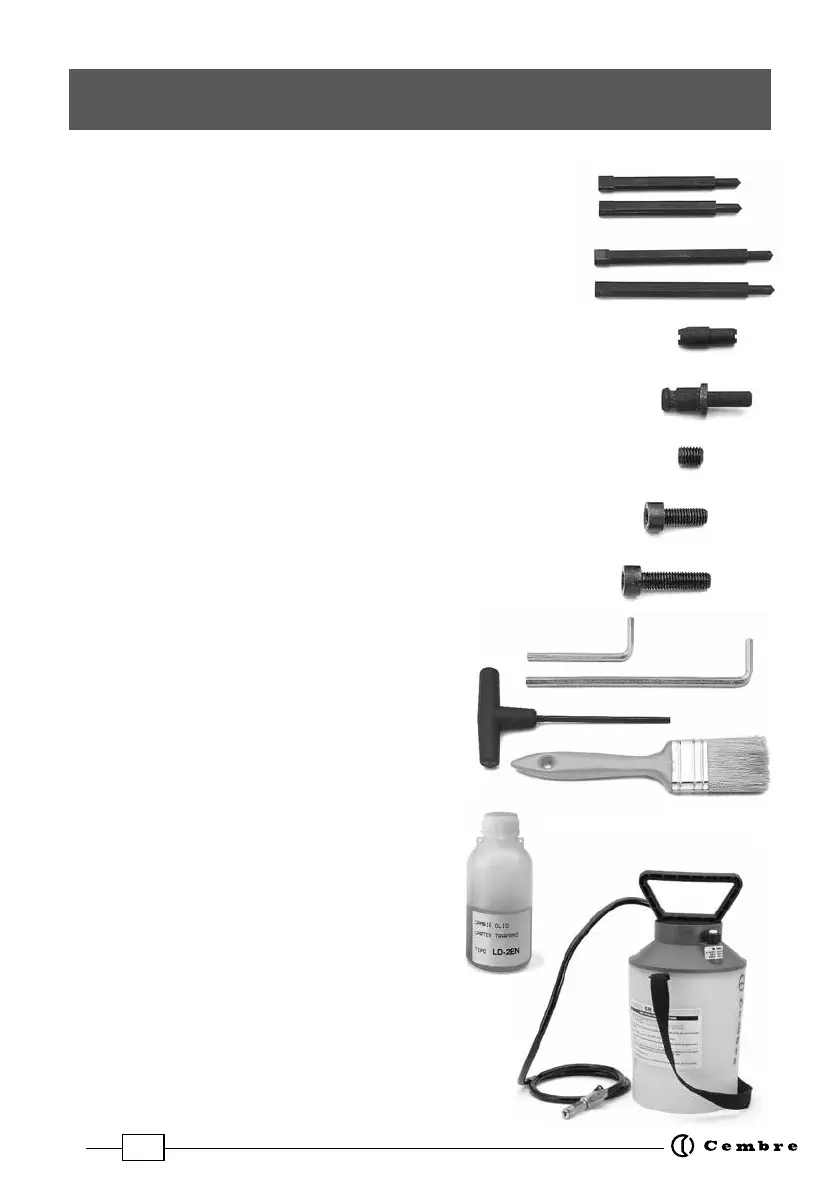

2. ACCESSORIES SUPPLIED WITH THE DRILL
2.1) Guide bits for controlling the coolant system:
for broach cutters suitable for drilling thicknesses of up to 25 mm
– 1 pc PP 1, diameter 7 mm.
– 1 pc PP 2, diameter 8 mm.
for broach cutters suitable for drilling thicknesses of up to 50 mm
– 1 pc PPL 1, diameter 7 mm.
– 1 pc PPL 2, diameter 8 mm.
2.2) Spacer, type DPE, for controlling the coolant system, for special
spiral bits, diam. 7 ÷ 27,5 mm.
2.3) Adaptor, type ARE, for external coolant connection, to be used
with the SR5000 coolant unit.
2.4) Grub screw, M8x10
– 4 pcs for clamping cutters or bits on spindle shaft.
2.5) Socket head cap screws, M6x16
– 4 pcs for securing drilling jigs to front plate.
2.6) Socket head cap screws, M6x25
– 4 pcs for securing special drilling jigs to front plate.
2.7) Range of tools:
– 1 pc 5 mm Allen key.
– 1 pc 6 mm Allen key.
– 1 pc 4 mm Allen key, with handle.
– 1 pc brush.
2.8) 140 ml oil bottle for gear sump.
Parts 2.1 to 2.8 are included in "ACCESSORIES KIT",
Code No 6001357.
2.9) Type SR5000 coolant unit.
