2. If using the Laser Level with the Tripod (3), thread the Tripod Stud located on the
Tripod Neck into the bottom of the Laser Level. The Tripod swivels 360 degree.
Position the Tripod on a flat, level, dry ground surface. Extend the Legs of the
Tripod and lock the Legs in place. Level the Tripod Neck (4), using the Level Vial
(4) located on the Tripod Head. Then, lock the Tripod Neck in position with the
Thumb Screw (6). (See Figure B.)
3. The Laser Level may also be installed on a wall surface without the Tripod (3).
To do so, use the Wall Bracket (7) to secure the Laser Level to the wall. Use the
wall bracket as a template. Mark drill holes and always check before drilling to
make sure there are no hidden electrical wires or cables in the drilling path.
Secure the Laser Level to the wall surface using screws and plastic anchors (not
included). (See Figure A.)
4. Level the Laser, using a Leveling Knob (8) located on each side of the Laser and
the two Level Vials (9) located at the top of the Laser. (See Figure C.)

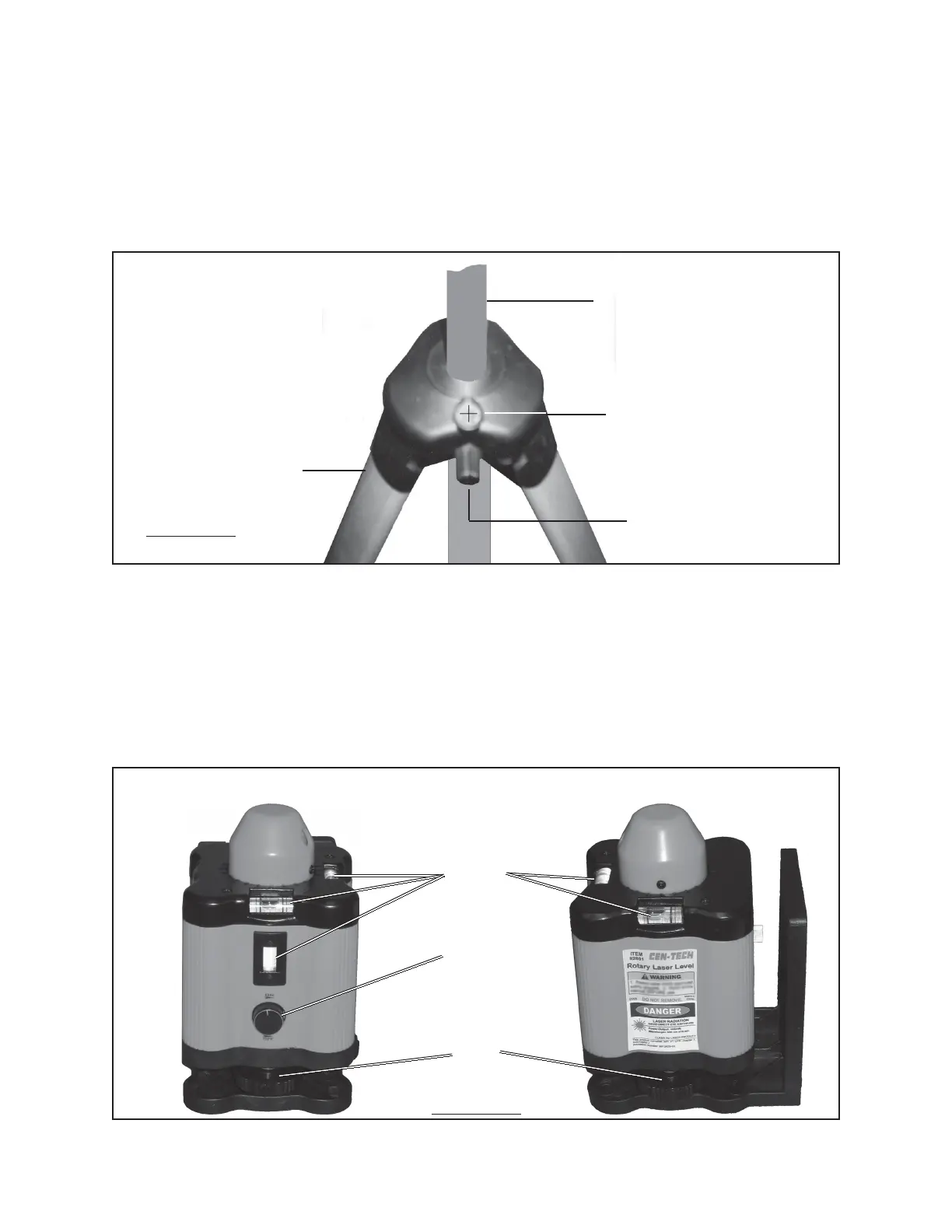

THUMB SCREW
(6)
LEVEL VIAL
(4)
TRIPOD NECK
(4)
FIGURE B
TRIPOD (3)
LEVEL
VIALS (9)
LEVELING
KNOB
(8)
FIGURE C
ROTATION
SPEED
CONTROL
(10)
RIGHT SIDE VIEW LEFT SIDE VIEW
