AUTORANGING INSULATION TESTER
instruction manual
2

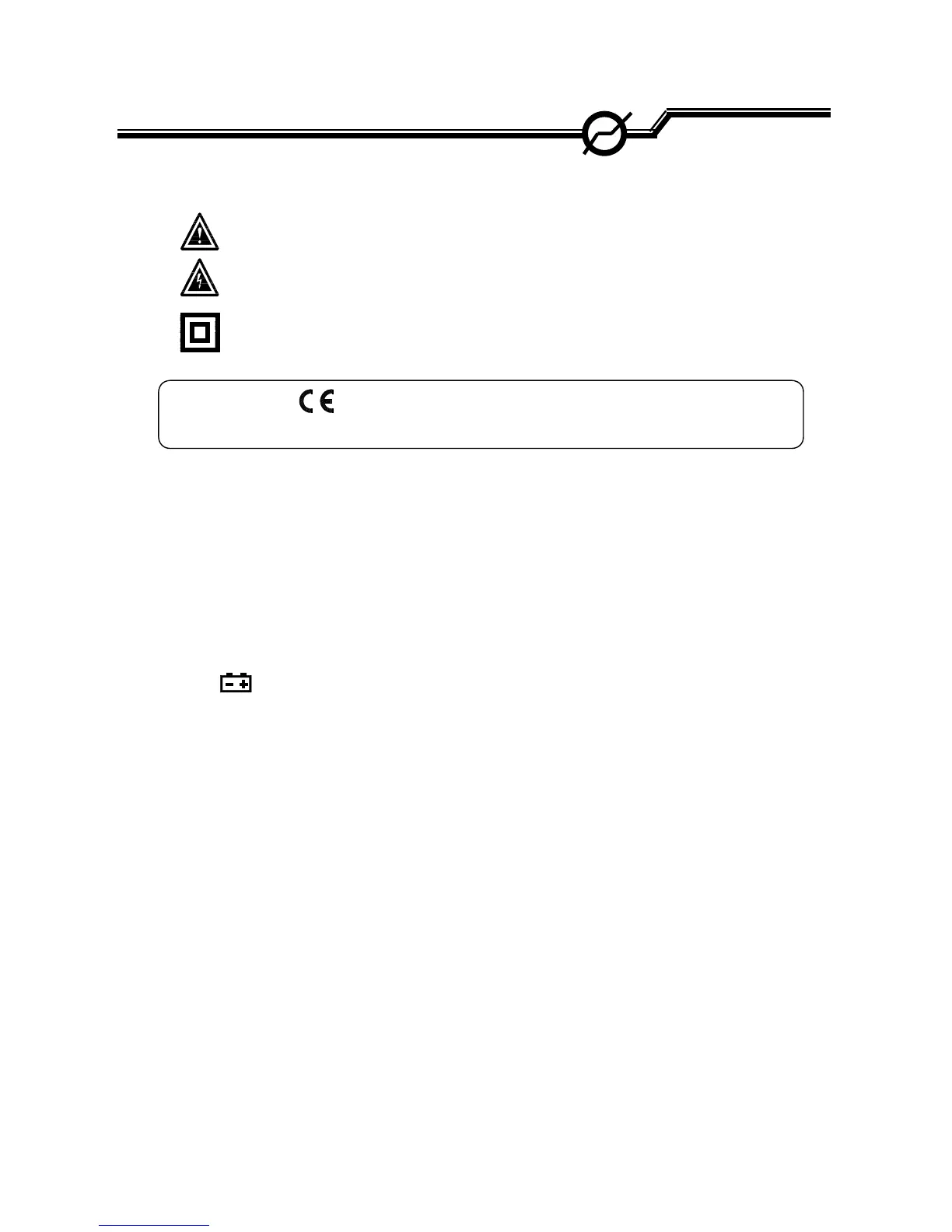

Safety symbols:
Caution (Refer to this manual before using the meter)
Dangerous voltages, risk of electric shock.
Meter is protected throughout by double insulation.
When servicing, use only specified replacement parts.
Approvals: EN-61010-1 600V CAT III 1000V CATII
VDE 0413
II. GENERAL SPECIFICATION:
Display:
76×42mm Big LCD Panel with 40 segments analog Bar Indication.
Over range Indication:
“OL” will be shown on the LCD Panel when out of range
measurement is made.
Low Battery Indication:
The will be show when the battery need to be changed.
Sampling Rate:
2.5 times/sec Digital Display; 10 times/sec Bar Graph
Power Source:
1.5V AA size Battery × 8
Operating Temperature and Humidity:
0℃ to 40℃ ( 32℉ to 104℉ ), bellow 80% RH
Storage Temperature:
-10℃ to 60℃ ( 14℉ to 140℉ )
Dimension:
196(L)× 112(W)× 64(H)mm ; 7.72(L) × 4.41(W) × 2.52(H)inch
Weight:
Approx. 700g(with battery)
Accessories:
Test Lead, Large Jaw Alligator Clips, Battery, Instruction Manual,
Carry Case.
