High level safety switch
maximum is 3 Amp and MUST
be fitted.
Electrical Connections:
This pump is designed to sit level on its base or
be fitted level to a vertical surface.
INSTALLATION
IMPORTANT
1 This appliance should ONLY be fitted and serviced by a
competent & qualified installer.
2 This appliance must be provided with means for
disconnection that is incorporated into the fixed wiring in
accordance with the relevant local wiring regulations.
3 If the supply cord is damaged the pump should be replaced.
4 This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
5 THIS APPLIANCE MUST BE EARTHED.
Brown Live
Blue Neutral
Green/yellow Earth
Black N/C
Black Common
3A Hi-Level Safety Switch:
CHECK Suitable
boiler capacity
CHECK Water tight
connections
CHECK High water
level safety switch
CHECK 1 Amp
fuse installed
INSTALLATION CHECKLIST
3

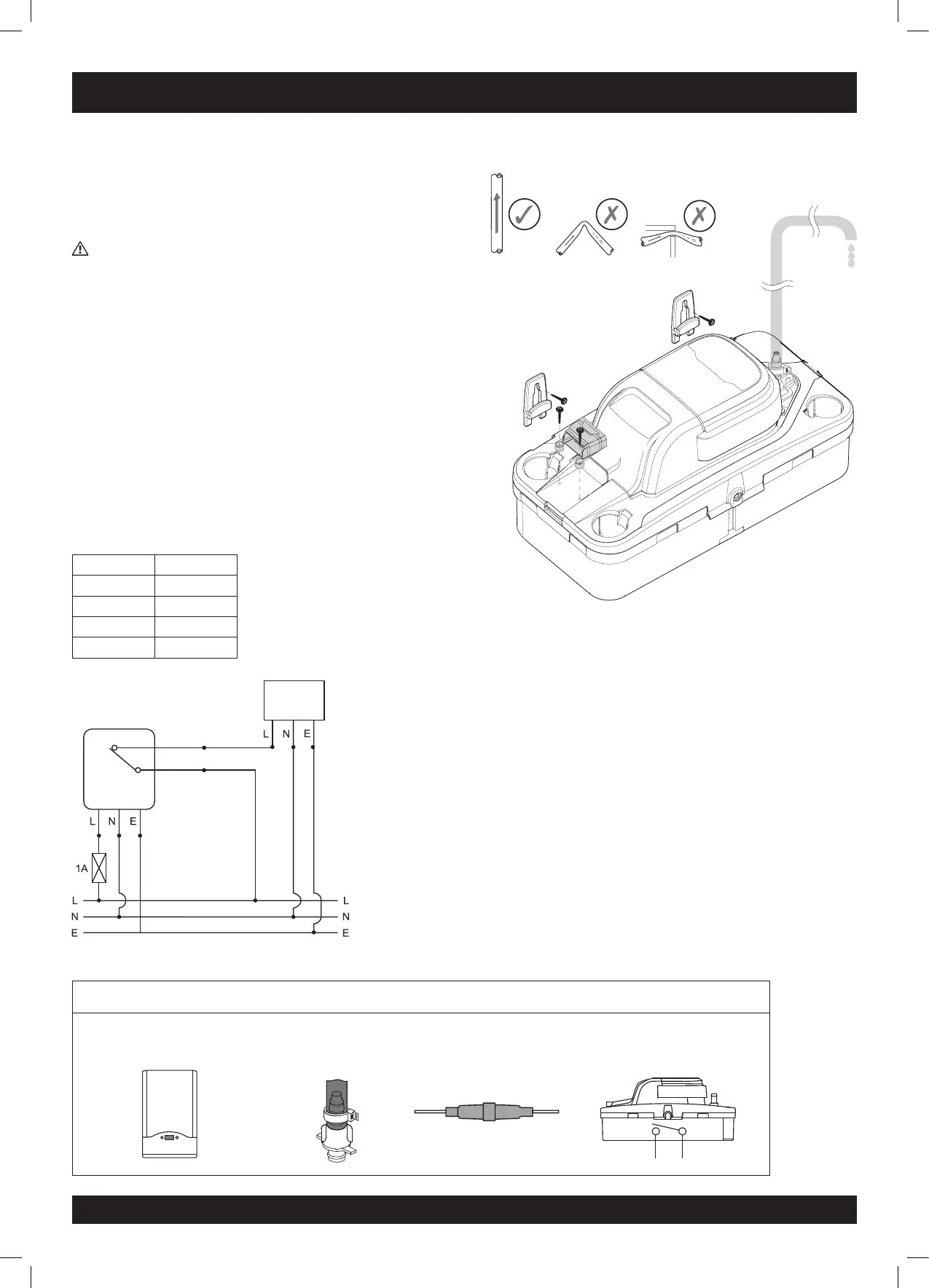

Boiler Condensate Pump - Installation Guide
Information correct at the time of going to press.
MAX 3 AMP
BOILER
PUMP
