ASSEMBLY
You will need a 3/8" and an 11/16" wrench to complete assembly.
Step 1. Take LOWER HANDLE (#20) and remove the HEX HEAD BOLT (#19).
Step 2: Insert the fitted end of the UPPER HANDLE (#18) into LOWER HANDLE. Rotate
HANDLES until the bolt holes line up in the center of the Handle Assembly.
Step 3: Insert HEX HEAD BOLT (#19) and tighten with a 3/8" wrench as shown in
Figure 1.
Step 4: Remove HANDLE BOLT (#17) from the HANDLE SOCKET .
Step 5: Insert Handle Assembly into HANDLE SOCKET and turn Handle Assembly
clockwise until it engages the pressure release gear located underneath the HANDLE
SOCKET.
Step 6: Thread HANDLE BOLT into HANDLE SOCKET and tighten with 11/16" wrench
as shown in Figure 2.
(#18)
(#19)
(#20)
(#17)
LOWER HANDLE
HEX HEAD BOLT
UPPER HANDLE
HANDLE BOLT
HANDLE SOCKET
HANDLE ASSEMBLY

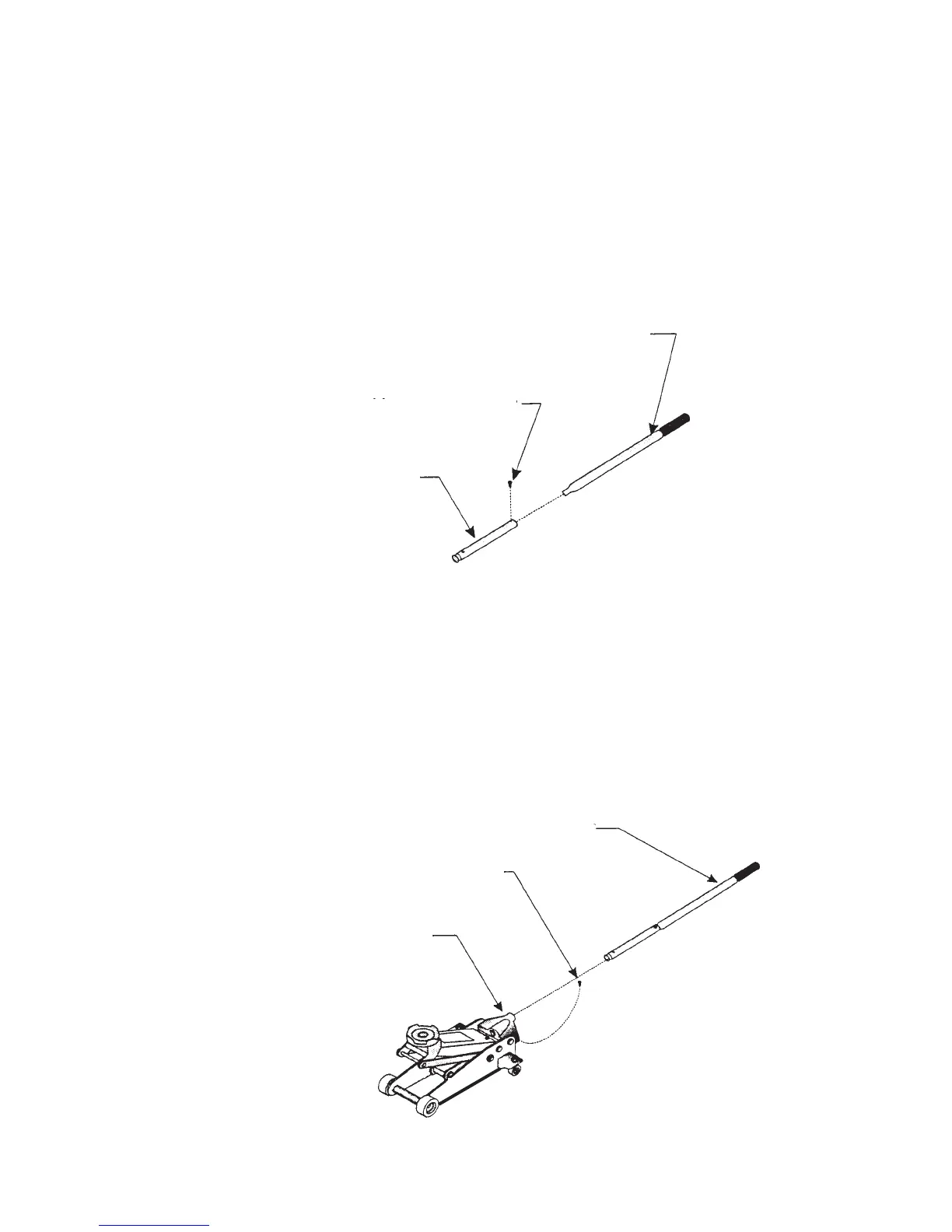

FIGURE 1
FIGURE 2
