Page 6 For technical questions, please call 1-888-866-5797. Item 40211
SAFETY OPERATION MAINTENANCEINSTALLATION
Specifications
Electrical Rating 110 - 120VAC / 60Hz /
Horsepower 1/4 HP
Air Inlet / Outlet Size 1/2" Steel Pipe -14 NPT
Recommended Operating Pressure 100 PSI
Max. Operating Pressure 140 PSI
Flow Capacity 21.6 CFM
R-134A Refrigerant Pressure / Temp Range 32 - 39 PSI (2 - 8° C)
Note: This Compressed Air Dryer uses R-134A Refrigerant.
Note: Not for medical use. Do not use for hyperbaric chambers.
Installation
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch “OFF” and unplug the Air Dryer from its electrical
outlet before assembling or making any adjustments to the dryer.
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.

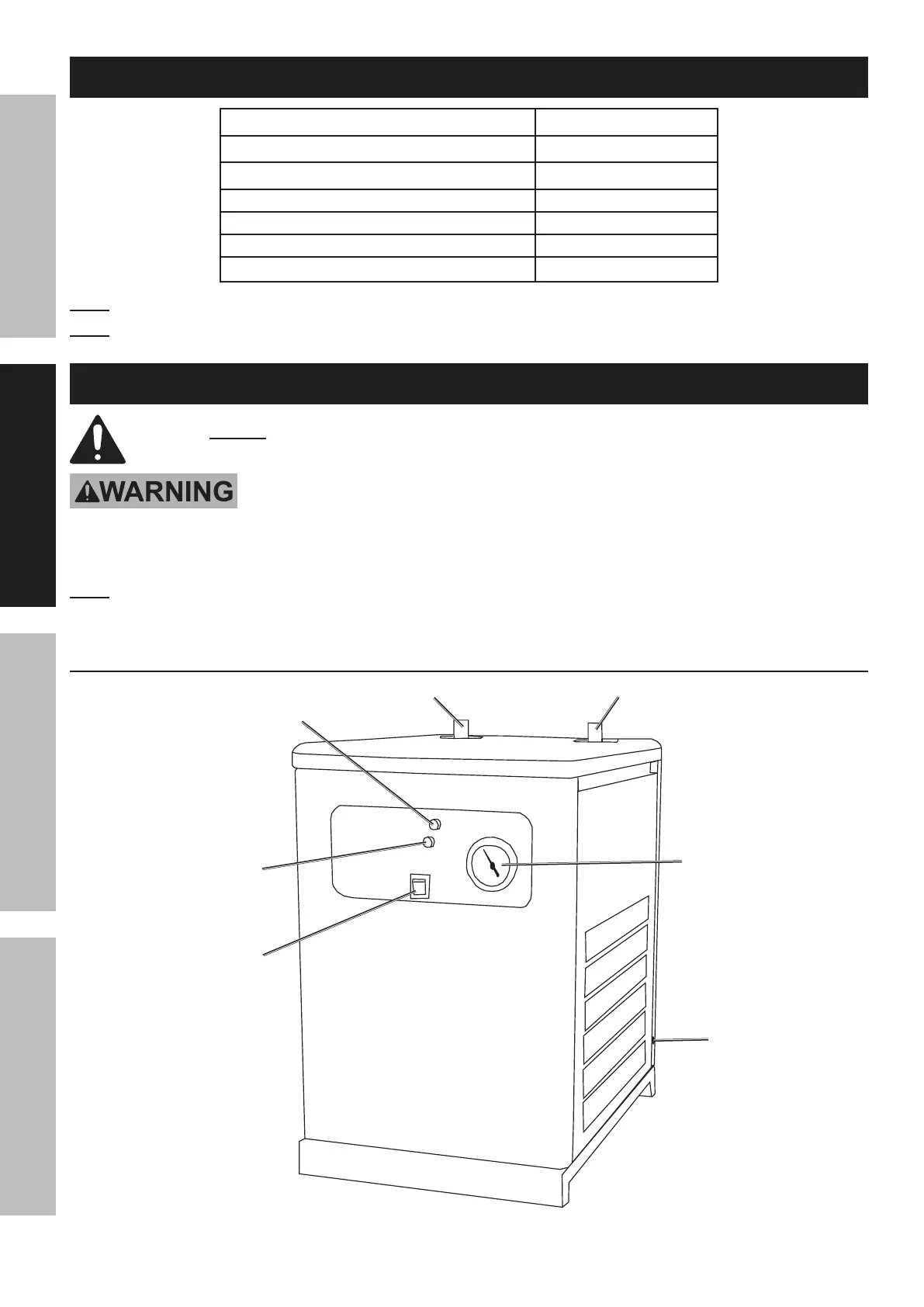

Functions
Power
Switch
Gauge
Power
indicator
Error
Indicator
Air Inlet Air Outlet
Drain
