Page 8SKU 41209 For technical questions, please call 1-800-444-3353.
2. Check the Magazine Post (95) inside the Magazine (92). The Magazine Post can
be adjusted up and down to use various lengths of nails from 7/8” to 1-3/4”:
A. 7/8” Long Nails
(Use top setting).
B.
1”, 1-1/4”, and 1-1/2” Long Nails
(Use middle setting).
C.
1-3/4” Long Nails
(Use bottom setting).
MAGAZINE COVER
(101)
MAGAZINE COVER (101)
(TURN TO ADJUST)
MAGAZINE (92)
MAGAZINE (92)
NAILS

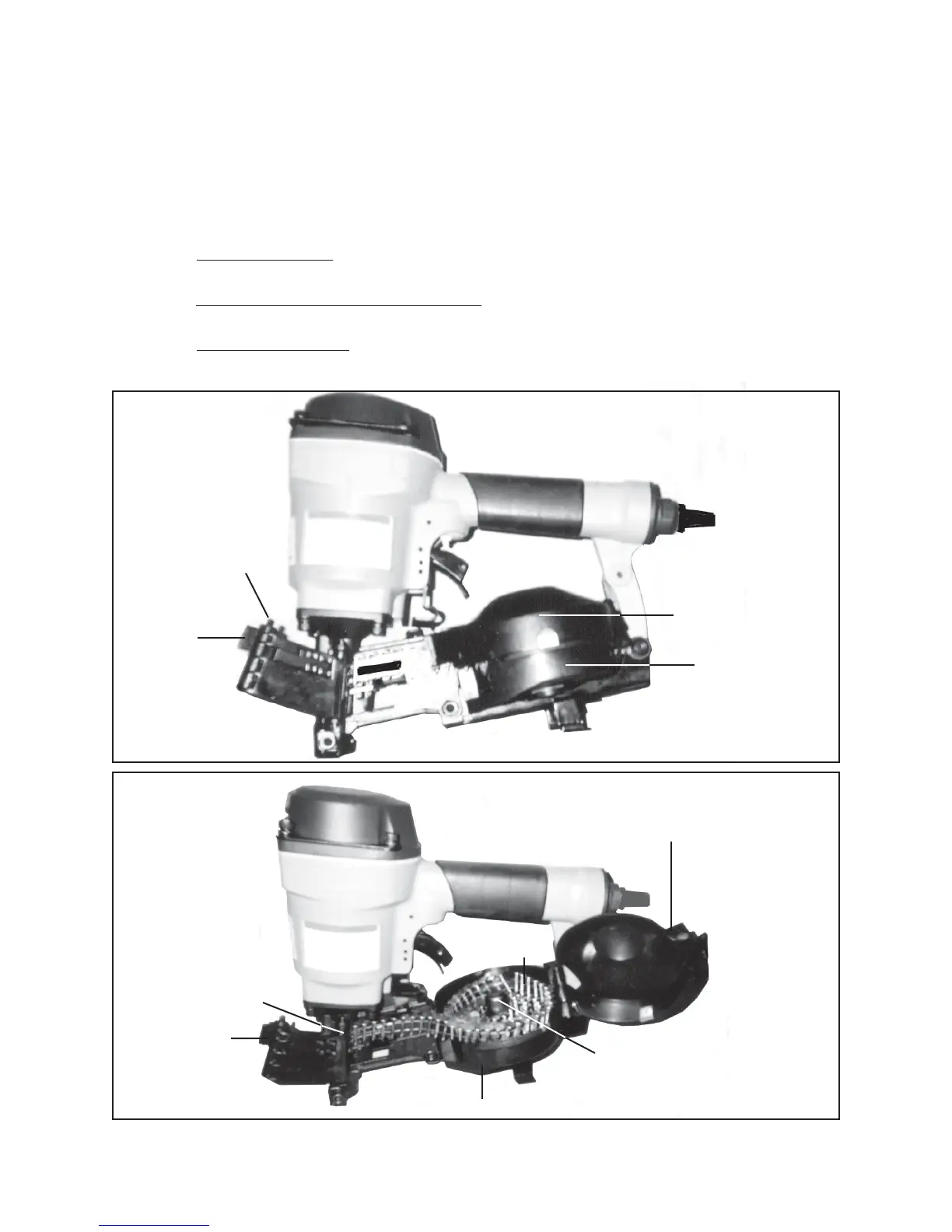

1. To open the Magazine (92), press down on the Cover Hinge Pin (99) and swing
the Door (80) open to open the Magazine Cover (101).
MAGAZINE POST (95)
DOOR
(80)
DOOR
(80)
DOOR HINGE PIN (74)
FEED PAWL (61)
