SKU 47077 For technical questions, please call 1-800-444-3353. Page 8
NOTE: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.

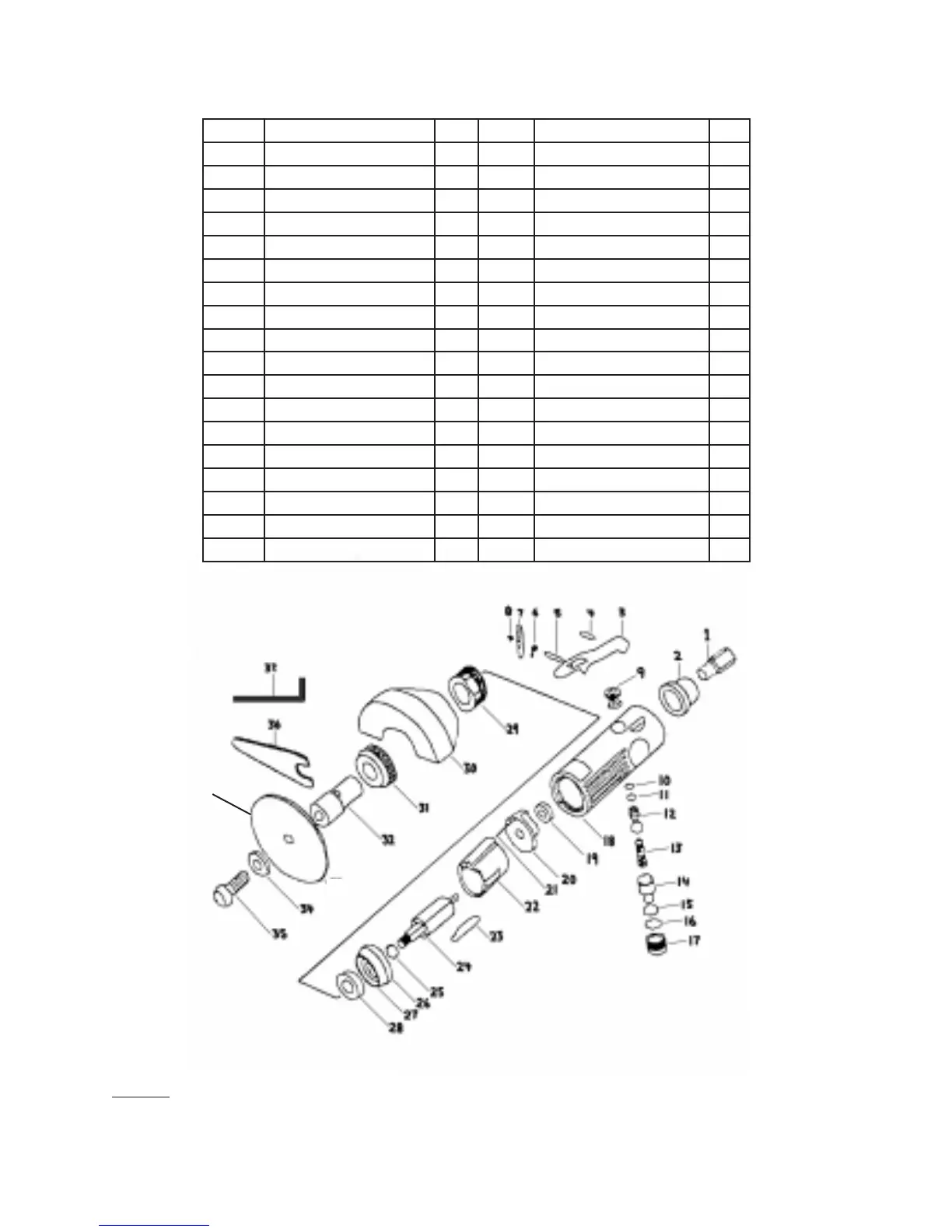

PARTS LIST / ASSEMBLY DIAGRAM
Part # Description Qty Part # Description Qty
1 Inlet Bushing 1 19 Bearing 1
2 Exhaust Deflector 1 20 Rear End Plate 1
3 Throttle Lever 1 21 Spring Pin 1
4 Spring Pin 1 22 Cylinder 1
5 Spring Pin 1 23 Rotor Blade 4
6 Spring 1 24 Rotor 1
7 Safety Lock 1 25 Washer 1
8 Washer 1 26 Spring Pin 2
9 Valve 1 27 Front End Plate 1
10 O-Ring 1 28 Bearing 1
11 O-Ring 1 29 Retainer 1
12 Throttle Valve 1 30 Protection Guard 1
13 Spring 1 31 Housing Cap 1
14 Air Regulator 1 32 Spindle 1
15 O-Ring 1 34 Flange 1
16 O-Ring 1 35 Hex Bolt 1
17 Valve Screw 1 36 Spanner 1
18 Housing 1 37 Hex Key Wrench 1
(not included)
