SKU 94585 For technical questions please call 1-800-444-3353. Page 10
Step 4: Twice a month, apply a few drops of oil to the Jaws and REVERSE VALVE (#24) as
shown in Figure 6. Open and close the Jaws a few times to lubricate.
ir Inlet
(#31)
Trigger
(#20)
Jaws
Reverse Valve
(#24)

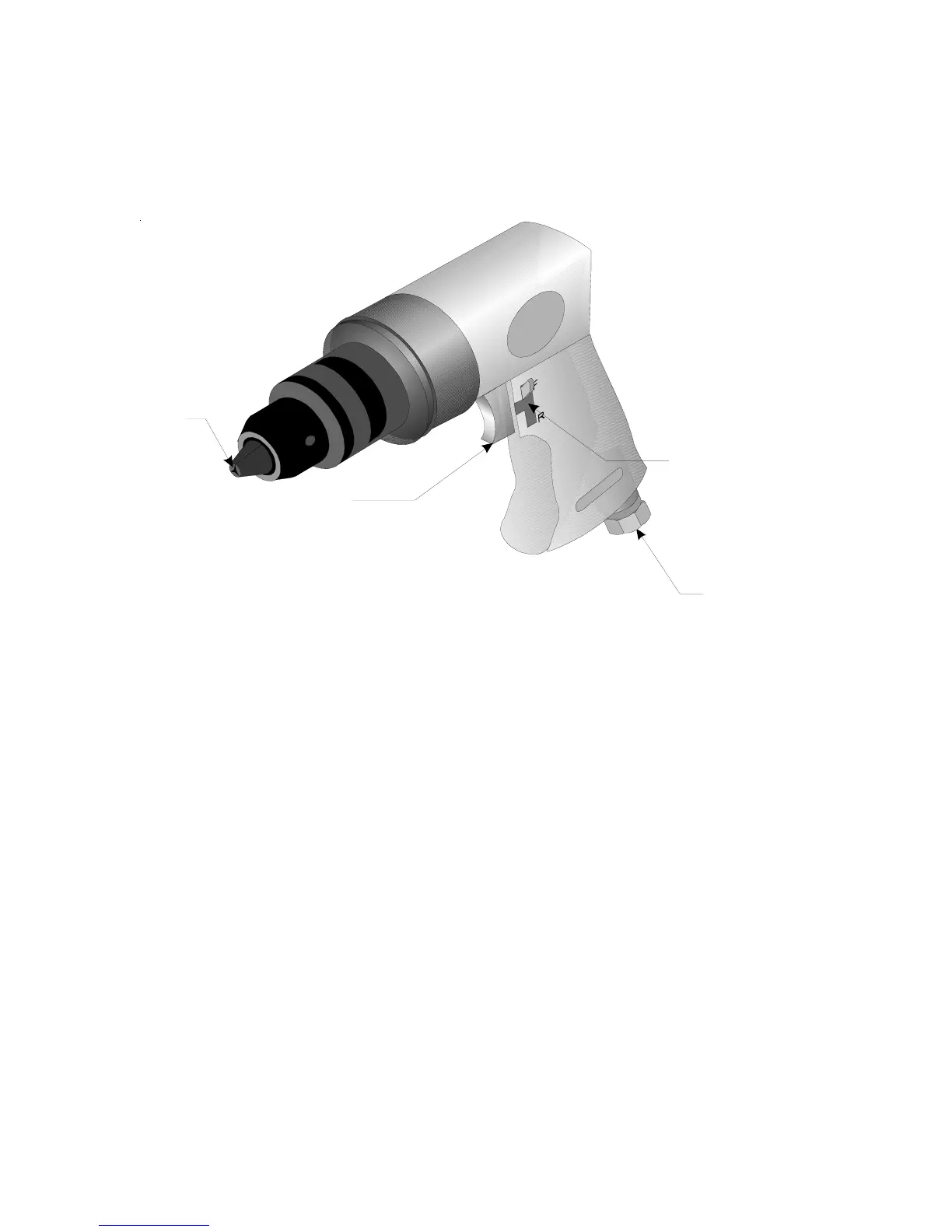

Figure 6 — Lubrication Points
PARTS LIST
Item Description QTY Item Description QTY
1 Flat head socket cap screw 1 16 Motor Housing 1
2 Drill Chuck 1 17 Cup Point Set Screw 1
3 Clamp Nut 1 18 Trigger 1
4 Flat Washer 1 19 Valve Spring 1
5 Ball Bearing 2 20 Reverse Valve 1
6 Planet Gear Carrier 1 21 O-Ring 1
7 Planet Gear with Bushing 3 22 Reverse Valve Bushing 1
8 Internal Gear 1 23 Throttle Valve 1
9 Bearing Case 1 24 O-Ring 1
10 Ball Bearing 2 25 O-Ring 1
11 End Plate 2 26 Roll Pin 1
12 Rotor 1 27 Exhaust Diffuser 1
13 Rotor Blade 5 28 Self-Tapping
14 Cylinder 1 Button Head Screw 2
15 Motor Alignment Pin 1 29 Air Inlet with Screen 1
30 Chuck Key 1
NOTE: Some parts are listed and shown for illustration purposes only, and are not available
iindividually as replacement parts.
(#18)
(#20)
(#29)
