Centro 3900S - Propane Parts List; Propane Exploded Diagram

2 3

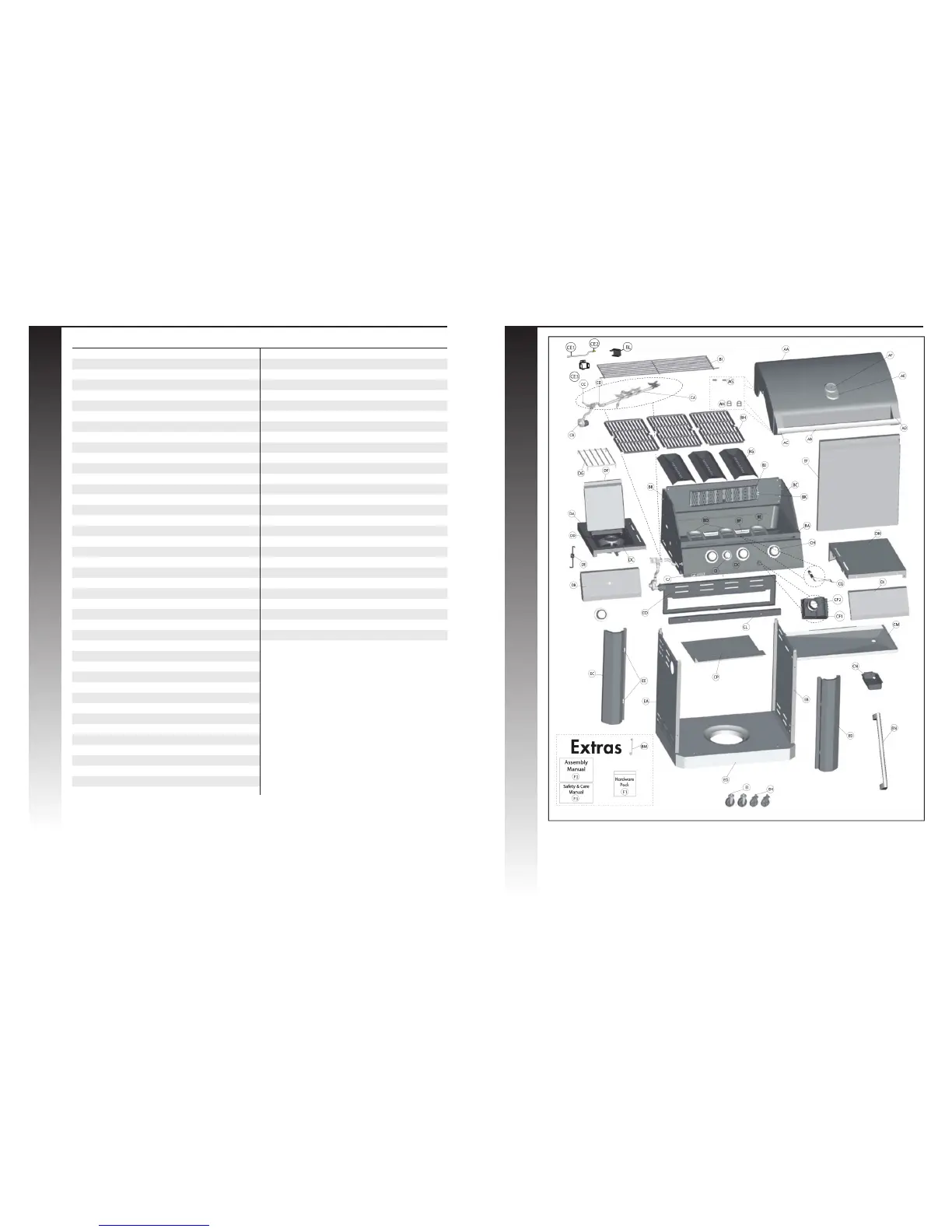

PARTS LIST (PROPANE) FOR 85-3010-6 (G51207) EXPLODED DIAGRAM (PROPANE) FOR 85-3010-6 (G51207)
Item Qty. Description Part No.
CO 1 Upper Back Panel G512-0036-01
CP 1 Heat Shield G512-0026-01
DA 1 Side Shelf Table- Left G512-0600-01
DB 1 Side Shelf Fascia- Left G617-0030-01
DC 1 Side Burner Drip Pan G617-0035-01
DD 1 Side Burner G433-1400-01
DE 1 Electrode Set, Sideburner G433-0047-01
DF 1 Lid- Sideburner G501-0070-01
DG 1 Cooking Grate, Sideburner G501-0077-01
DH 1 Side Shelf Table- Right G512-0500-01
DI 1 Side Shelf Fascia-Right G617-0026-01
EA 1 Cart Side Panel-Left G512-0700-01
EB 1 Cart Side Panel, Right G512-0800-01
EC 1 Pillar, Left G512-1600-01
ED 1 Pillar, Right G512-1700-01
EE 2 Magnet Assembly G501-0016-01
EF 1 Door Assembly G512-5200-01
EG 1 Bottom Shelf G512-0900-01
EH 2 Wheel with Lock G401-0061-01
EI 2 Wheel G606-0027-01
F1 1 Hardware Pack
G512-B006-01
F2 1 Instruction Manual
G512-M007-01
F3 1 Safety & Care Manual
G412-M004-02
F4 1 Tank Screw G505-0047-01
Item Qty. Description Part No.
AA 1 Top Lid G512-2900-01
AB 1 Lid Handle G512-0001-01
AC 1 Lid Handle End Cap-Left G617-0004-01
AD 1 Lid Handle End Cap-Right G617-0005-01
AE 1 Logo Plate G412-0001-01
AF 1 Thermometer G412-0003-01
AG 2 Screw for Top Lid G501-0005-01
AH 2 Lid Bumper G508-0063-01
BA 1 Burner Box Assembly G512-0200-01
BB 1 Upper Side Panel- Left G617-0500-01
BC 1 Upper Side Panel- Right G617-0600-01
BD 2 Main Burner-A G607-0700-A1
BE 1 Main Burner-B G502-1800-A1
BF 1 Carryover Assembly G502-0012-01
BG 3 Flame Tamer G617-0019-01
BH 3 Cooking Grate, Burner Box G512-0028-02
BI 1 Warming Rack G512-0004-01
BJ 1 Rotisserie Burner G501-B100-01
BK 1 Electrode Set, Rotisserie Burner G508-0009-01
BL 1 Wind Shield, Rotisserie G501-00B1-01
BM 1 Match Holder G608-0019-01
BN 1 Towel Bar G511-0050-02
CA 1 Manifold Assembly G512-4400-01
CB 1 Regulator G433-0034-01
CC 1 Valve, Sideburner G512-0034-01
CD 1 Metal Hose, Sideburner G608-0039-01
CE1 1 Rotisseries Flexible Hose G411-0013-01
CE2 1 Rotisseries LP Ori ce G601-0055-03
CE3 1 Rotisseries Burner Collector Box G501-00C1-01
CF1 1 Electronic Igniter Assembly G508-0075-01
CF2 1 Electronic Ignition Button G501-0072-01
CG1 1 Electrode Set, Main Burner G617-0017-01
CG2 1 Ground Wire, Main Burners G602-0024-01
CH 3 Control Knob Assy G412-4500-01
CI 1 Rotisserie Knob Assy G617-4200-01
CJ 1 Series Logo G512-0032-01
CK 1 Control Panel G512-0017-02
CL 1 Front Brace G512-0043-01
CM 1 Grease Tray G512-1000-01
CN 1
Grease Cup G416-0015-01
