Centro 3900S - Cart and Shelf Assembly; Top Lid, Burner Box, and Back Panel Attachment; Right Side Shelf Assembly

8 9
5
6
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS
YOU WILL NEED:
7
8
2 4 5

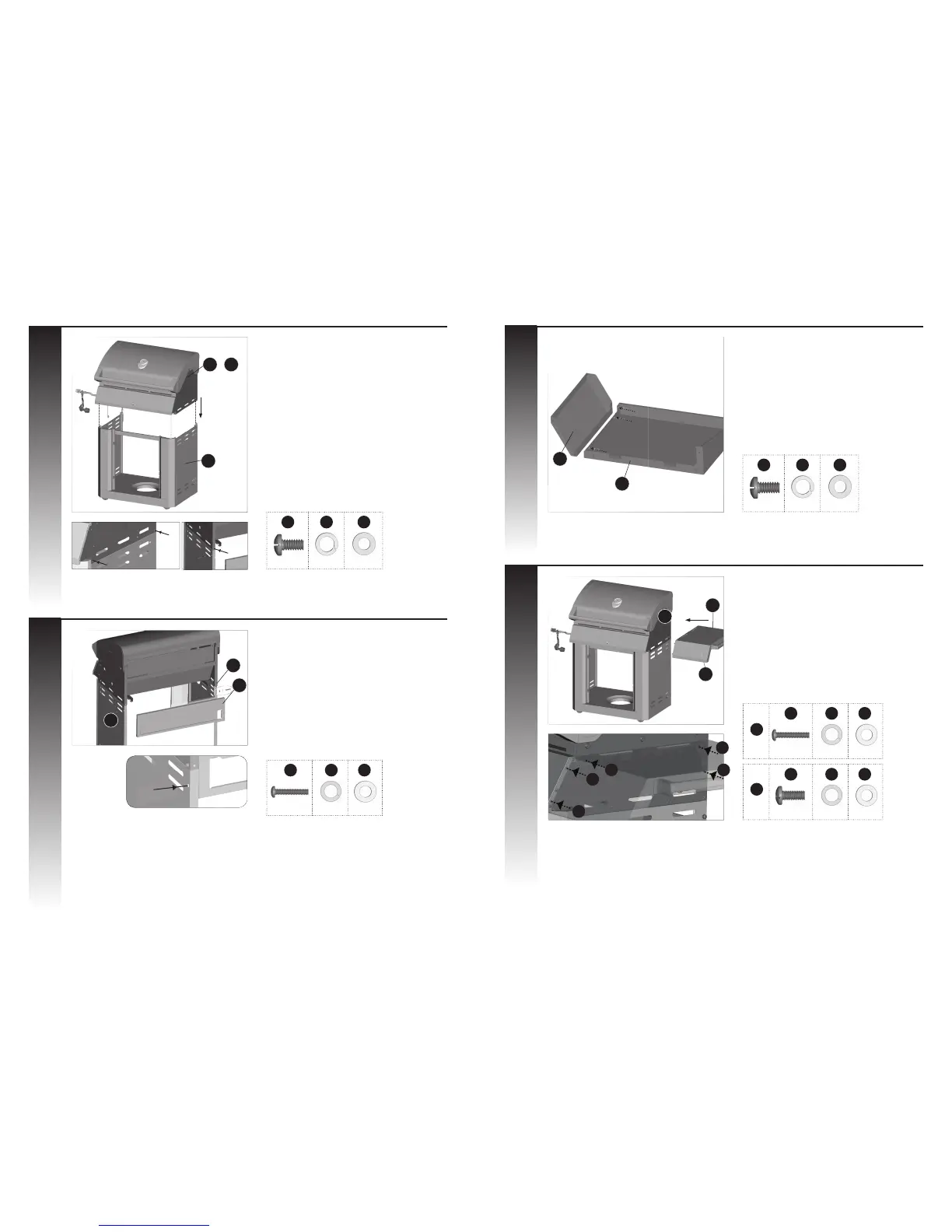

a. Position the top lid and burner box assembly
(A and B) onto cart assembly (C) as shown.
b. Use the hardware to connect both parts, on
the left and right sides, at the three points
indicated in Figure B and C.
THIS STEP REQUIRES 3 OR MORE PEOPLE.
DO NOT ATTEMPT ALONE. EXTREMELY
HEAVY.
B C
A
Attach the upper back panel (CM) to both the left
and right side panels (EA and EB).
Only install hardware in the bottom portion of the
back panel, as shown in  gure B.
DO NOT TIGHTEN SCREW UNTIL SIDE SHELF HAS
BEEN INSTALLED
CO
Back view
EB
EA
A + B
C
B
Attach the right side shelf fascia (DI) to the right
side shelf table (DH), as shown.
DI
DH
TIP: To position the right side shelf, insert the two
hooks on the side shelf assembly into the two
openings located on the right upper side panel
(BC).
Assemble the right side shelf assembly to the cart
assembly, as shown in  gure B.
DH
DI
*
B
BC
876
YOU WILL NEED:
6 7 8
X 6
X 2
X 6
X 2
X 6
X 2
876
YOU WILL NEED:
6 7 8
X 3 X 3 X 3
YOU WILL NEED:
A
A
B
B
B
B
B
2
3
4
4
5
5
X 1X 1X 1
X 4 X 4 X 4
