THC_RX Features

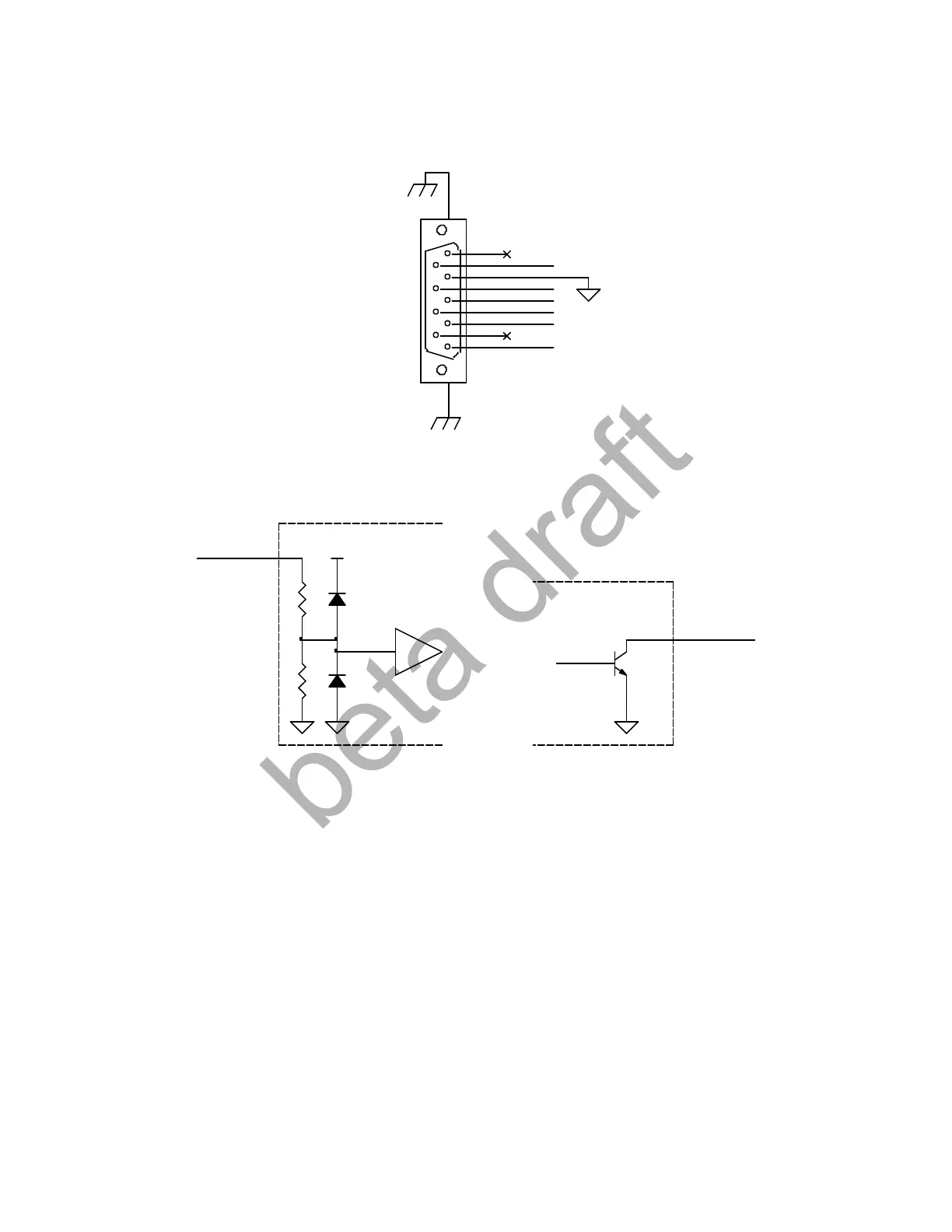

THC_RX drives encoder-like signals to a compatible control’s encoder input. A straight-through cable connects
THC_RX H3 to a Centroid control’s DE9 encoder connector. Auxiliary inputs and outputs are available on THC_RX for
future expansion.
+Z
-A
+A
+B
5
9
4
8
3
7
2
6
1
1011
-B
-Z
+5 VDC
Auxiliary Inputs
Internal Circuitry
INPUT
Internal Circuitry
Auxiliary Outputs
OUT P UT
