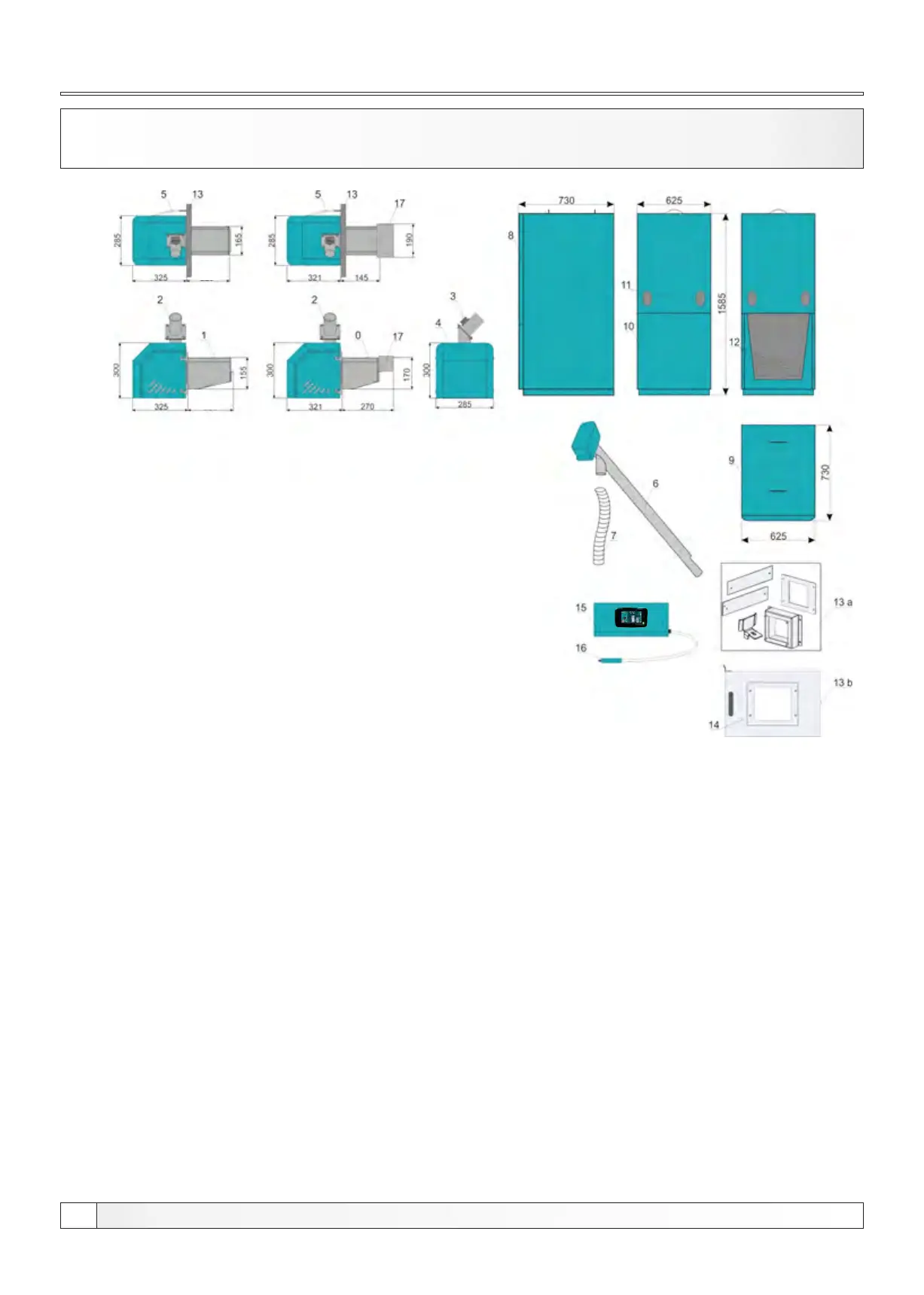

EQUIPMENT COMPONENTS FOR PELLET BURNINGS
CM PELET-SET
Legend:
0. pellet burner CPPL-14 (only for EKO-CK P 20)
1. pellet burner:
- CPPL-35 (for boilers EKO-CK P / EKO-CKB P 25-40, CK / EKO-CKB 20-40),
- CPPL 50 (for boilers EKO-CK P / EKO-CKB P 40-50, CK / EKO-CKB 40-50)
2. pipe fitting for connecting the flexible pellet supply pipe
3. backfilling sensor / temperature gauge on inlet tube that
is installed tube for connecting of pellet feeding flexible
tube (backfilling sensor is detailed in the
Technical instructions for use and maintenance)
4. burner cover
5. plastic and silicone pressure switch pipe
6. feeder with electric motor CPPT CPPT / CPPT-50
7. pellet feeder flexible tube
8. pellet tank CPSP
9. cover of opening for filling the pellet tank
10. lower lid for tank cleaning
11. opening for pellet feeder
12. openings for tank cleaning
13.a) set for installation of pellet burner (only new boiler models)
13.b) lower boiler door adapted for pellet burner CPDV
(for boilers EKO-CK P / EKO-CKB P (EKO-CK/CKB))
(only old boiler models)
14. connector for pressure switch silicone pipe on the lower boiler door CPDV
15. boiler control unit CPREG-Touch
16. micro switch for lower boiler door
17. ceramic nozzle (only CPPL-14)
220
260
220 (CPPL-35)
260 (CPPL-50)
CPPL-35
CPPL-50
80°C
120°C
0%
1700
15k
30%
60°C
70°C
50°C
55°C
Equipment components
Technical instructions CONTROLLER - CPREG-Touch
4
