Centurion G-SPEAK - Page 23

page 20

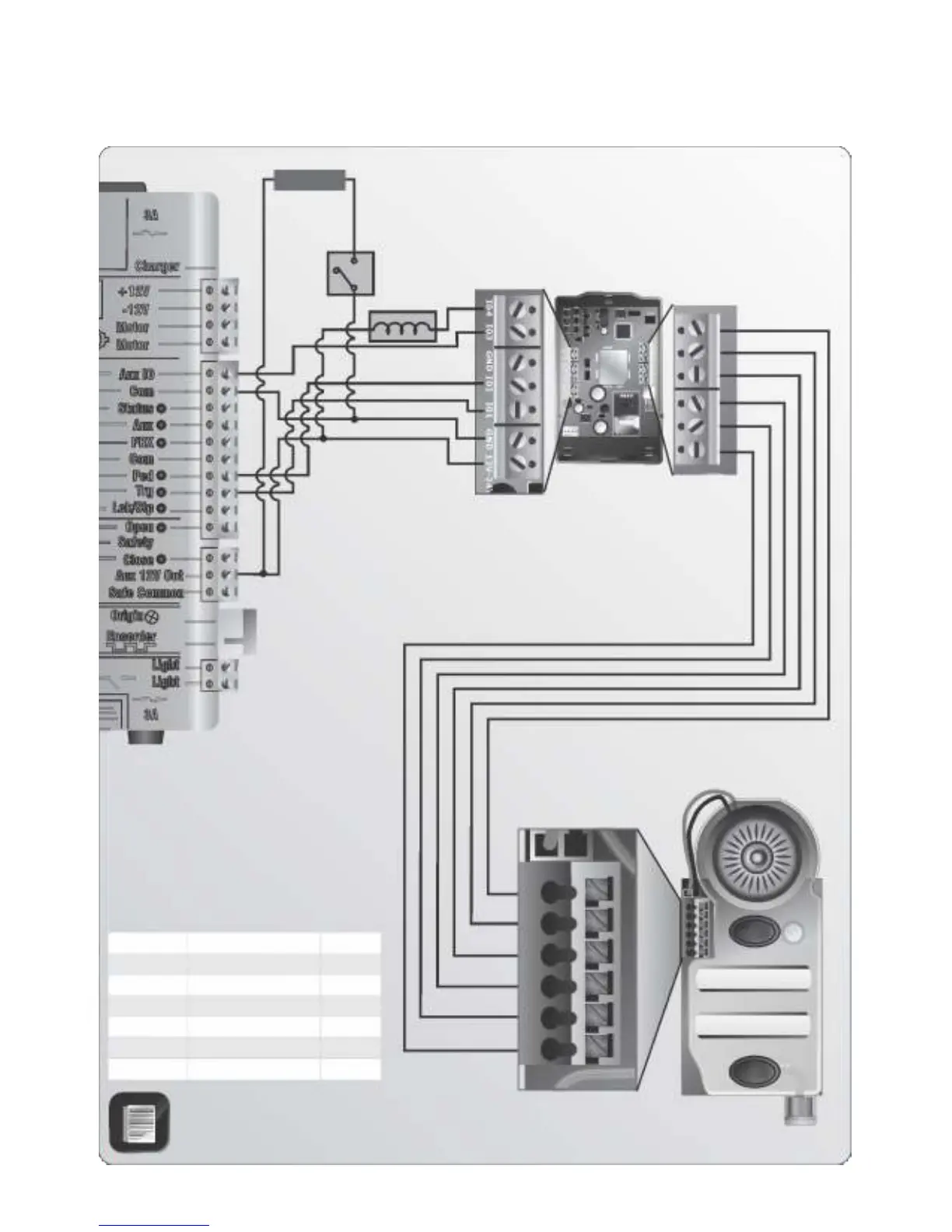

FIGURE 30. WIRING DIAGRAM
D5-Evo
Calling
Module
Solenoid
lock
GSM controller
Terminal
P1
P2
P3
P4
P5
P6
Description
Power + and Call
Power - and Call
Speaker 1
Speaker 2
Mic 1
Mic 2
Colour
Use the table below for colour allocation
when connecting the wires
2
It is recommended that 0.5mm
multi-stranded shielded cable is used
P1P2P3P4P5P6
P1P2P3P4P5P6
