Ceriotti C3000 User Manual

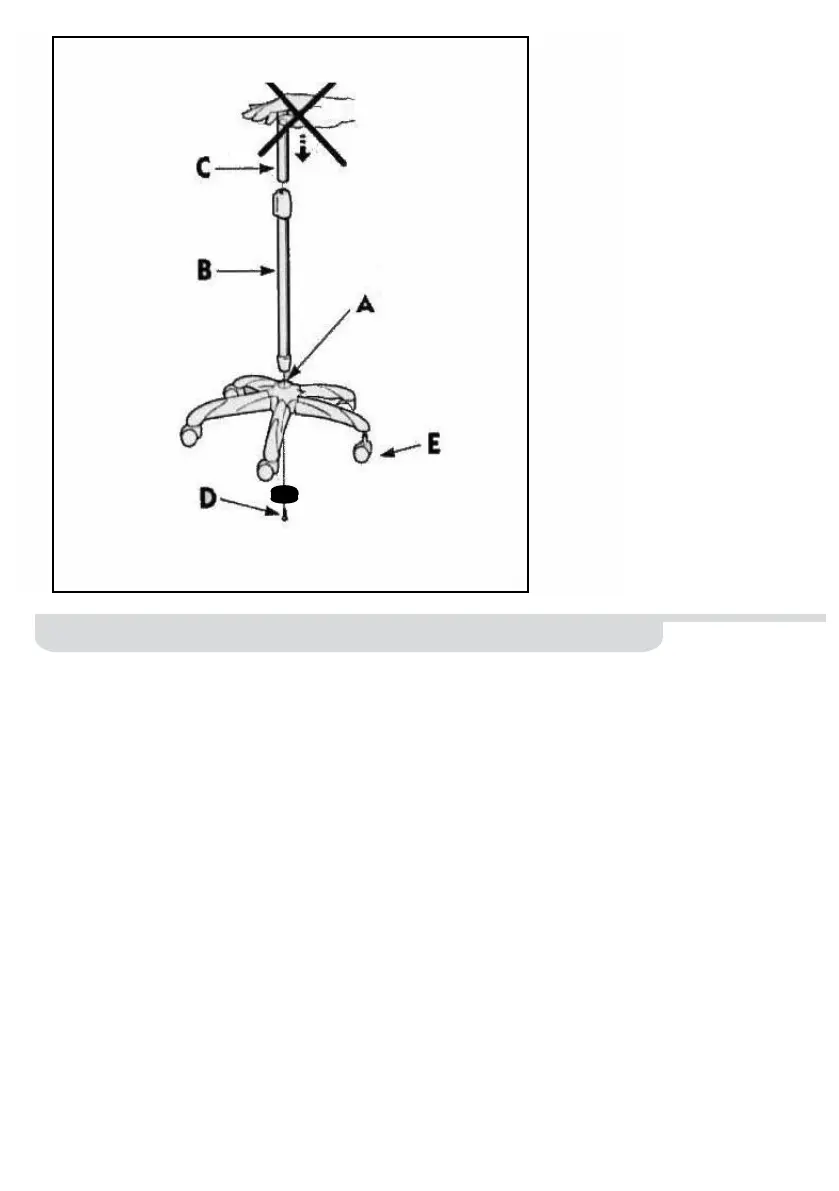

LEGEND:
A) BASE
B) SUPPORTING POLE Ø45
C) SMALL PEDESTAL Ø35
D) SCREW WITH WEIGHT
FLOOR BASE - ASSEMBLY INSTRUCTIONS
• lnsert the 5 spokes (E) in the central hub (A).
• Introduce the supporting pole (B) into its housing at the top of the cen-
tral base (A) then secure it by tightning the screw with the weight and
the washer (D) at the bottom.
• Loosen the plastic sleeve of the pedestal (B) turning it counterclockwise.
lnsert the small pedestal (C) resting it in the socket without to compress
the spring inside the pedestal (B). Fasten the small pedestal (C) on, tur-
ning the sleeve clockwise.
• lnsert the articulated joint of the appliance onto the stud (C) and regula-
te its height turning the sleeve as described at second paragraph.
