CERTIFIED 060-0740-4 - Grass Collection Bag Assembly

16
model no. 060-0740-4
6) Attach the cable clips (2) provided, to
the upper and lower handle. Insert the
cable into the clips ensuring there is
enough cable slack. (Fig. A5)
GRASS COLLECTION BAG ASSEMBLY

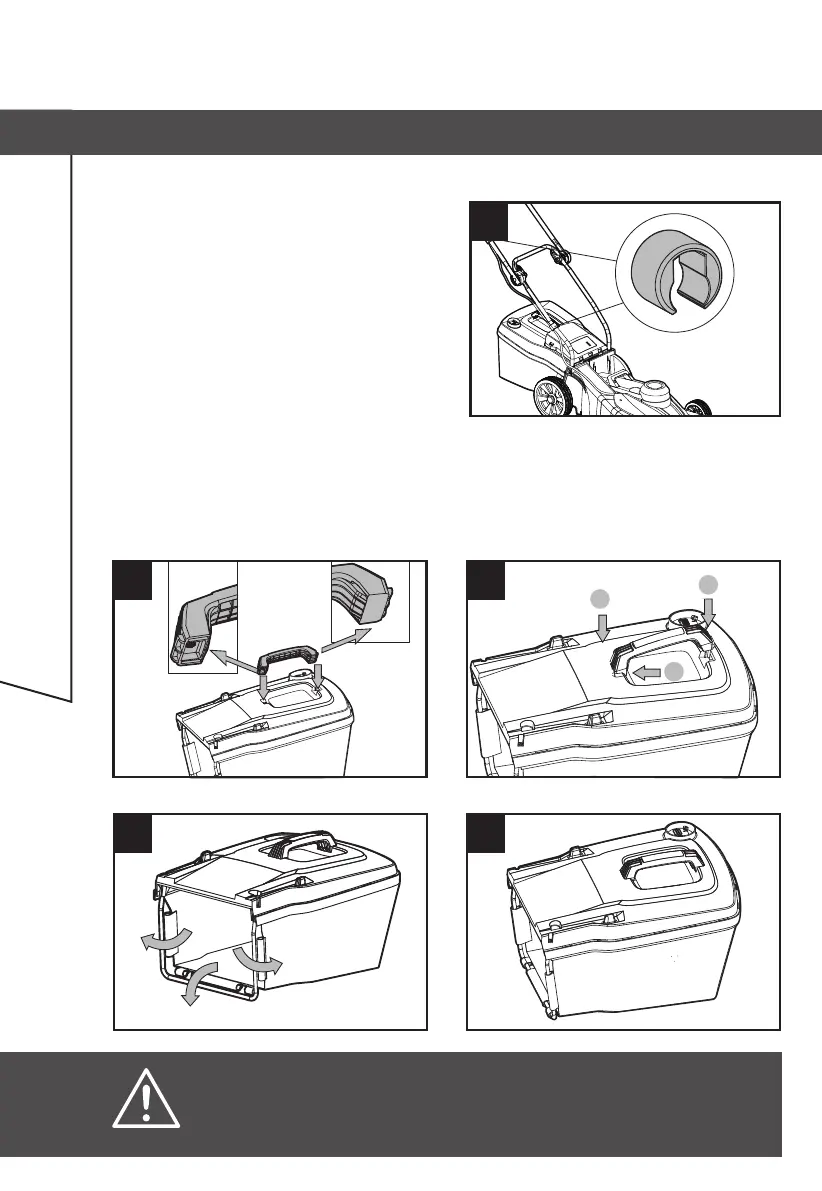

Connect the grass collection bag handle to the
bag top as shown in Fig. B1-B4.
Step 1. Press the front of the handle
briefly. (Fig. B2)
Step 2. Then push it forward. (Fig. B2)
Step 3. Push down the back of the handle. (Fig. B2)
Step 4. Finally, clip the plastic clips over the metal frame. (Fig. B3)
1
2
A1
A2
A3
A4
A5
Front Part
Back Part
1
2
3
B1
B3
B2
B4
WARNING: Don’t fit the handle in reversed direction. Fit the
handle as shown in Fig. B1.
