OPERATION AND INSTALLATION MANUAL
3
CERWIN-VEGA! STROKER SUBWOOFERS
2
Enclosure Information
We recommend using the following enclosure specifications (as
listed on the next three pages) to attain optimum performance:
Stroker 102/104 Optimum Enclosure (Drivers Tested 1W/1m)
Type: Bass Reflex (ported)
Box Volume: 1.2 cu ft.

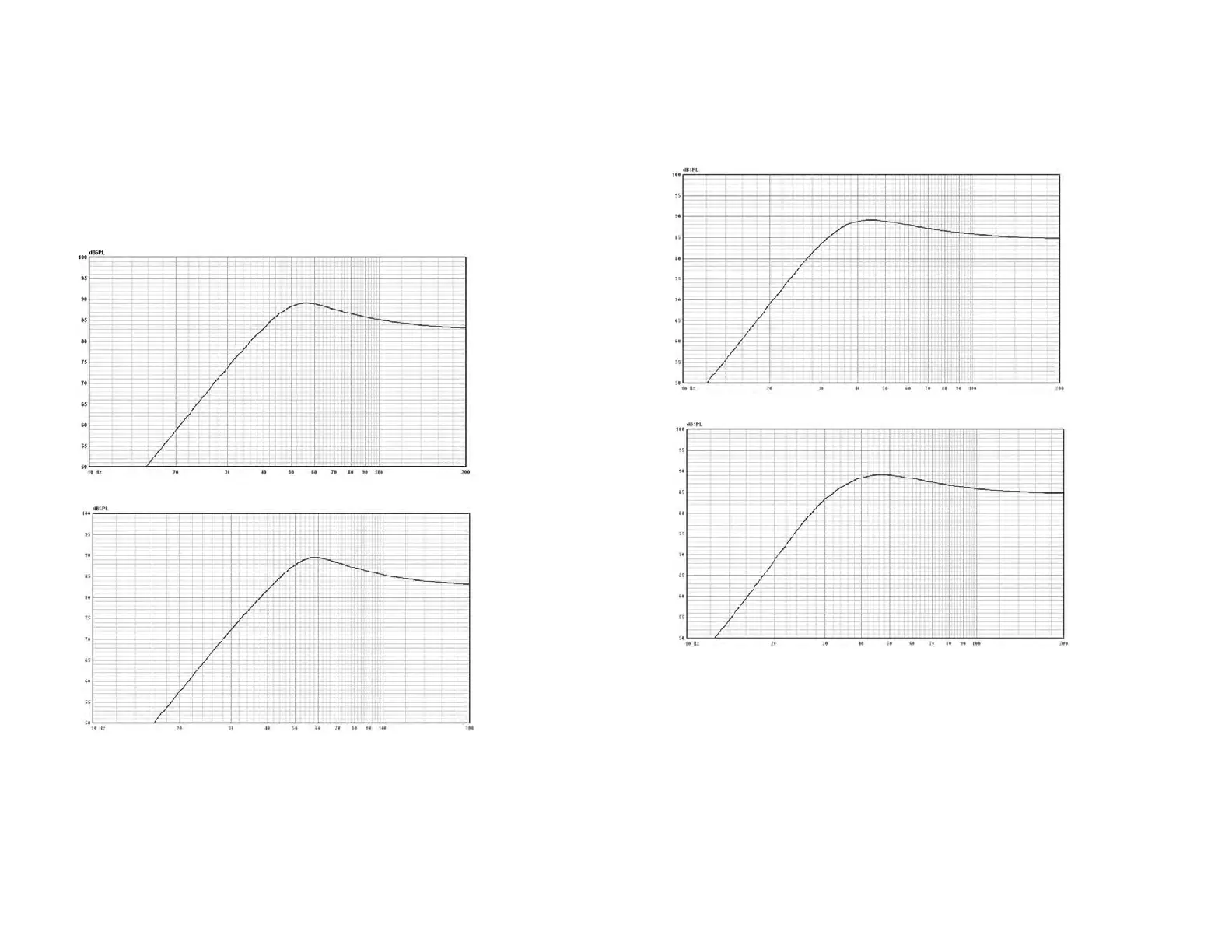

Stroker 102 Frequency Response
Stroker 104 Frequency Response
Stroker 102/104 Port Specifications
Port Area: 25.3 sq. in / Two 4” I.D. Tubes
Port Length: 11”
Port Tuning: 49hz
Stroker 122/124 Optimum Enclosure
(Drivers Tested 1W/1m)
Type: Bass Reflex (ported)
Box Volume: 2.3 cu ft.
Stroker 122 Frequency Response
Stroker 124 Frequency Response
Stroker 122/124 Port Specifications
Port Area: 36.8 sq. in / Two 5” I.D. Tubes
Port Length: 15”
Port Tuning: 36hz
