;ECTION
7
URPLANE
&
SYSTEMS
DESCRIPTIONS
STANDARD
SHOULDER
HARNESS
~ARRON
RELEASE
STRAP
'.Pull
up
when
lengthening
iaroess)
PREE END
OF
HARNESS
',Pull down
to
lighten)
IHOULDER
HARNESS---~
;ONNECTING LINK
Snap onto
retaining
stud
on
1eat
belt
link
to
attach
harness)
IEAT
BELT
BUCKLE
HALF
Non
adjustable)
(''
1·,
..........
\
-----.,.
\~~~~
EAT
BELT
LINK HALF
.ND
SHOULDER HARNESS
lETAINING STUD
'REE
END
OF
SEAT
BELT
Pull
to
llghtea)
SEAT
BELT
BUCKLE
(Non
adjustable)
SEAT
BELT/SHOULDER
HARNESS
ADJUST
ABLE
LINK
(Position
link
just
below
shoulder
level;
pull
link
and
harness
down-
ward
to
connect
to
seat
belt
buckle)
CESSNA
MODEL
152
{PILOT'S
SEAT
SHOWN)
SEAT BELT
/SHOULDER
HARNESS
WITH
INERTIA
REEL

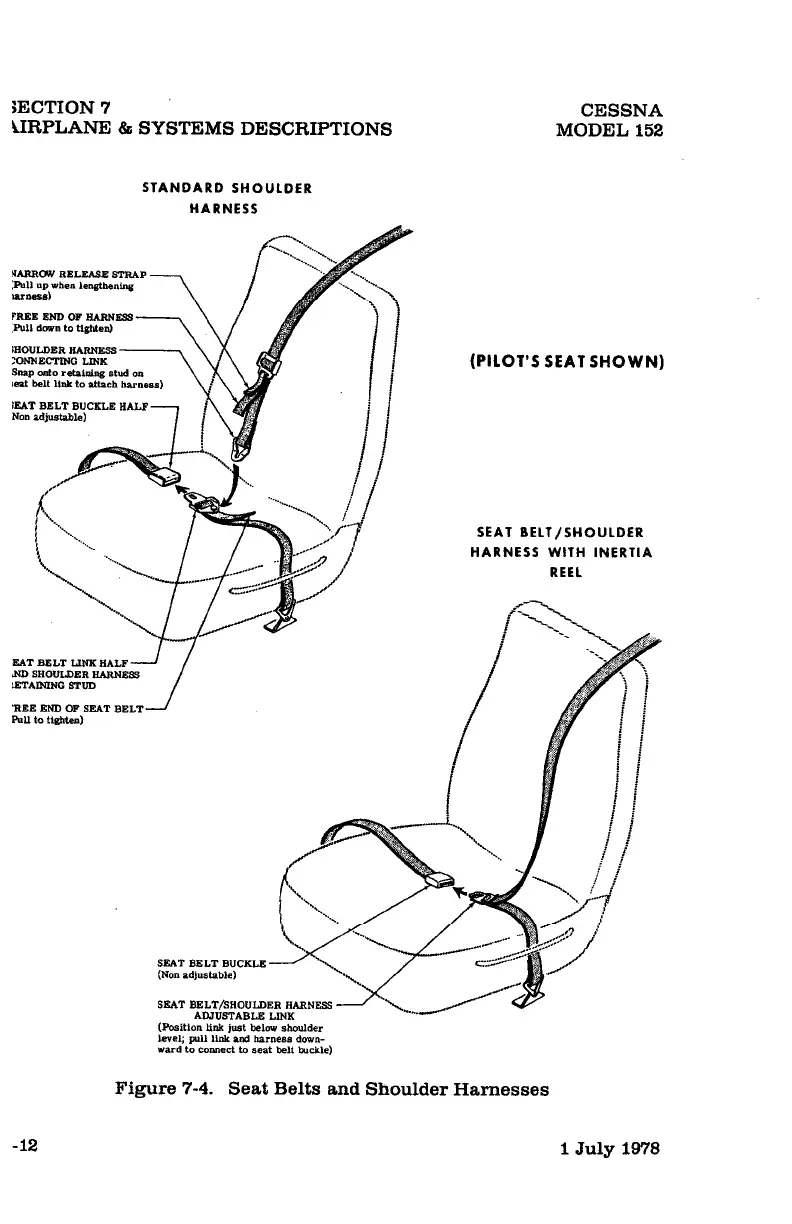

Figure
7-4.
Seat
Belts
and
Shoulder
Harnesses
-12 1
July
1978
