CESSNA
MODEL 152
SECTION2
LIMITATIONS
POWER PLANT INSTRUMENT MARKINGS

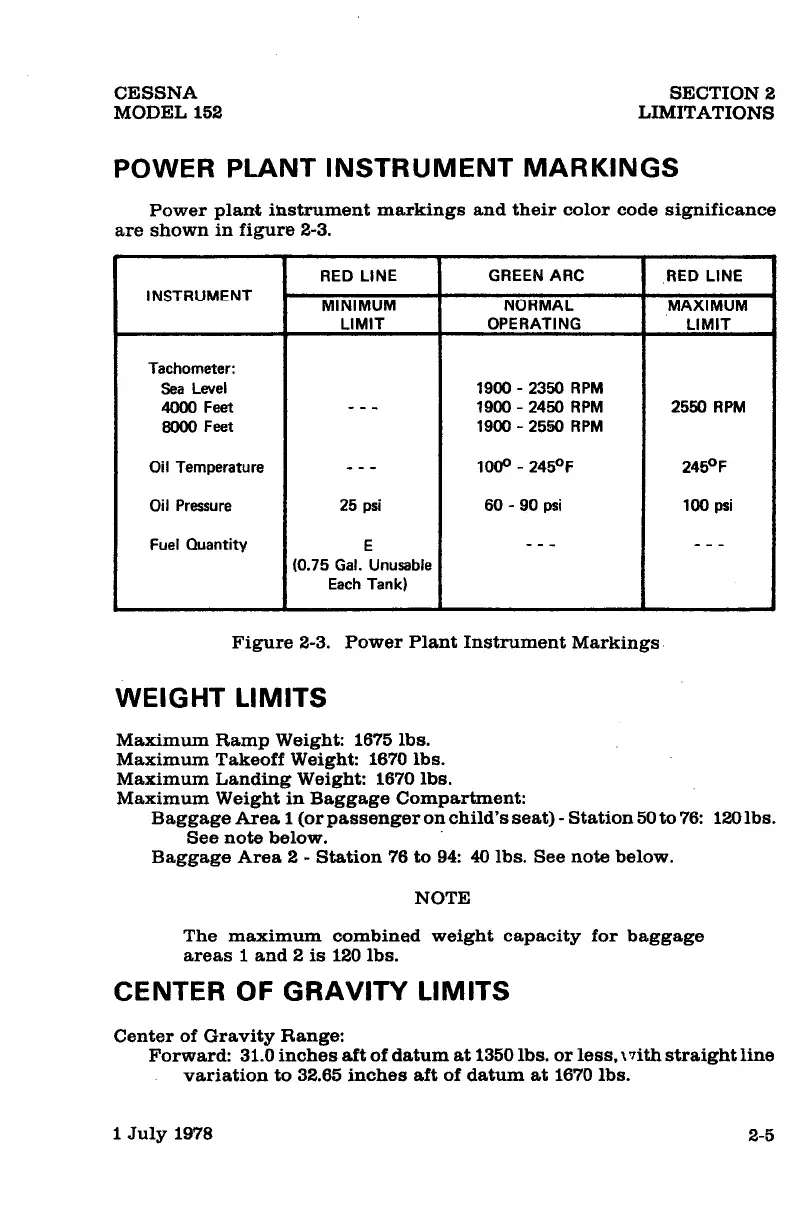

Power plant instrument markings and their color code significance
are shown in figure 2-3.
RED LINE GREEN ARC
INSTRUMENT
MINIMUM
NORMAL
LIMIT OPERATING
Tachometer:
Sea Level
1900 - 2350 RPM
4000 Feet
---
1900 - 2450 RPM
8000 Feet 1900 - 2550 RPM
Oil Temperature
-- -
1oo<> - 245°F
Oil Pressure 25 psi 60 - 90 psi
Fuel Quantity
E
- - -
(0.75 Gal. Unusable
Each Tank)
Figure 2-3. Power Plant Instrument Markings
WEIGHT LIMITS
Maximum Ramp Weight: 1675 lbs.
Maximum Takeoff Weight: 1670 lbs.
Maximum Landing Weight: 1670 lbs.
Maximum Weight in Baggage Compartment:
RED LINE
MAXIMUM
LIMIT
2550 RPM
245°F
100
psi
- - -
Baggage Area 1 ( or passenger on child's seat) - Station 50 to 76: 120 lbs.
See note below.
Baggage Area 2 - Station 76 to 94: 40 lbs. See note below.
NOTE
The maximum combined weight capacity for baggage
areas 1 and 2 is 120 lbs.
CENTER OF GRAVITY LIMITS
Center of Gravity Range:
Forward: 31.0 inches aft of datum at 1350 lbs. or less,, 7ith straight line
variation to 32.65 inches aft of datum at 1670 lbs.
