CESSNA 300 NAV/COM
(TYPE RT-385A)
PILOT'S OPERATING HANDBOOK
SUPPLEMENT
2
1:15':t-,
I I -, q ,;
I I - -
- - ~-~-~ ---
1. COMMUNICATION OPERATING FREQUENCY READOUT (Third-decimal-
place is shown by the position of the "5-0" switch).
2. 5-0 SWITCH - Part of Com Receiver-Transmitter Fractional MHz Frequency
Selector. In "5" position, enables Com frequency readout to display and Com
Fractional MHz Selector to select frequency in .05-MHz steps between .025 and
.975 MHz. In "O" position, enables COM frequency readout to display and Com
Fractional MHz Selector-to select frequency in .05-MHz steps between .000 and
.950MHz.
NOTE
The "5" or "O" may be read as the third decimal digit, which is not
displayed in the Com fractional frequency display.

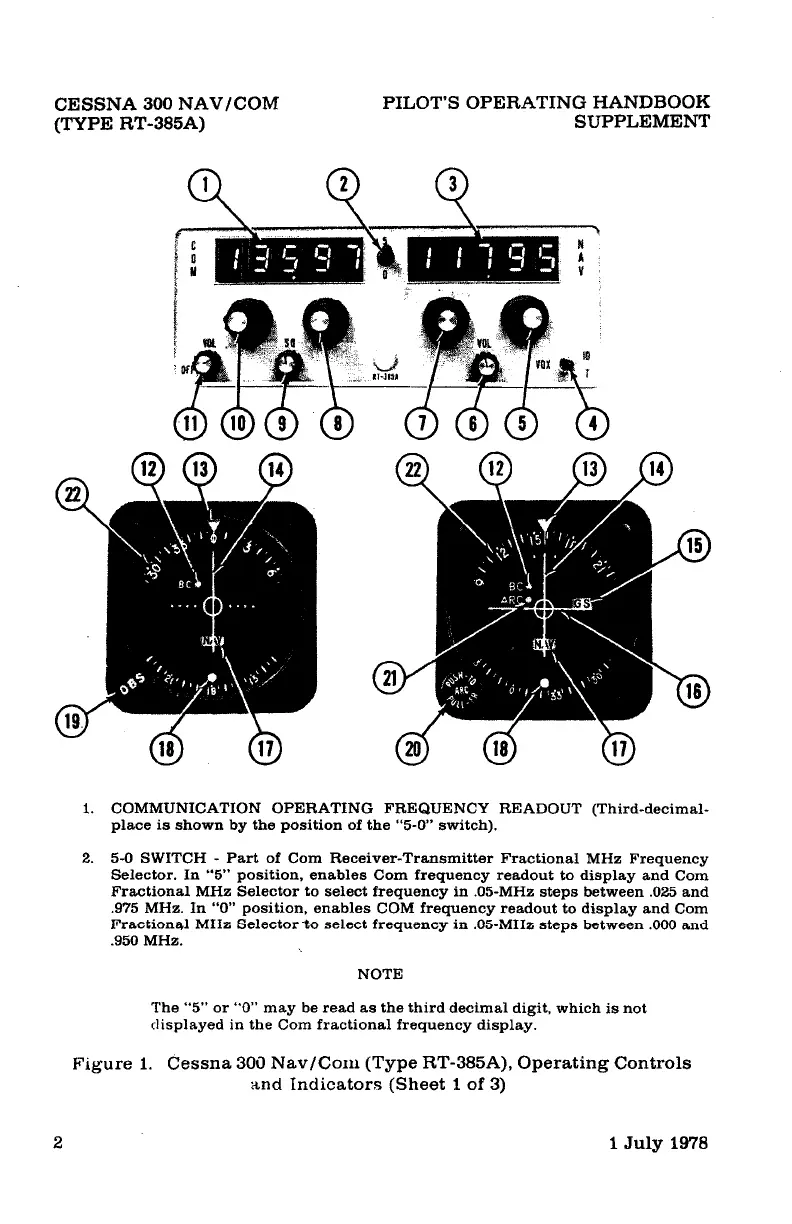

Figure 1. Cessna 300 Nav/Com (Type RT-385A), Operating Controls
a.nd IndicatorR (Sheet 1 of 3)
1 July 1978
