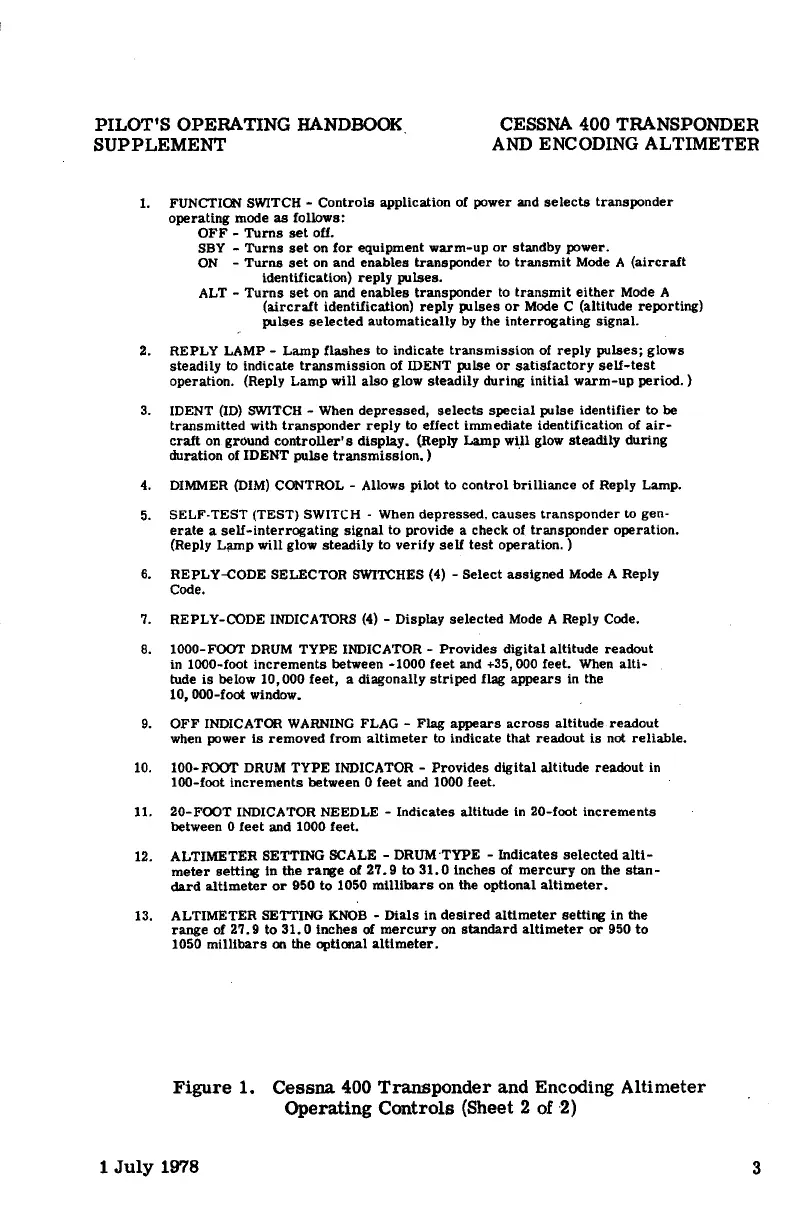

PILOT'S
OPERA TING HANDBOOK.
SUPPLEMENT
CESSNA
400
TRANSPONDER
AND ENCODING ALTIMETER
1.
FUNCTION SWITCH -
Controls
application of power and
selects
transponder
operating
mode
as
follows:
OFF
-
Turns
set
off.
SBY -
Turns
set
on
for
equipment
warm-up
or
standby power.
ON
-
Turns
set
on and
enables
transponder
to
transmit
Mode A
(aircraft
identification)
reply
pulses.
ALT -
Turns
set
on and
enables
transponder
to
transmit
either
Mode A
(aircraft
identification)
reply
pulses
or
Mode C (altitude
reporting)
pulses
selected
automatically
by the
interrogating
signal.
2.
REPLY
LAMP -
Lamp
flashes
to
indicate
transmission
of
reply
pulses;
glows
steadily
to
indicate
transmission
of IDENT
pulse
or
satisfactory
self-test
operation.
(Reply
Lamp
will
also
glow
steadily
during
initial
warm-up
period.)
3.
!DENT
(ID)
SWITCH - When
depressed,
selects
special
pulse
identifier
to be
transmitted
with
transponder
reply
to
effect
immediate
identification of
air-
craft
on
ground
controller's
display.
(Reply
Lamp
will
glow
steadily
during
duration
of IDENT
pulse
transmission.
)
4. DIMMER
(DIM)
CONTROL - Allows
pilot
to
control
brilliance
of
Reply Lamp.
5.
SELF-TEST
(TEST) SWITCH - When
depressed,
causes
transponder
to gen-
erate
a
self-interrogating
signal
to
provide
a
check
of
transponder
operation.
(Reply L;unp
will
glow
steadily
to
verify
self
test
operation.)
6.
REPLY-CODE SELECTOR SWITCHES (4) -
Select
assigned
Mode A
Reply
Code.
7. REPLY-CODE INDICATORS
(4) -
Display
selected
Mode A Reply Code.
8. 1000-FOOT
DRUM
TYPE
INDICATOR -
Provides
digital
altitude
readout
in 1000-foot
increments
between
-1000
feet
and +35, 000 feet. When
alti-
tude
is
below
10,000
feet,
a
diagonally
striped
flag
appears
in the
10, 000-foot window.
9.
OFF
INDICATOR WARNING FLAG -
Flag
appears
across
altitude
readout
when power
Is
removed
from
altimeter
to
indicate
that
readout
is
not
reliable.
10. 100-FOOT DRUM
TYPE
INDICATOR -
Provides
digital
altitude
readout
in
100-foot
increments
between O
feet
and 1000 feet.
11.
20-FOOT
INDICATOR NEEDLE -
Indicates
altitude
In
20-foot
increments
between O
feet
and 1000 feet.
12.
ALTIMETER
SETTING SCALE - DRUM·TYPE -
Indicates
selected
alti-
meter
setting
in
the
range
of
27.
9
to
31.
0
inches
of
mercury
on
the
stan-
dard
altimeter
or
950
to
1050
millibars
on
the
optional
altimeter.
13. ALTIMETER SETTING KNOB -
Dials
in
desired
altimeter
setting
in
the
range
of 27. 9
to
31. 0
inches
of
mercury
on
standard
altimeter
or
950
to
1050
millibars
on
the
optional
altimeter.
Figure
1.
Cessna
400
Transponder
and
Encoding
Altimeter
Operating
Controls
(Sheet 2 of 2)
1
July
1978 3
