Cessna 152 - Page 8

SECTION
1
GENERAL
•------10'-0"----
NOTES:
CESSNA
MODEL 152
1.
Wing
span shown with conical camber wing
tips and strobe
lights
installed. If standard
wing tips without strobe lights are installed,
wing
span
is
32' • 8 1
/2".
Maximum height shown with nose gear
depressed, all tires and nose
strut
prop•
erly inflated and flashing beacon installed.
3.
Wheel
base
length
is
58".
4.
Propeller ground clearance
is
12".
5.
Wing
area
is
159 1/2 square feet.
------33'-4"------+-1•1

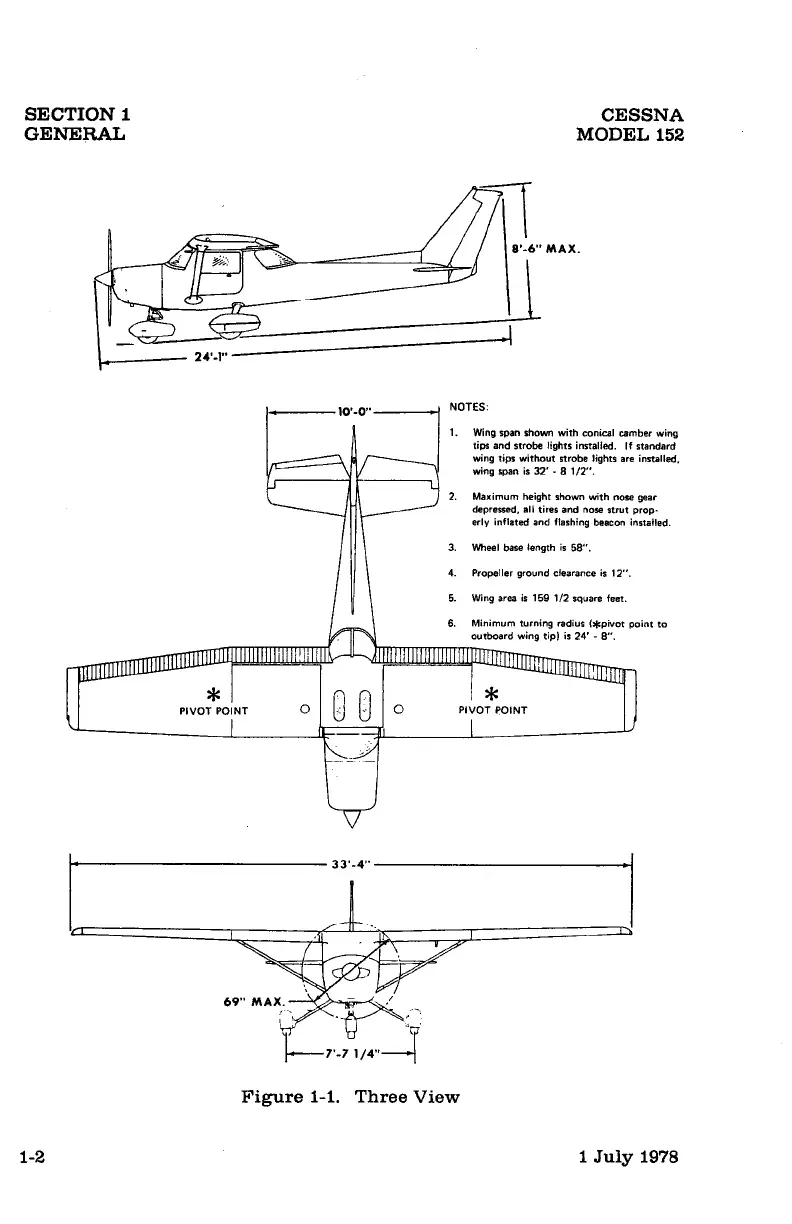

Figure
1-1.
Three
View
1-2 1
July
1978
