1-8

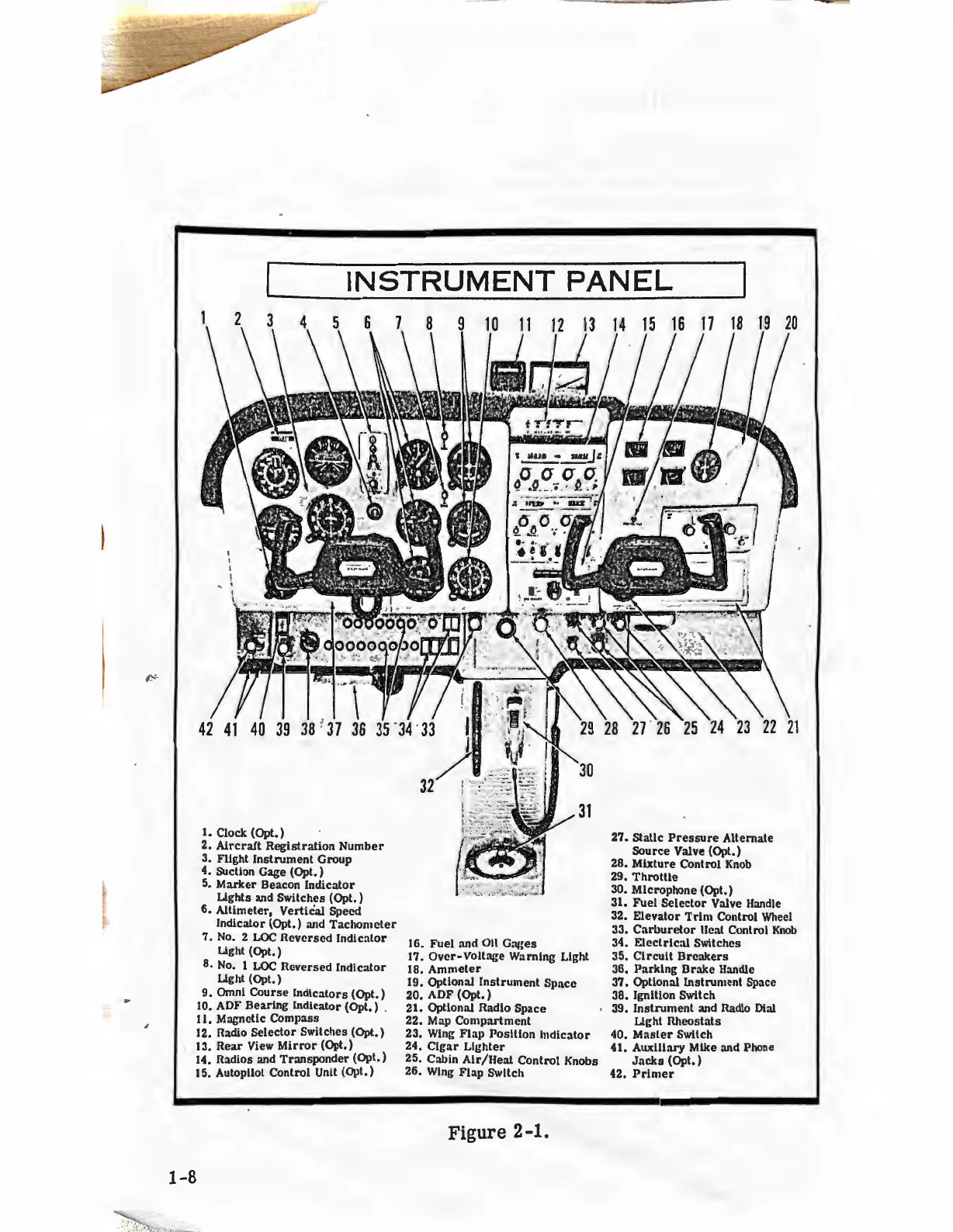

INSTRUMENT
PANEL
2
42
41
1. Clock (Opt.)
2.
Aircraft
Registration
Number
3. Flight
Instrument
Group
4. Suction Gage (Opt.)
5.
Marker
Beacon Indicator
Lights and Switches (Opt.)
6. Altimeter, Vertical Speed
Indicator (Opt.) and
Tachometer
7.
No.
2
LOC
Reversed Indicator
Light (Opt.)
8.
No.
1
LOC
Reversed Indicator
Light (Opt.)
9.
Omni Course Indicators (Opt.)
10. ADF Bearing Indicator (Opt.) .
11. Magnetic Compass
12. Radio Selector Switches (Opt.)
13. Rear
View
Mirror
(Opt.)
14. Radios and
Transponder
(Opt.)
15. Autopilot Control Unit (Opt.)
32
31
16. Fuel and Oil Gages
17.
Over-Voltage
Warning Light
18.
Ammeter
19. Optional
Instrument
Space
20. ADF (Opt.)
21. Optional Radio Space
22. Map Compartment
23.
Wing
Flap
Posllion
Indicator
24.
Cigar
Lighter
25. Cabin
Air/Heal
Control Knobs
26.
Wing
Flap
Switch
Figure 2-1.
19
20
27. Static
Pressure
Alternate
Source Valve (Opt.)
28. Mixture Control
Knob
29.
Throttle
30. Microphone (Opt:)
31.
Fuel
Selector
Valve
Handle
32. Elevator
Trim
Control
Wheel
33.
Carburetor
Ilea! Control
Knob
34. Eleclrlc:ll Switches
35.
Circuit
Breakers
36. Parking Drake Handle
37. Optional Instrument Space
38. Ignition Switch
39
.
Instrument
and Radio Dial
Light Rheostats
40.
Master
Switch
41. Auxiliary Mike and Phone
Jacks
(Opl.)
42.
Primer
