CESSNA
MODEL
172N
SECTION
7
AIRPLANE
&
SYSTEMS
DESCRIPTIONS
STANDARD
SHOUTDER
HARNESS
(Pt[oT's
sEAT
SHOWN)
(Nonadjustable,
1
NARROW RELEASE STNAP
(Pull
up
when
lengthening
har ness)
FREE END OF HARNESS
(PuII
down to tighten)
SHOULDER HARNESS
CONNECTING LINK
(Snap
onto
retaining
stud on
seat
belt link to attach barness)
SEAT BELT BUCKLE HALF-
SEAT
BELT LINK
HALF
SEAT BEtT/SHOUtDER
HARNESS WITH INERTIA
REEt
AND
SHOULDER
HARNESS
RETAINING
STI,ID
FREE END OF
SEAT
BELT
(PuU
to tighten)
SEAT
BELT/SHOULDER
HARNESS
ADJUSTABLE LINK
(Position
tink
Just
below shoulder
level;
pull
link
and harness down-
ward to connect to
seat
belt
buckle)
SEAT
BELT
BUCKLE
(Non
adjustable)

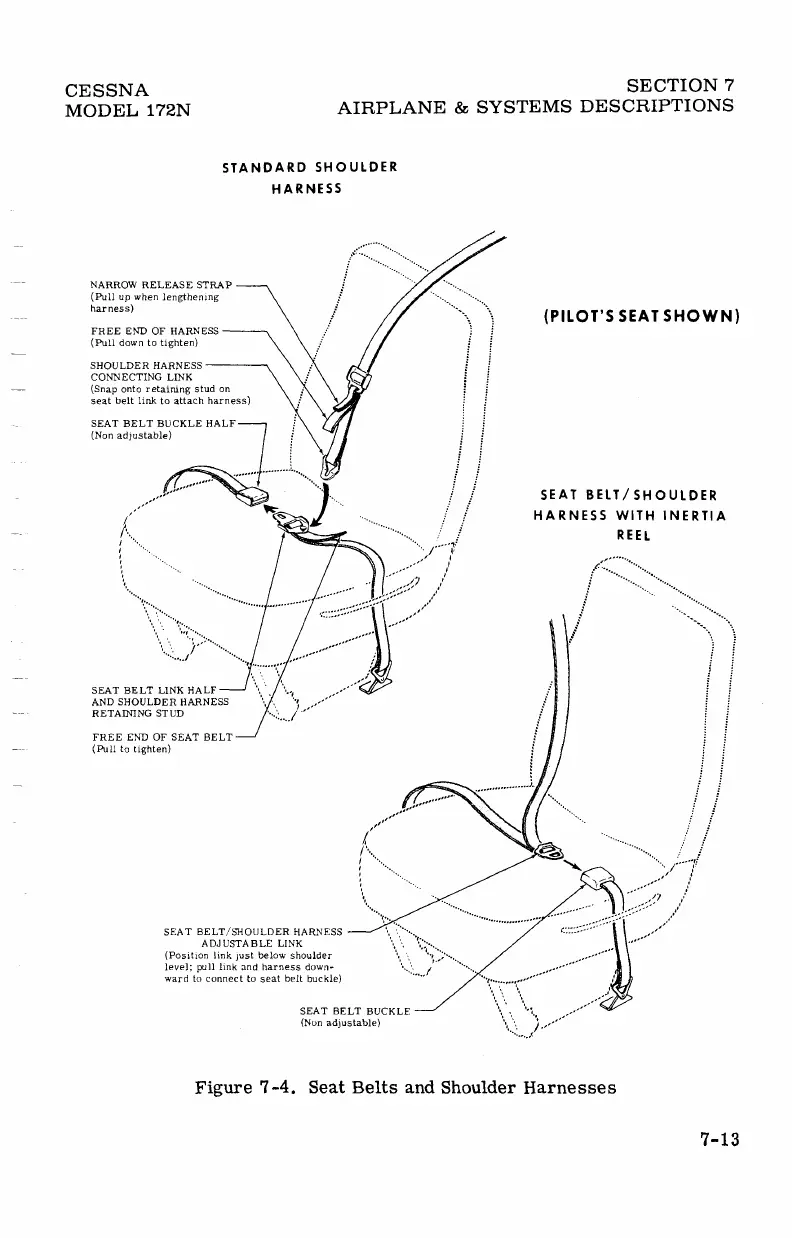

Figure
?-4. Seat Belts and
Shoulder
Harnesses
7-13
